13INSTRUMENT PANEL AND CONTROLS

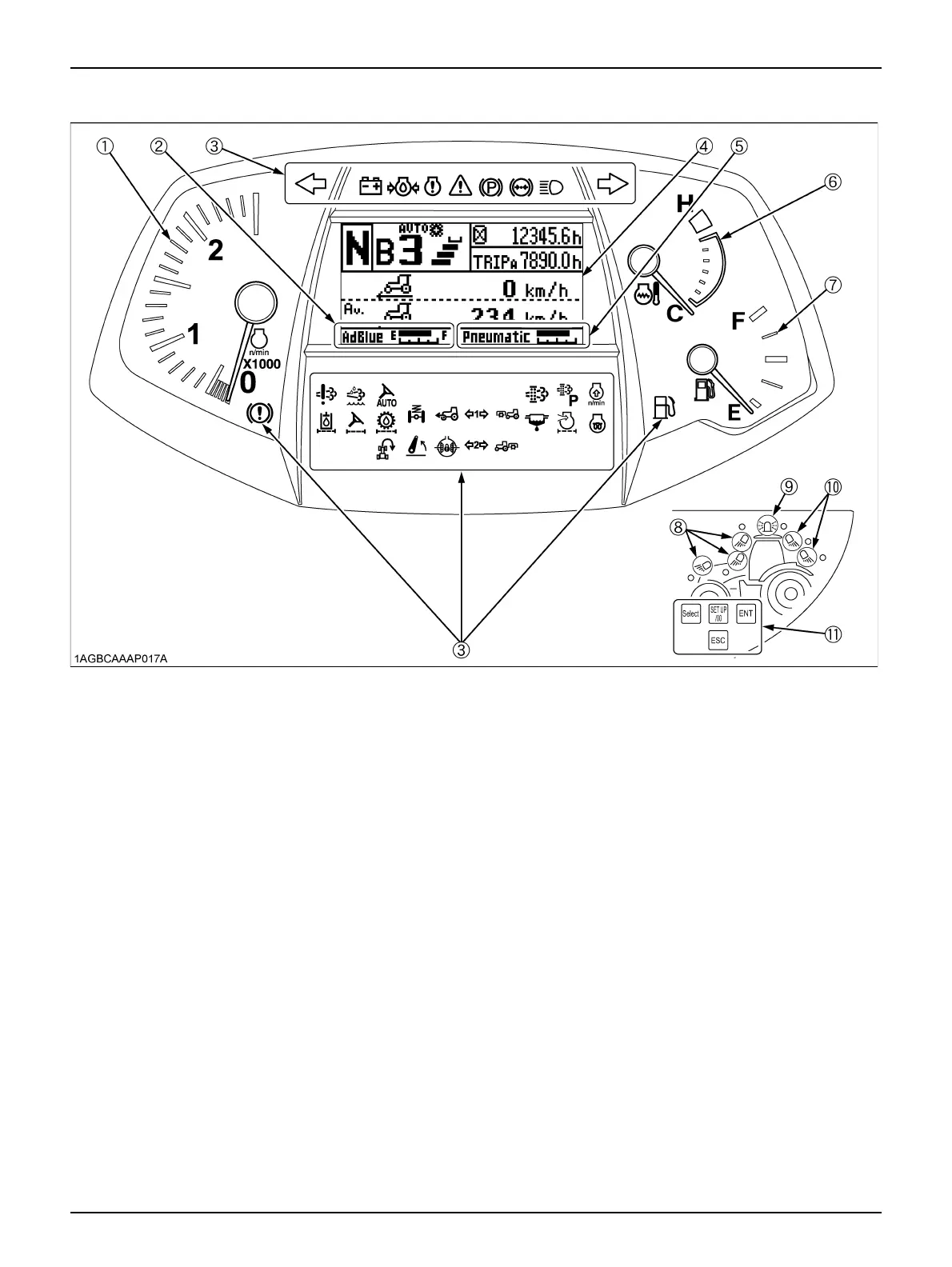

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Tachometer ......................................................... 132 (7) Fuel gauge ........................................................... 131
(2) DEF/AdBlue® gauge ........................................... 131 (8) Front work light switch .......................................... 102
(3) Indicator ............................................................... 35, 129 (9) Beacon light switch .............................................. 102
(4) Liquid crystal display ............................................ 22 (10) Rear work light switch ........................................ 102
(5) Pneumatic pressure gauge (if equipped) .............. 131 (11) Display switch..................................................... 24
(6) Coolant temperature gauge ................................. 132
