INTELLIPANEL(TM) CONTROL48
BSetting the Drivability
The differential lock, front wheel drive and front suspension settings can be made.
C Setting the differential lock
1. Touch the left half of the differential lock switch (7),
and the differential of the full-time front and rear
wheels gets locked. The indicator (1) lights up and
stays on.
Turn off the switch (7), and the differential gets
unlocked and the indicator (1) goes off.
2. Touch the left half of the auto differential lock switch
(8), and the automatic differential, listed below, gets
locked. The indicator (2) lights up and stays on.
Turn off the switch (8), and the differential gets
unlocked and the indicator (2) goes off.
A Operating conditions of the automatic differential
lock:
C Setting the front wheel drive
1. Touch the left half of the 4WD switch (9), and the front
and rear wheels are driven. The indicator (3) lights up
and stays on.
Turn off the switch (9), and the front-wheel drive is
disabled and the indicator (3) goes off.
2. Touch the left half of the auto 4WD switch (10), and the
automatic 4WD, listed below, gets activated. The
indicator (4) lights up and stays on.
Turn off the switch (10), and the 2WD is abled and the
indicator (4) goes off.
A Operating conditions of the automatic 4WD:

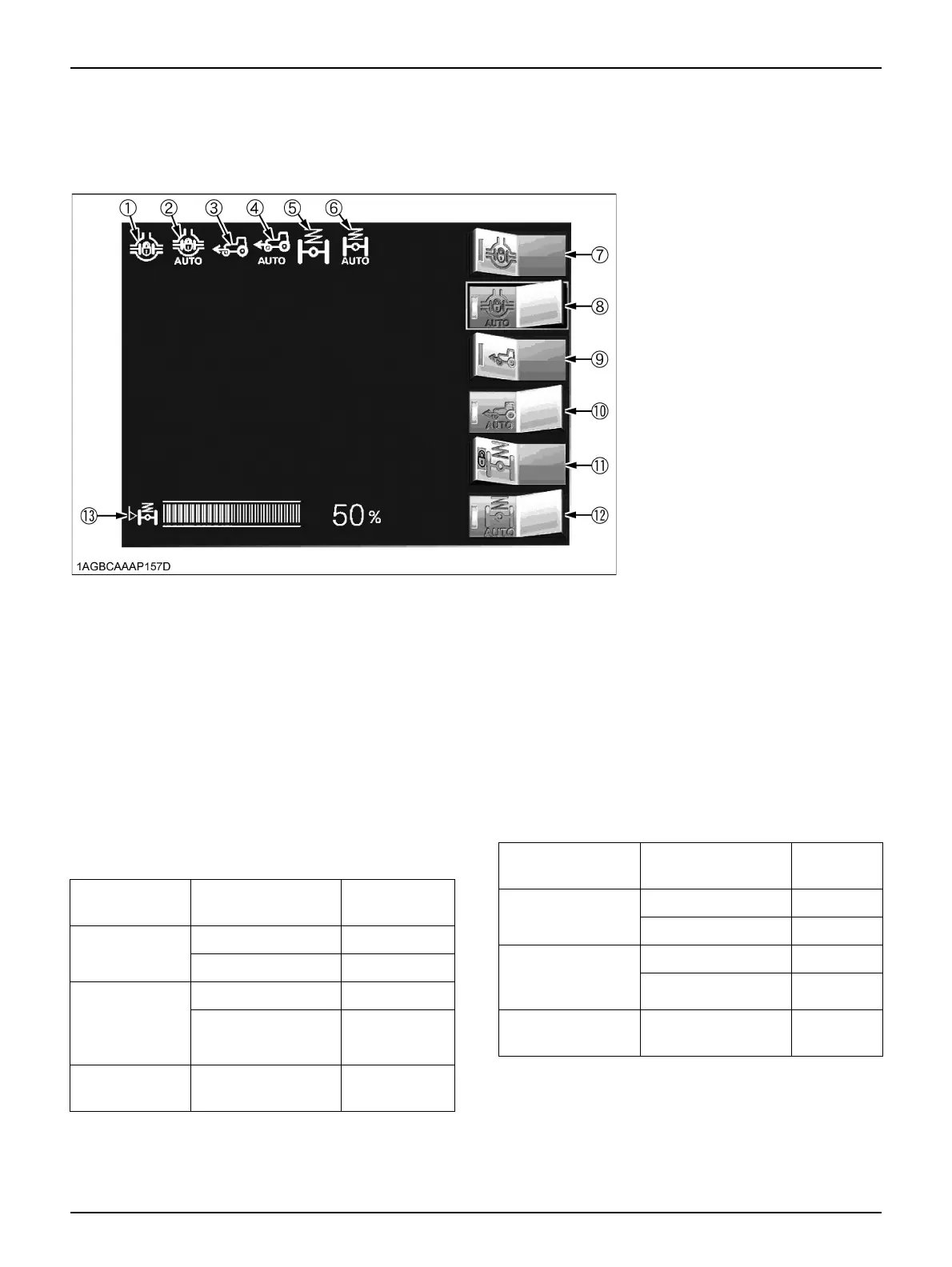

(1) Differential lock indicator
(2) Auto differential lock indicator
(3) 4WD indicator
(4) Auto 4WD indicator
(5) Front suspension (active) indicator
(6) Front suspension (auto) indicator
(7) Differential lock switch
(8) Auto differential lock switch
(9) 4WD switch
(10) Auto 4WD switch
(11) Front suspension (block) switch
(12) Front suspension (auto) switch
(13) Front suspension level meter
Traveling speed
Front wheel turning
angle
4-wheel
differential lock
Below 10 km/h
(6.2 mph)
Approx. 15º or less ON (*1)
Approx. 15º or more OFF
Between 10 and
20 km/h (6.2
and 12.4 mph)
or so
Approx. 10º or less ON (*1)
Approx. 10º or more OFF
Above 20 km/h
(12.4 mph)
--- OFF
(*1): Step on one of the brake pedals, and the differential
lock is released.
Traveling speed
Front wheel turning
angle
Front wheel
drive
Below 10 km/h (6.2
mph)
Approx. 15º or less ON
Approx. 15º or more OFF
Between 10 and 20
km/h (6.2 and 12.4
mph) or so
Approx. 10º or less ON
Approx. 10º or more OFF
Above 20 km/h
(12.4 mph)
--- OFF
To Next Page
