12 INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS

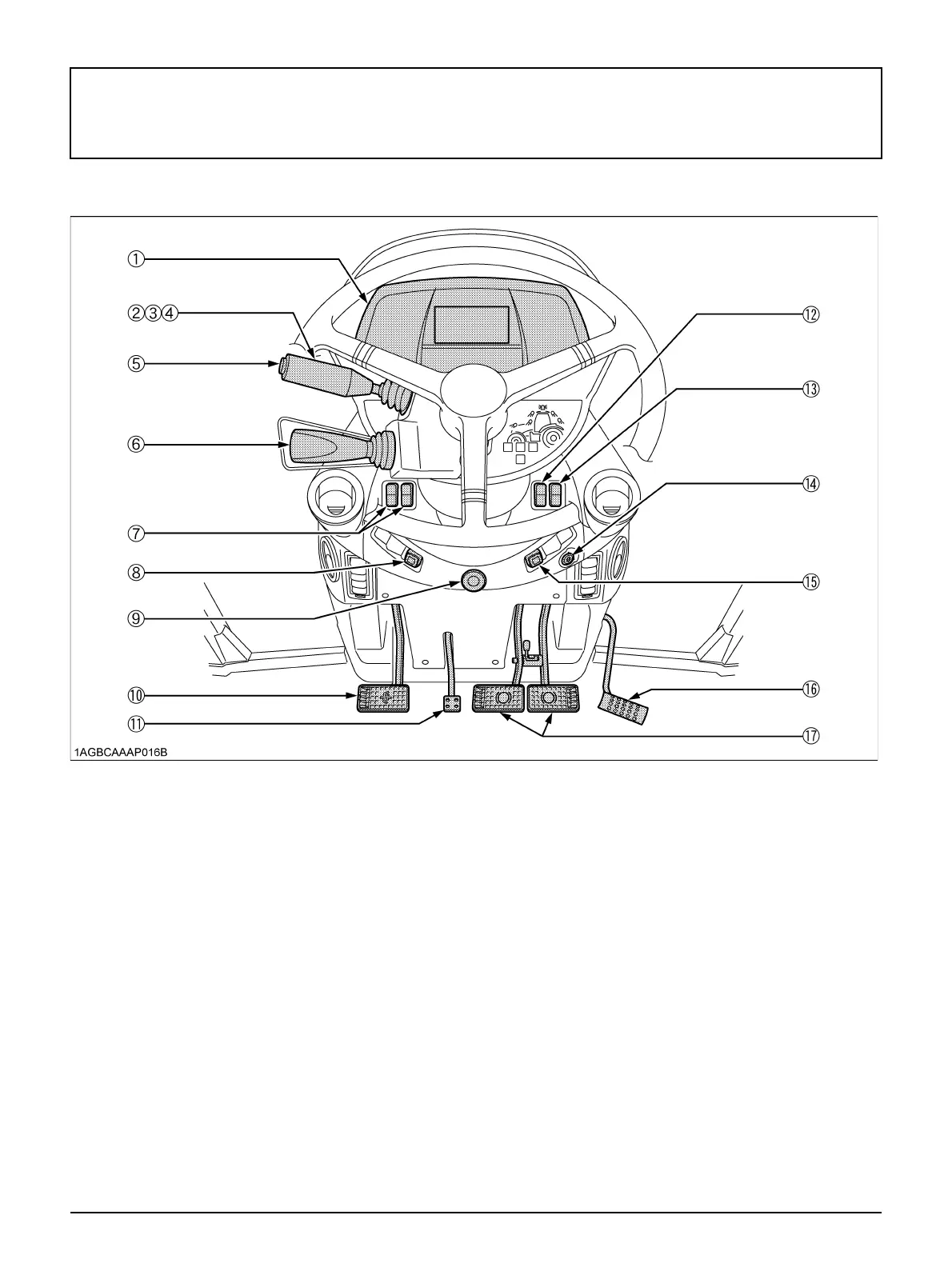

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Instrument panel ................................................. next page (10) Clutch pedal ....................................................... 105
(2) Turn signal light switch ......................................... 101 (11) Steering wheel tilt/telescope pedal .................... 98
(3) Front wiper/washer switch .................................... 187 (12) Battery switch .................................................... 86
(4) Headlight beam selection switch .......................... 100, 100 (13) Rear wiper/washer switch .................................. 187
(5) Horn button .......................................................... 101 (14) Key switch .......................................................... 87
(6) Shuttle lever ......................................................... 106 (15) Parked regeneration switch ................................ 81
(7) Light switch .......................................................... 100, 100 (16) Foot throttle ........................................................ 106
(8) DPF INHIBIT switch ............................................. 79 (17) Brake pedal ........................................................ 103
(9) Hazard light switch ............................................... 101
To Next Page
