S-41
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE
(7) Electronic Governor

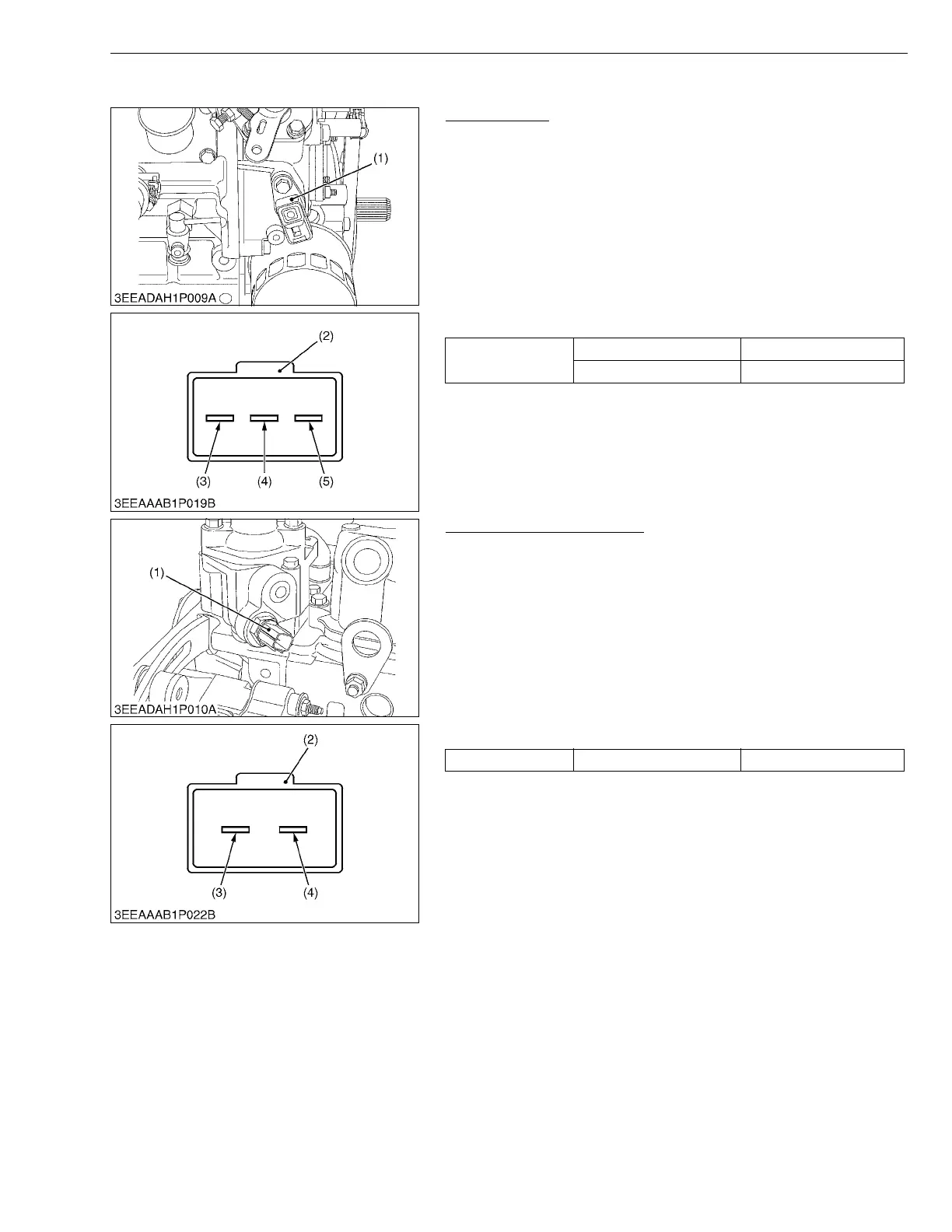

Speed Sensor
1. Disconnect the speed sensor connector (2) (3P).
2. Check the state of the harness and if it is abnormal, please
replace it.
3. Turn the key switch to the ACC position.
4. Measure the voltage between the terminals of the connector (2)
(harness side).
5. When the measurements are the below table value.
The ECU is normal. The speed sensor (1) is failure, then please
replace it.
6. When the measurements are out of the below table value.
The ECU is failure, then please replace it.
W1058552
Water Temperature Sensor
1. Disconnect the water temperature sensor connector (2) (2P).
2. Check the state of the harness and if it is abnormal, please
replace it.
3. Turn the key switch to the ACC position.
4. Measure the voltage between the terminals of the connector (2)
(harness side).
5. When the measurements are the below table value.
The ECU is normal. The water temperature sensor (1) is failure,
then please replace it.
6. When the measurements are out of the below table value.
The ECU is failure, then please replace it.
W1059499
Voltage
Ter mina l 1 - Terminal 3 12 V
Ter mina l 1 - Terminal 2 5 V
(1) Speed Sensor
(2) Speed Sensor Connector
(Harness Side)
(3) Terminal 3 (+)
(4) Terminal 2 (Signal)
(5) Terminal 1 (GND)
Voltage Terminal 1 - Terminal 2 5 V
(1) Water Temperature Sensor
(2) Water Temperature Sensor
Connector (Harness Side)
(3) Terminal 2 (−)
(4) Terminal 1 (+)
To Next Page
