M-5
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE
3. FUEL SYSTEM
[1] GOVERNOR
The governor serves to keep engine speed constant
by automatically adjusting the amount of fuel supplied to
the engine according to changes in the load. This engine
employs an all-speed governor which controls the
centrifugal force of the steel ball (1) weight, produced by
rotation of the fuel camshaft (5), and the tension of the
governor spring 1 (7) and 2 (8) are balanced.
W1017186

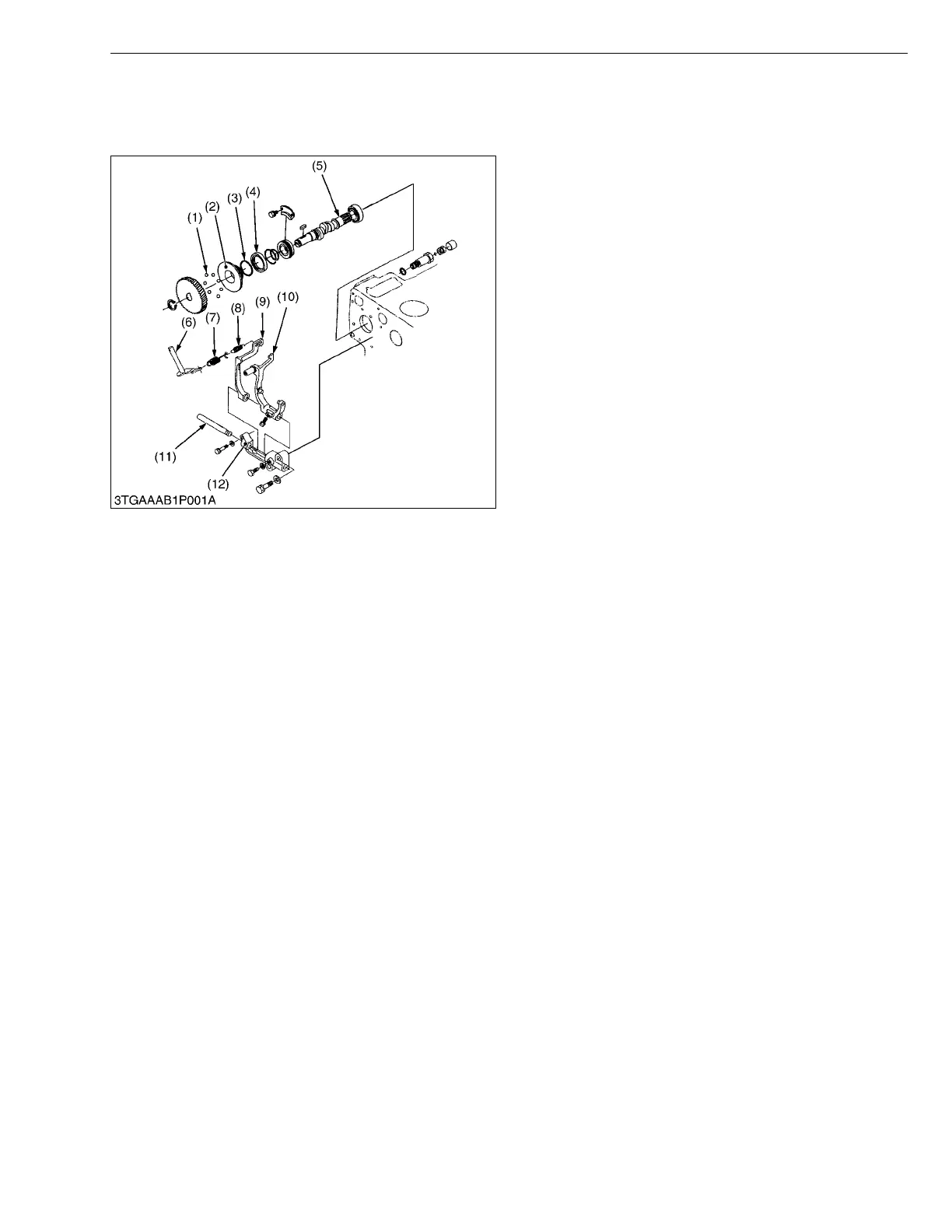

(1) Steel Ball
(2) Governor Sleeve
(3) Steel Ball
(4) Governor Ball Case
(5) Fuel Camshaft
(6) Governor Lever
(7) Governor Spring 1
(8) Governor Spring 2
(9) Fork Lever 2
(10) Fork Lever 1
(11) Fork Lever Shaft
(12) Fork Lever Holder
To Next Page
