S-54
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE
(4) Gear Case and Timing Gears
Injection Pump (for Non Turbocharger Model)

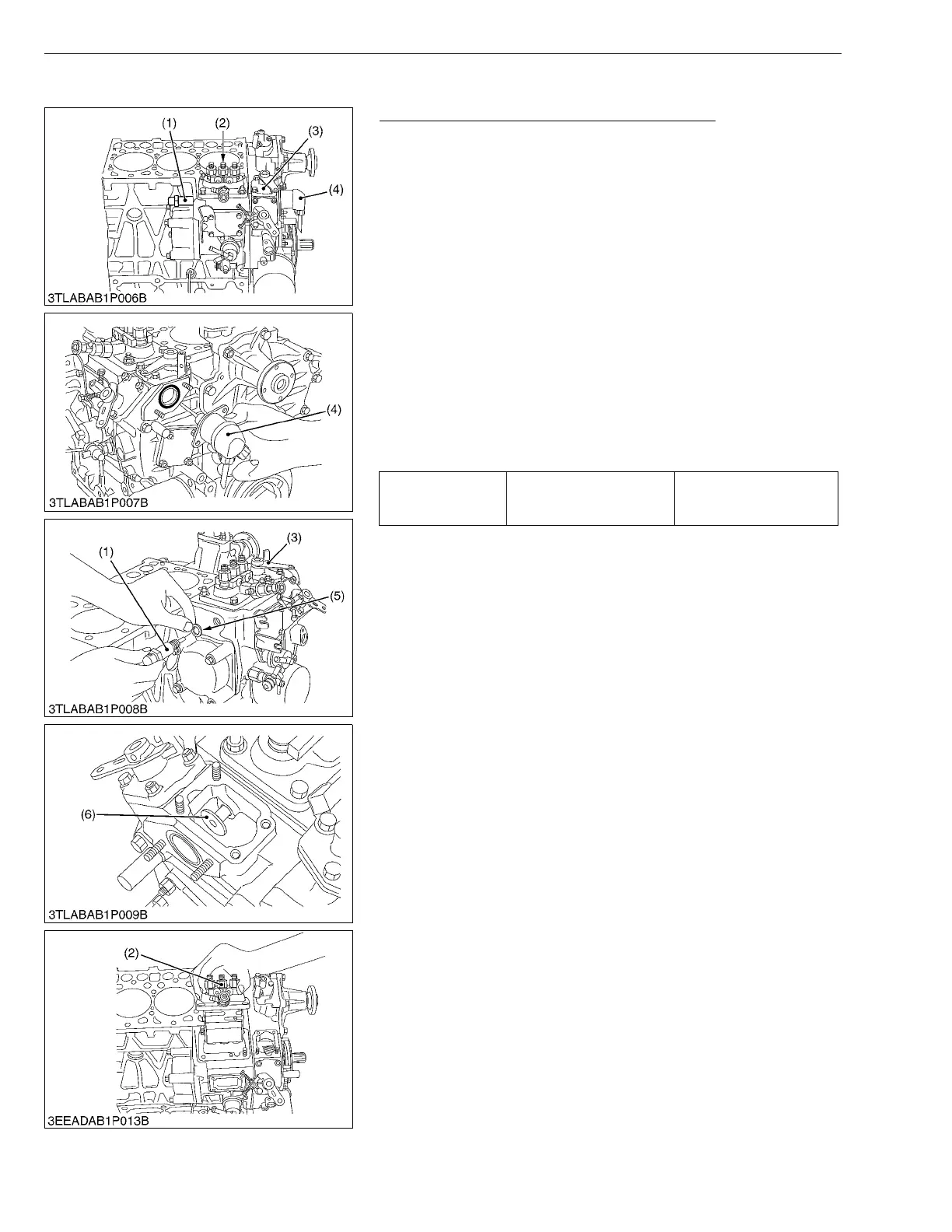

1. Remove the solenoid (4) and hi-idling body (1).
2. Remove the engine stop lever (3) and solenoid guide (6).
3. Remove the fuel injection pump assembly (2).
IMPORTANTQ
• Before removing the injection pump assembly (2), be sure to
remove the solenoid (4), hi-idling body (1), engine stop lever
(3) and solenoid guide (6).
(When reassembling)
• Before attaching the solenoid (4), hi-idling body (1) and solenoid
guide (6), install the injection pump first into position.
• Replace the hi-idling body gasket (5) with a new one.
• Before fitting the stop lever (3) to the gear case, install the
solenoid guide (6) first into position. Then attach the stop lever
and use it to see if it functions well.
• When installing the solenoid (4), be careful to keep the O-ring in
place.
• Be sure to insert the push rod of the solenoid into the hole at the
center of the solenoid guide (6).
W1023686
Tightening torque Hi-idling body
45 to 49 N·m
4.5 to 5.0 kgf·m
33 to 36 lbf·ft
(1) Hi-idling Body
(2) Injection Pump Assemply
(3) Stop Lever
(4) Slenoid
(5) Hi-idling Body Gasket
(6) Solenoid Guide
