S-47
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE
Turbocharger (equipped with Turbocharger Model)
CAUTION
• While the engine is running and or just after it stops, the
turbocharger is hot, be careful not to touch the
turbocharger.
NOTEQ
• When detaching and attaching the turbocharger assembly,
be very careful not to allow dust, dirt and other foreign
matters in the oil pipes.
• When the turbocharger assembly has been replaced, pour
fresh engine oil through the oil filter port of the
turbocharger.
• Before starting the engine, make sure that the air cleaner is
in position.

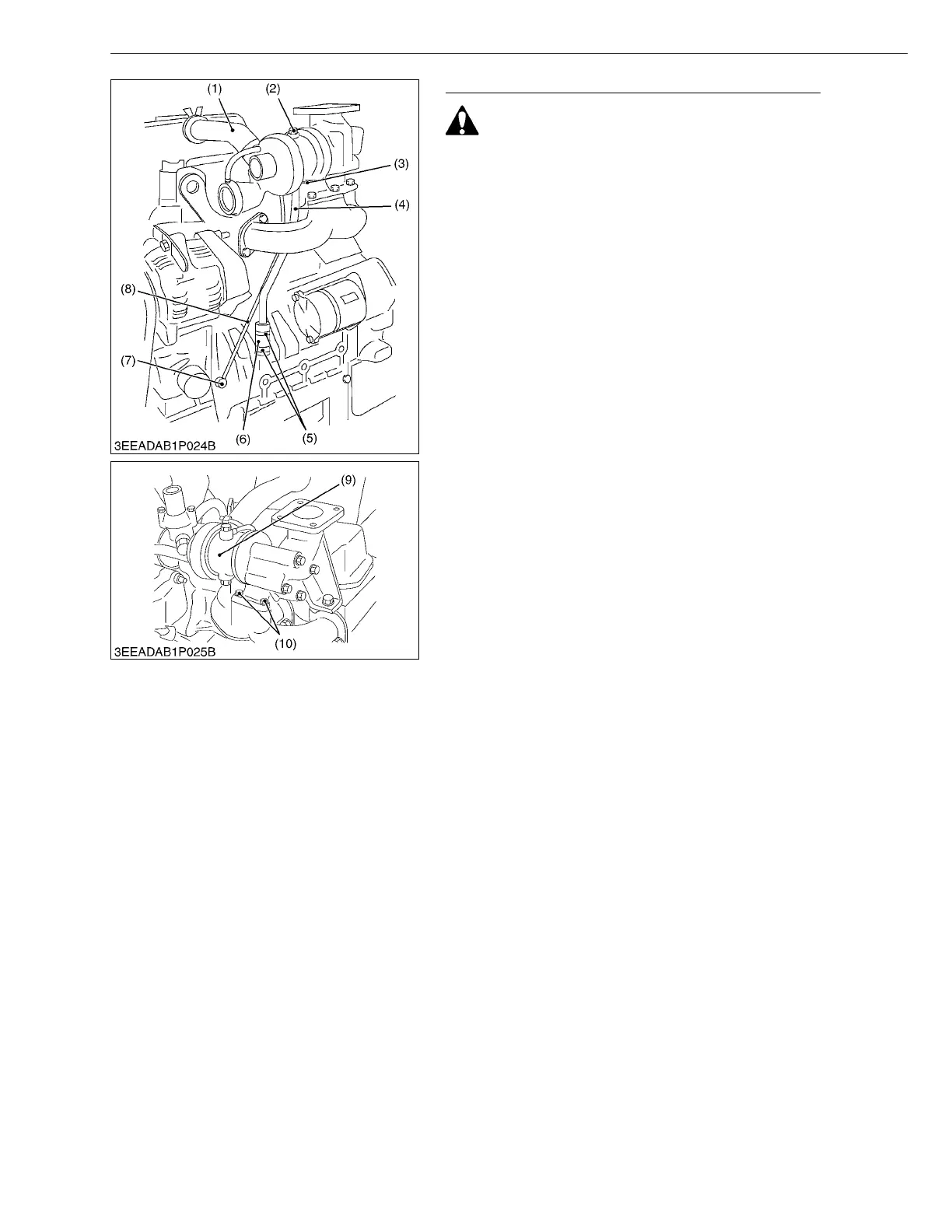

1. Disconnect the inlet hose (1).
2. Remove the joint bolt (2), (7) and take off the oil pipe 1 (8).
3. Remove the bolts 1 (3) and release the clamp (5).
4. Disconnect the oil pipe 2 (4) and pipe 3 (6).
5. Remove the bolts 2 (10).
6. Take off the turbocharger assembly (9).
(When reassembling)
• Pour fresh engine oil through the oil filter port of the turbocharger.
• Replace the gaskets with new one.
• Be careful not to allow dust, dirt and other foreign matters in the
oil pipes.
NOTEQ
• Tape or plug all opening to prevent foreign matters from
damaging the oil cavities in the turbocharger.
W1021474
(1) Inlet Hose
(2) Joint Bolt
(3) Bolt 1
(4) Oil Pipe 2
(5) Clamp
(6) Oil Pipe 3
(7) Joint Bolt
(8) Oil Pipe 1
(9) Turbocharger Assembly
(10) Bolt 2
To Next Page
