S-62
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE

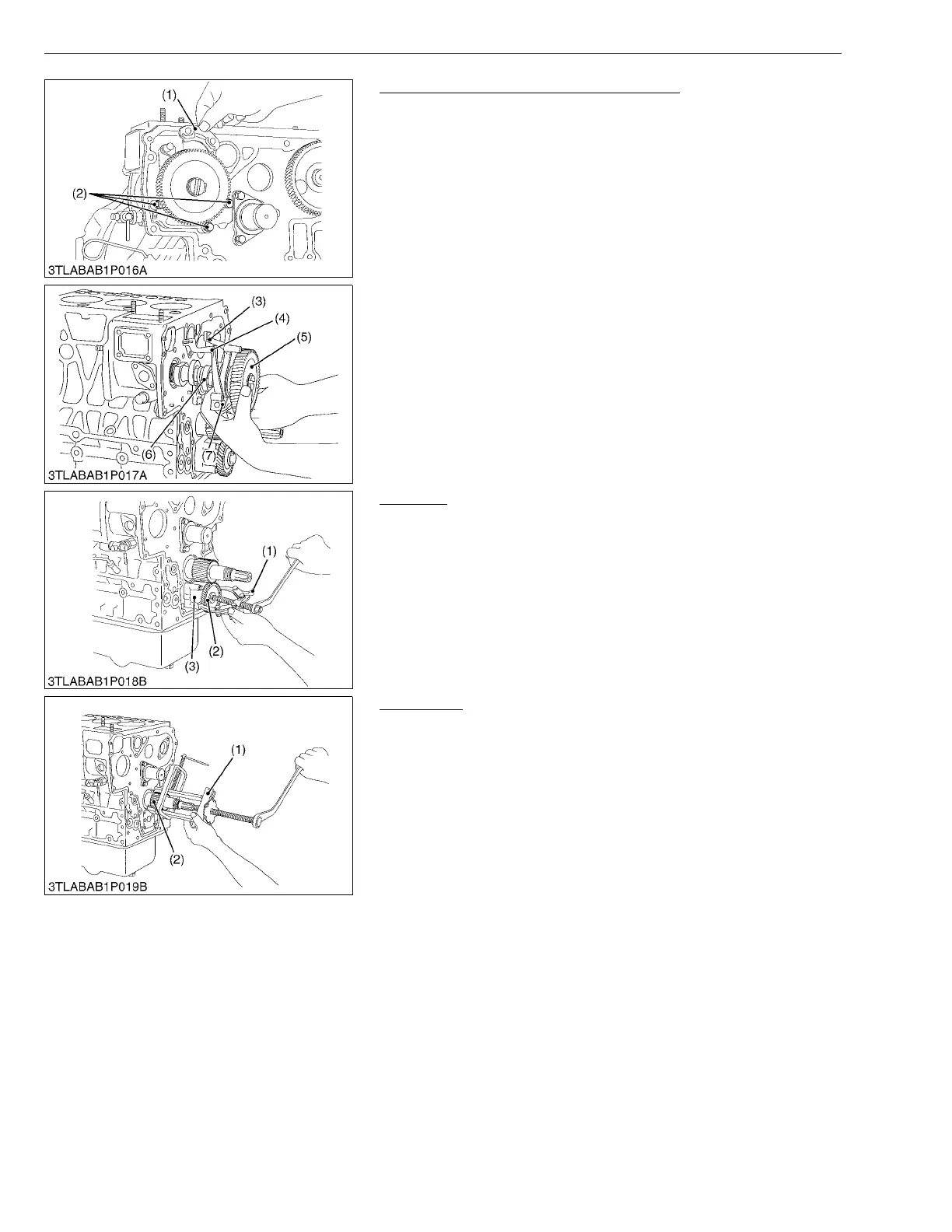

Fuel Camshaft and Fork Lever Assembly
1. Remove the fuel feed pump.
2. Detach the fuel camshaft stopper (1).
3. Remove the three fork lever holder mounting screws (2).
4. Draw out the fuel camshaft assembly (5), (6) and fork lever
assembly (3), (4), (7) at the same time.
(When reassembling)
After installation, check to see that the fork lever 1 (3) and lever
2 (4) are fixed to the fork lever shaft, and that they can turn
smoothly in the holder (7).
W1025309
Oil Pump
1. Remove the nut.
2. Draw out the oil pump drive gear (2) with gear puller (1).
3. Remove the four oil pump mounting screws. Detach the oil pump
(3).
W1025581
Crank Gear
1. Draw out the crank gear (2) with a puller (1).
2. Remove the feather key.
W1025476
(1) Fuel Camshaft Stopper
(2) Fork Lever Holder Mounting Screws
(3) Fork Lever 1
(4) Fork Lever 2
(5) Injection Pump Gear
(6) Fuel Camshaft
(7) Fork Lever Holder
(1) Gear Puller
(2) Oil Pump Drive Gear
(3) Oil Pump
(1) Crank Puller (2) Crank Gear
KiSC issued 07, 2008 A
