Valve Seating

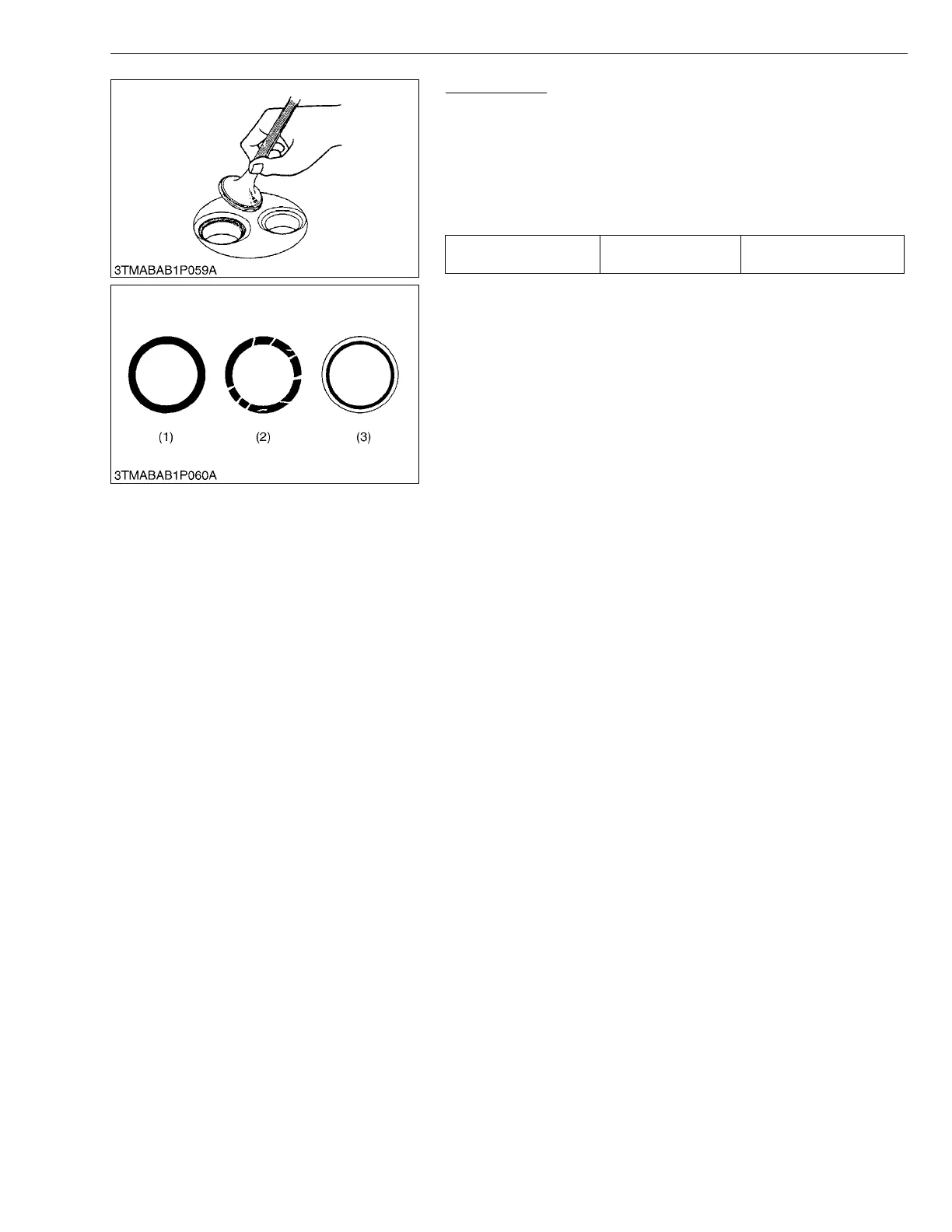

1. Coat the valve face lightly with prussian blue and put the valve on
its seat to check the contact.
2. If the valve does not seat all the way around the valve seat or the
valve contact is less than 70 %, correct the valve seating as
follows.
3. If the valve contact does not comply with the reference value,
replace the valve or correct the contact of valve seating.
W10282190
Valve seat width Factory spec.
2.12 mm
0.0835 in.
(1) Correct
(2) Incorrect
(3) Incorrect
