S-82
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE

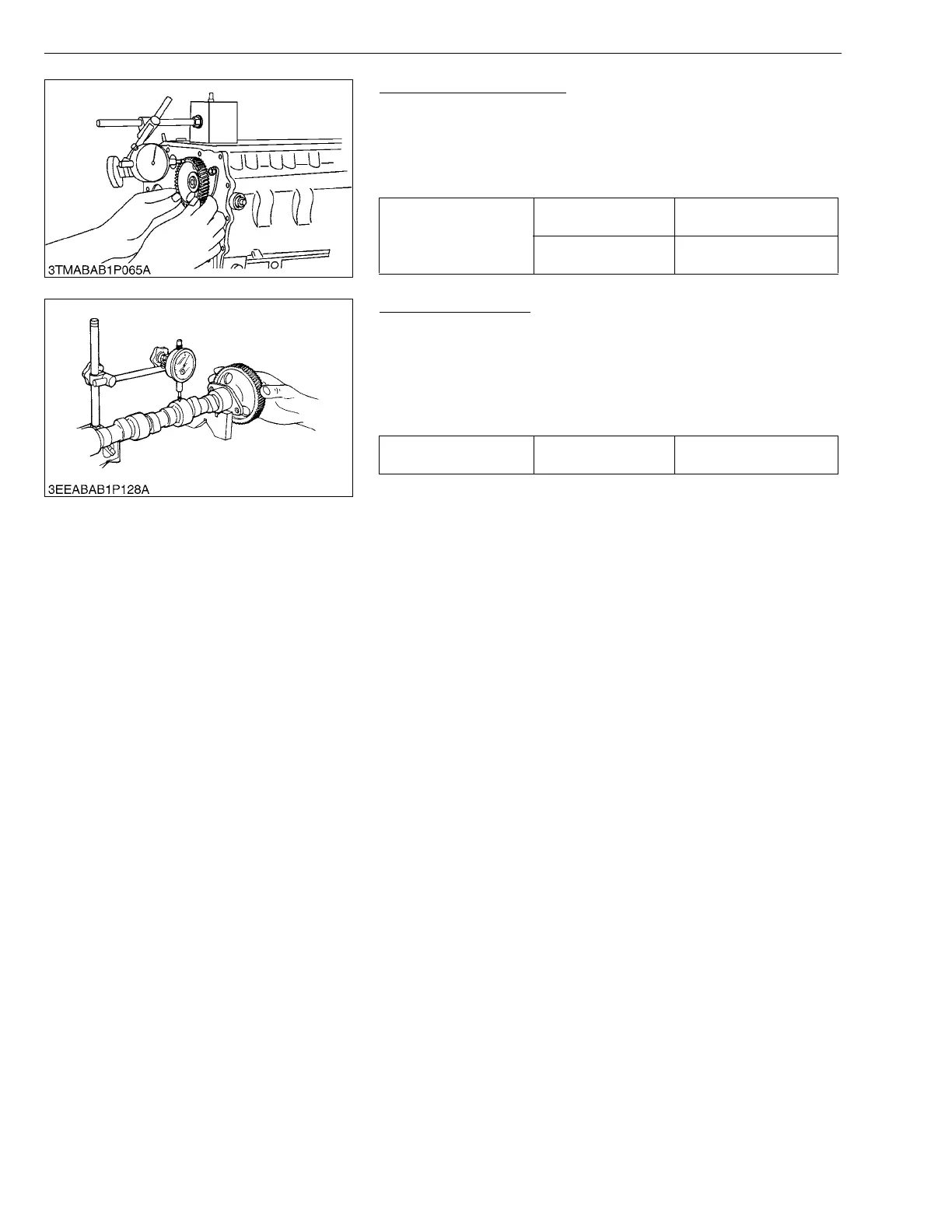

Camshaft Side Clearance
1. Set a dial indicator with its tip on the camshaft.
2. Measure the side clearance by moving the cam gear to the front
to rear.
3. If the measurement exceeds the allowable limit, replace the
camshaft stopper.
W1030012
Camshaft Alignment
1. Support the camshaft with V blocks on the surface plate at both
end journals.
2. Set a dial indicator with its tip on the intermediate journal.
3. Measure the camshaft alignment.
4. If the measurement exceeds the allowable limit, replace the
camshaft.
W1031413
Camshaft side
clearance
Factory spec.
0.070 to 0.22 mm
0.0028 to 0.0086 in.
Allowable limit
0.30 mm
0.012 in.
Camshaft alignment Allowable limit
0.01 mm
0.0004 in.
