DIESEL ENGINE
Idle Gear 2 and Hydraulic Pump Base Assembly
(for Side PTO Model)

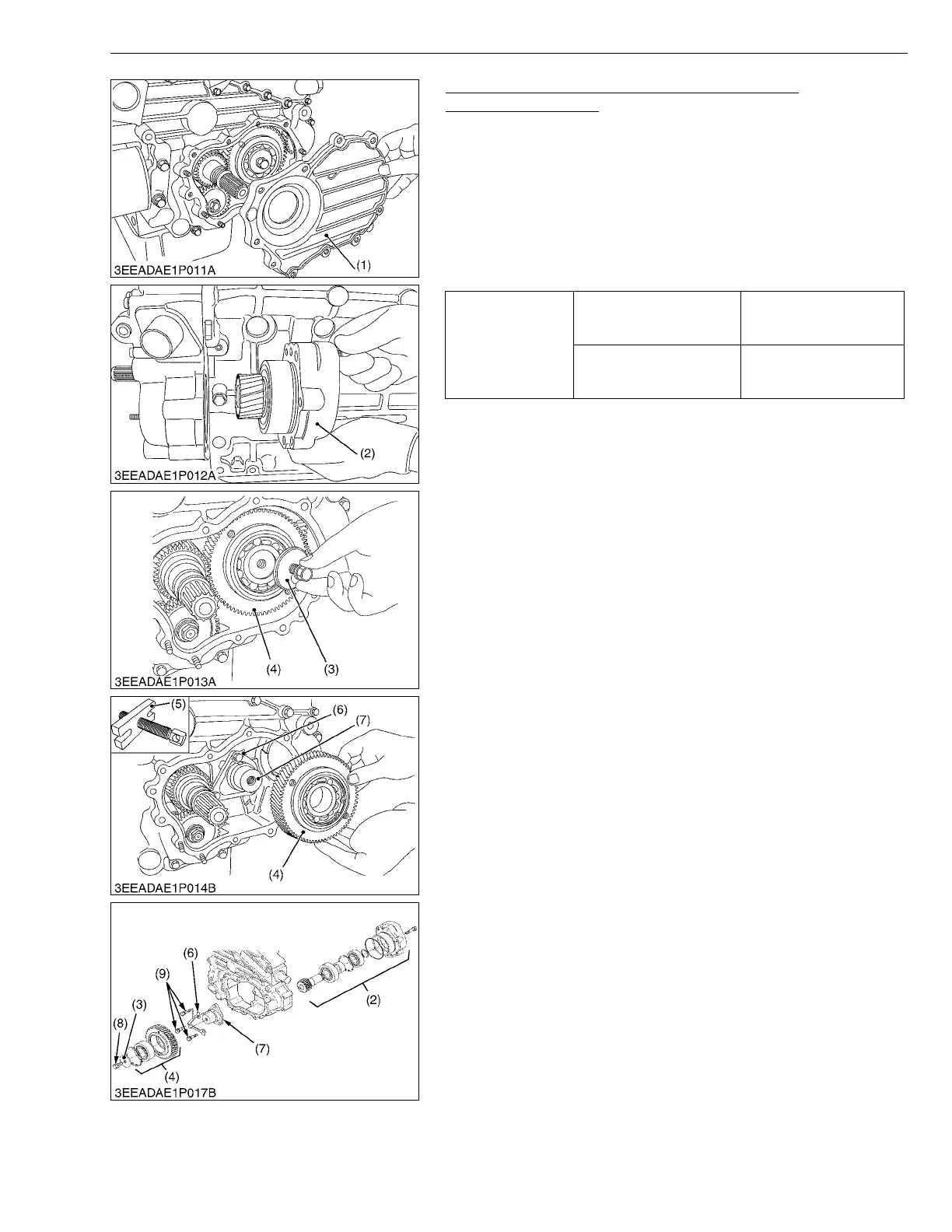

1. Remove the hour meter gear case (if equipped).
2. Remove the gear case cover (1).
3. Remove the hydraulic pump base assembly (2).
4. Remove the idle gear 2 stopper (3).
5. Remove the idle gear 2 (4) using the puller (5).
6. Remove the idle gear 2 shaft (7).
(When reassembling)
• Replace the washer (6) and gear case cover gasket.
• Replace the gear case cover gasket with new one.
W1034122
Tightening torque
Idle gear 2 shaft set screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Idle gear 2 stopper set
screw
49 to 55 N·m
5.0 to 5.7 kgf·m
37 to 41 lbf·ft
(1) Gear Case Cover
(2) Hydraulic Pump Base Assembly
(3) Idle Gear 2 Stopper
(4) Idle Gear 2
(5) Puller
(6) Washer
(7) Idle Gear 2 Shaft
(8) Idle Gear 2 Stopper Set Screw
(9) Idle Gear 2 Shaft Set Screw
