G-43
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
G GENERAL

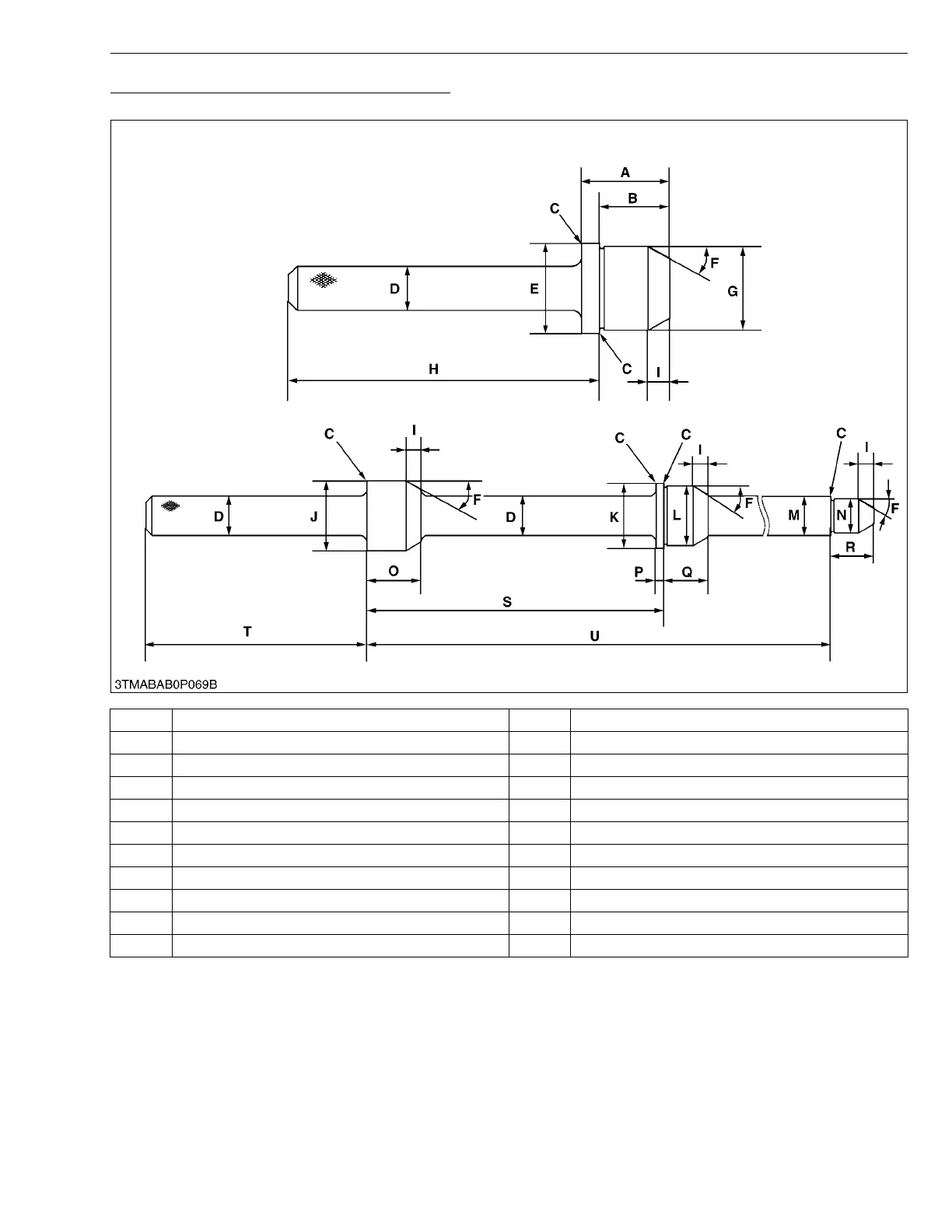

Balancer Metal Replacing Tool (for Removing)
Application: Use to remove the metal bearing.
A 41 mm (1.6 in.) L 41.934 to 41.950 mm dia. (1.6510 to 1.6515 in. dia.)
B 32.5 mm (1.28 in.) M 24.959 to 24.980 mm dia. (0.98264 to 0.98346 in. dia.)
C Chamfer 0.3 mm (0.01 in.) N 21.947 to 21.960 mm dia. (0.86406 to 0.86456 in. dia.)
D 25 mm dia. (0.98 in. dia.) O 36 mm (1.4 in.)
E 46.950 to 46.975 mm dia. (1.8485 to 1.8494 in. dia.) P 5 mm (0.2 in.)
F 0.52 rad (30 °) Q 29.0 mm (1.14 in.)
G 43.934 to 43.950 mm dia. (1.7297 to 1.7303 in. dia.) R 28.0 mm (1.10 in.)
H 148.5 mm (5.846 in.) S 195.25 to 195.75 mm (7.6870 to 7.7066 in.)
I 10 mm (0.39 in.) T 145 mm (5.71 in.)
J 46.50 to 46.75 mm dia. (1.831 to 1.840 in. dia.) U 384.75 to 385.25 mm (15.148 to 15.167 in.)
K 44.950 to 44.975 mm dia. (1.7697 to 1.7706 in. dia.)
