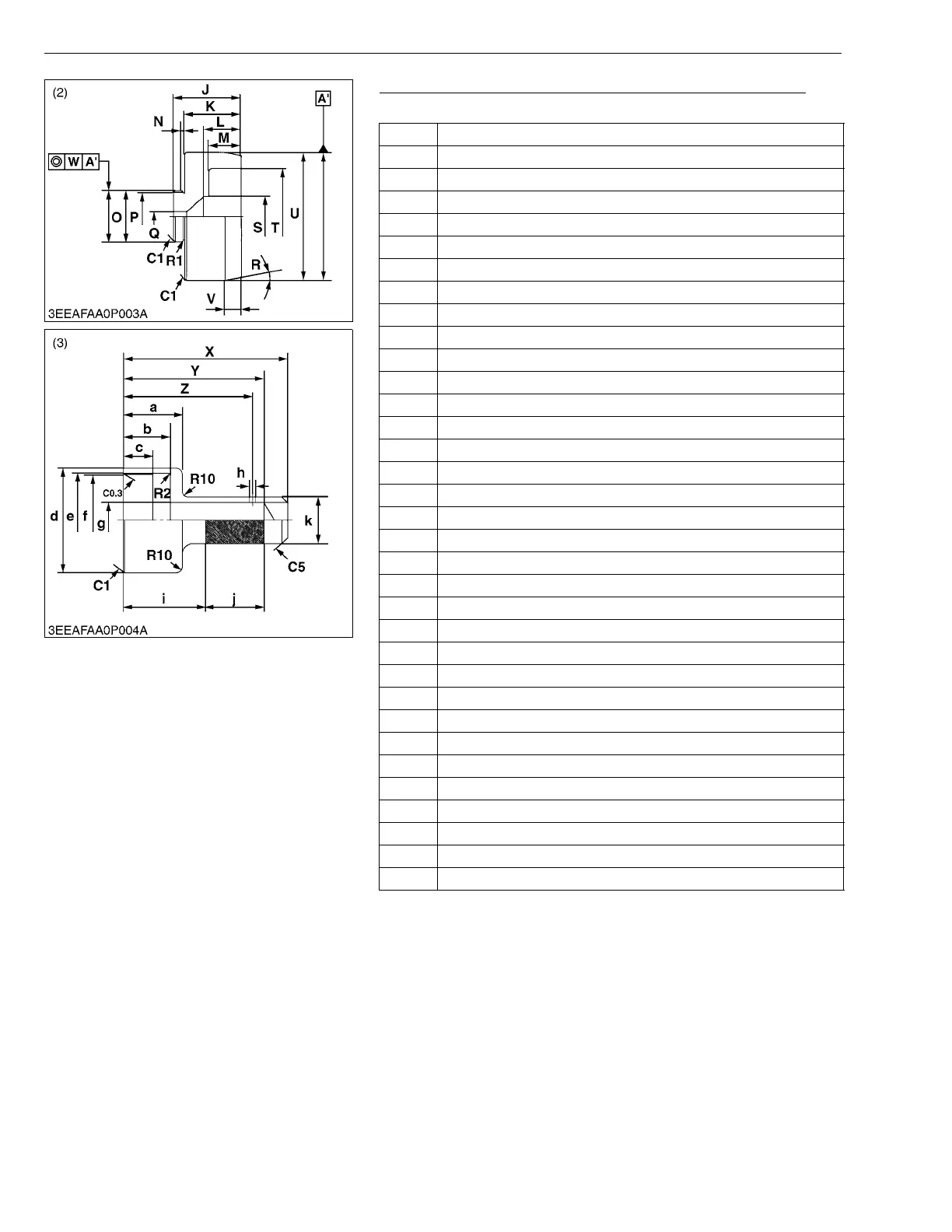

Auxiliary Socket for Fixing Crankshaft Sleeve (Continued)
Application: Use to fix the crankshaft sleeve of the diesel engine.
W1027898
J 42.0 mm (1.65 in.)
K 30.50 to 30.60 mm (1.201 to 1.204 in.)
L 23.0 mm (0.906 in.)
M 20.0 mm (0.787 in.)
N 2.0 mm (0.079 in.)
O 31.911 to 31.950 mm dia. (1.2564 to 1.2578 in. dia.)
P 30.0 mm dia. (1.18 in. dia.)
Q 5.0 mm dia. (0.20 in. dia.)
R 0.09 rad (5 °)
S 25.0 mm dia. (0.984 in. dia.)
T 60.0 mm dia. (2.36 in. dia.)
U 79.80 to 79.85 mm dia. (3.142 to 3.143 in. dia.)
V 10.0 mm (0.394 in.)
W 0.04 mm dia. (0.002 in. dia.)
X 140 mm (5.51 in.)
Y 120 mm (4.72 in.)
Z 110 mm (4.33 in.)
a 50.0 mm (1.97 in.)
b 39.90 to 40.00 mm (1.571 to 1.574 in.)
c 25.0 mm (0.984 in.)
d 90.0 mm dia. (3.54 in. dia.)
e 81.0 mm dia. (3.19 in. dia.)
f 80.10 to 80.15 mm dia. (3.154 to 3.155 in. dia.)
g 30.0 mm dia. (1.18 in. dia.)
h 5.0 mm dia. (0.20 in. dia.)
i 70.0 mm (2.76 in.)
j 50.0 mm (1.97 in.)
k 40.0 mm dia. (1.57 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C5 Chamfer 5.0 mm (0.20 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
R1 1.0 mm radius (0.039 in. radius)
R2 2.0 mm radius (0.079 in. radius)
R10 10.0 mm radius (0.394 in. radius)
(2) Sleeve Guide (3) Auxiliary Socket for Pushing
