G-40
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
G GENERAL

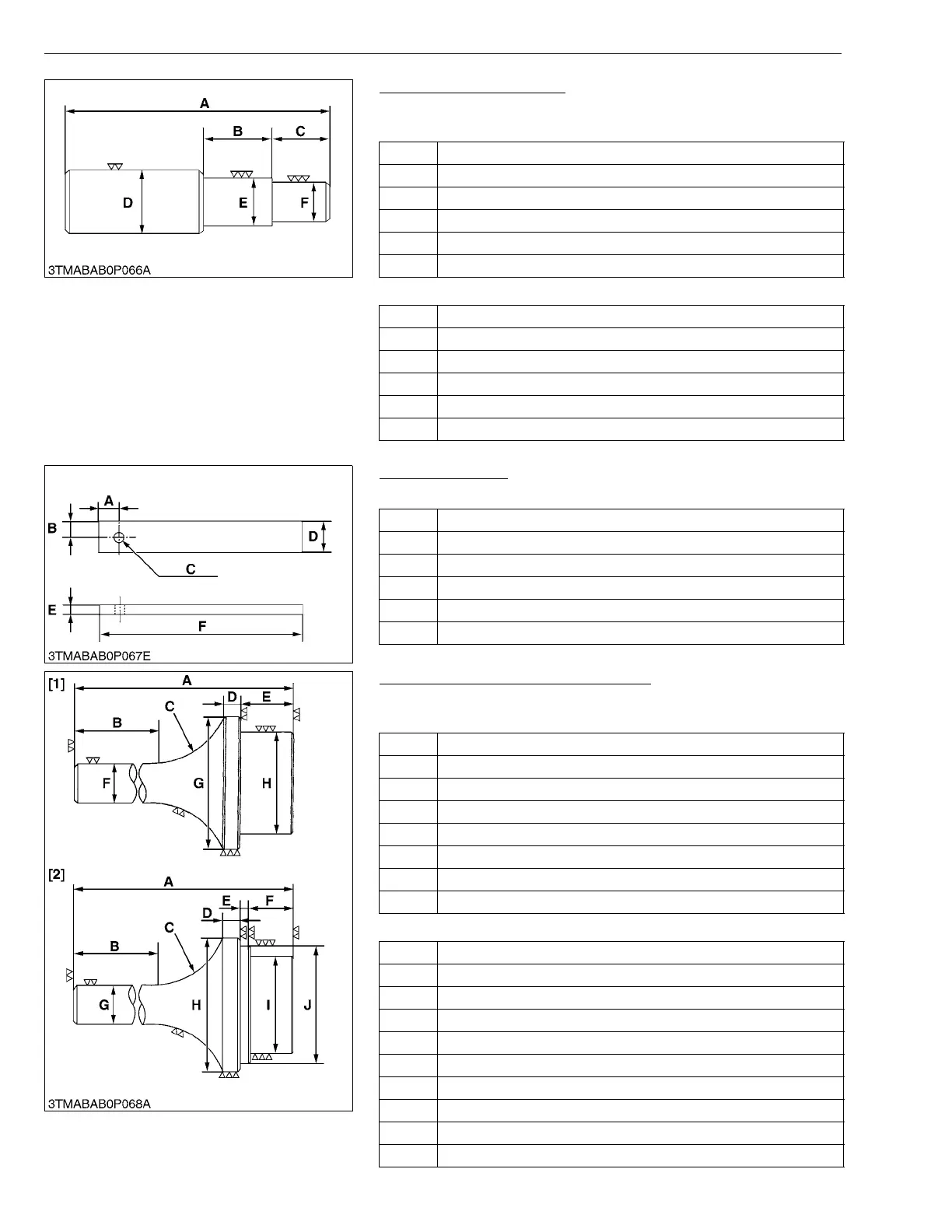

Bushing Replacing Tools
Application: Use to press out and to press fit the bushing.
1. For small end bushing
2. For idle gear bushing
W1025500
Flywheel Stopper
Application: Use to loosen and tighten the flywheel screw.
W10259480
Crankshaft Bearing 1 Replacing Tool
Application: Use to press out and press fit the crankshaft bearing 1.
1. Extracting tool
2. Inserting tool
W1026139
A 162 mm (6.38 in.)
B 35 mm (1.4 in.)
C 27 mm (1.1 in.)
D 35 mm dia. (1.4 in. dia.)
E 27.90 to 27.95 mm dia. (1.099 to 1.100 in. dia.)
F 25.00 to 25.01 mm dia. (0.9843 to 0.9846 in. dia.)
A 175 mm (6.89 in.)
B 40 mm (1.6 in.)
C 38 mm (1.5 in.)
D 45 mm dia. (1.8 in. dia.)
E 41.90 to 41.95 mm dia. (1.650 to 1.651 in. dia.)
F 37.950 to 37.970 mm dia. (1.4941 to 1.4948 in. dia.)
A 20 mm (0.79 in.)
B 15 mm (0.59 in.)
C 10 mm dia. (0.39 in. dia.)
D 30 mm (1.2 in.)
E 8 mm (0.3 in.)
F 200 mm (7.87 in.)
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 20 mm (0.79 in.)
F 20 mm dia. (0.79 in. dia.)
G 64.80 to 64.90 mm dia. (2.552 to 2.555 in. dia.)
H 59.80 to 59.90 mm dia. (2.355 to 2.358 in. dia.)
A 130 mm (5.12 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 9 mm (0.4 in.)
E 4 mm (0.2 in.)
F 20 mm (0.79 in.)
G 20 mm dia. (0.79 in. dia.)
H 68 mm dia. (2.7 in. dia.)
I 59.80 to 59.90 mm dia. (2.355 to 2.358 in. dia.)
J 64.80 to 64.90 mm dia. (2.552 to 2.555 in. dia.)
To Next Page
