DIESEL ENGINE

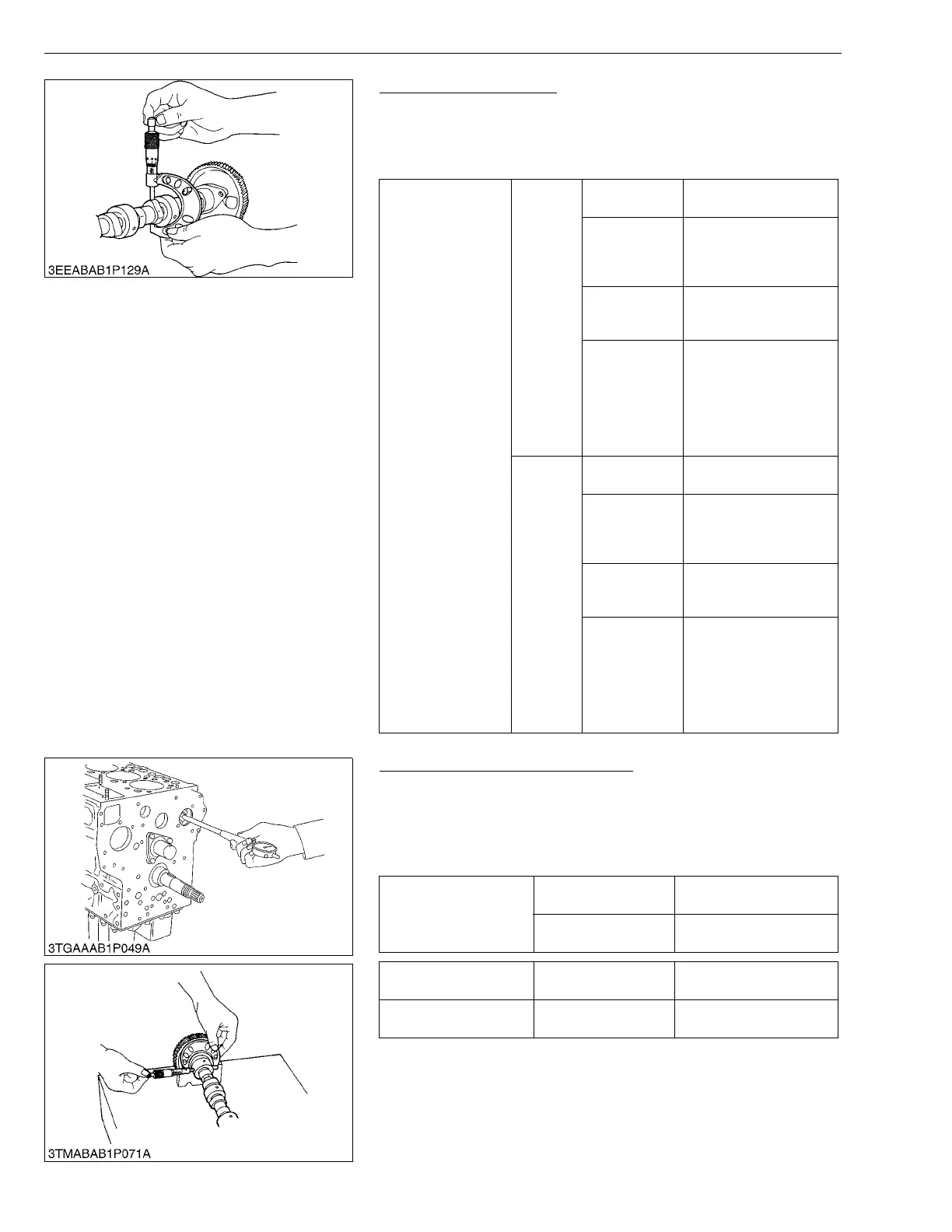

Cam Height (Continued)
1. Measure the height of the cam at its highest point with an outside
micrometer.
2. If the measurement is less than the allowable limit, replace the
camshaft.
W1111109
Oil Clearance of Camshaft Journal
1. Measure the camshaft journal O.D. with an outside micrometer.
2. Measure the cylinder block bore I.D. for camshaft with a cylinder
gauge, and calculate the oil clearance.
3. If the oil clearance exceeds the allowable limit, replace the
camshaft.
W1031662
Cam height of
exhaust
Factory
spec.
V2403-M-DI-T
33.00 mm
1.299 in.
V2403-M-T
D1703-M-BG
V2003-M-BG
V2203-M-BG
33.27 mm
1.310 in.
D1503-M
V2003-M
V2003-M-T-BG
33.47 mm
1.318 in.
D1703-M
D1803-M
V2203-M
V2403-M
D1803-M-DI
V2403-M-DI
V2403-M-BG
33.90 mm
1.335 in.
Allowable
limit
V2403-M-DI-T
32.95 mm
1.297 in.
V2403-M-T
D1703-M-BG
V2003-M-BG
V2203-M-BG
33.22 mm
1.308 in.
D1503-M
V2003-M
V2003-M-T-BG
33.42 mm
1.316 in.
D1703-M
D1803-M
V2203-M
V2403-M
D1803-M-DI
V2403-M-DI
V2403-M-BG
33.85 mm
1.333 in.
Oil clearance of
camshaft journal
Factory spec.
0.050 to 0.091 mm
0.0020 to 0.0035 in.
Allowable limit
0.15 mm
0.0059 in.
Camshaft journal O.D. Factory spec.
39.934 to 39.950 mm
1.5722 to 1.5728 in.
Cylinder block bore I.D. Factory spec.
40.000 to 40.025 mm
1.5748 to 1.5757 in.
