G-14
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
G
GENERAL

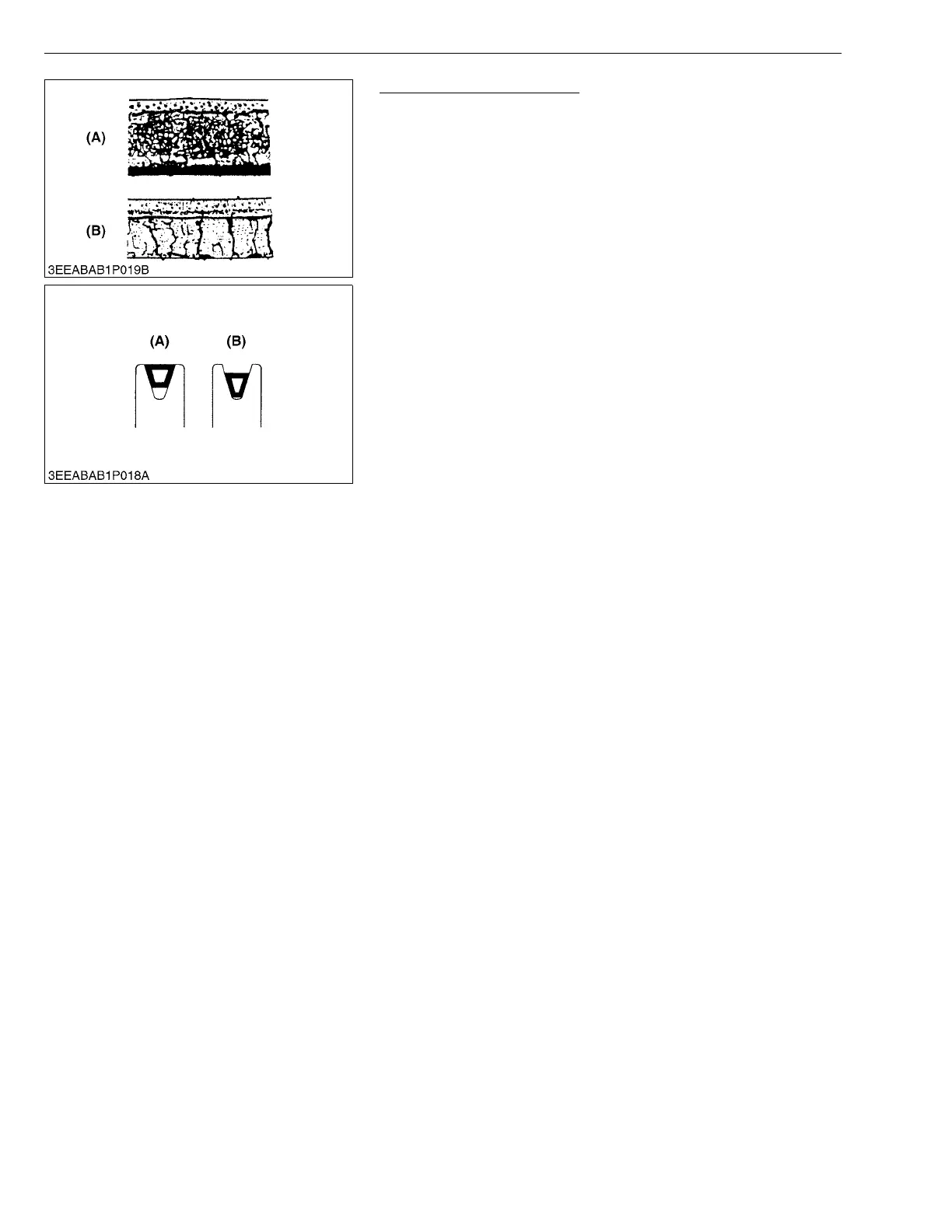

Fan Belt Damage
and Wear
1.
Check the fan belt for dama
ge.
2.
If the fan belt is damaged, replace it.
3.
Check if the fan
belt is worn and
sunk in the pulley
groove.
4.
If the fan belt is near
ly worn out and deeply sunk in the pulley
groove, repla
ce it.
W1057475
(A)
Good
(B)
Bad
KiSC issued 07, 2008 A
