S-98
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE

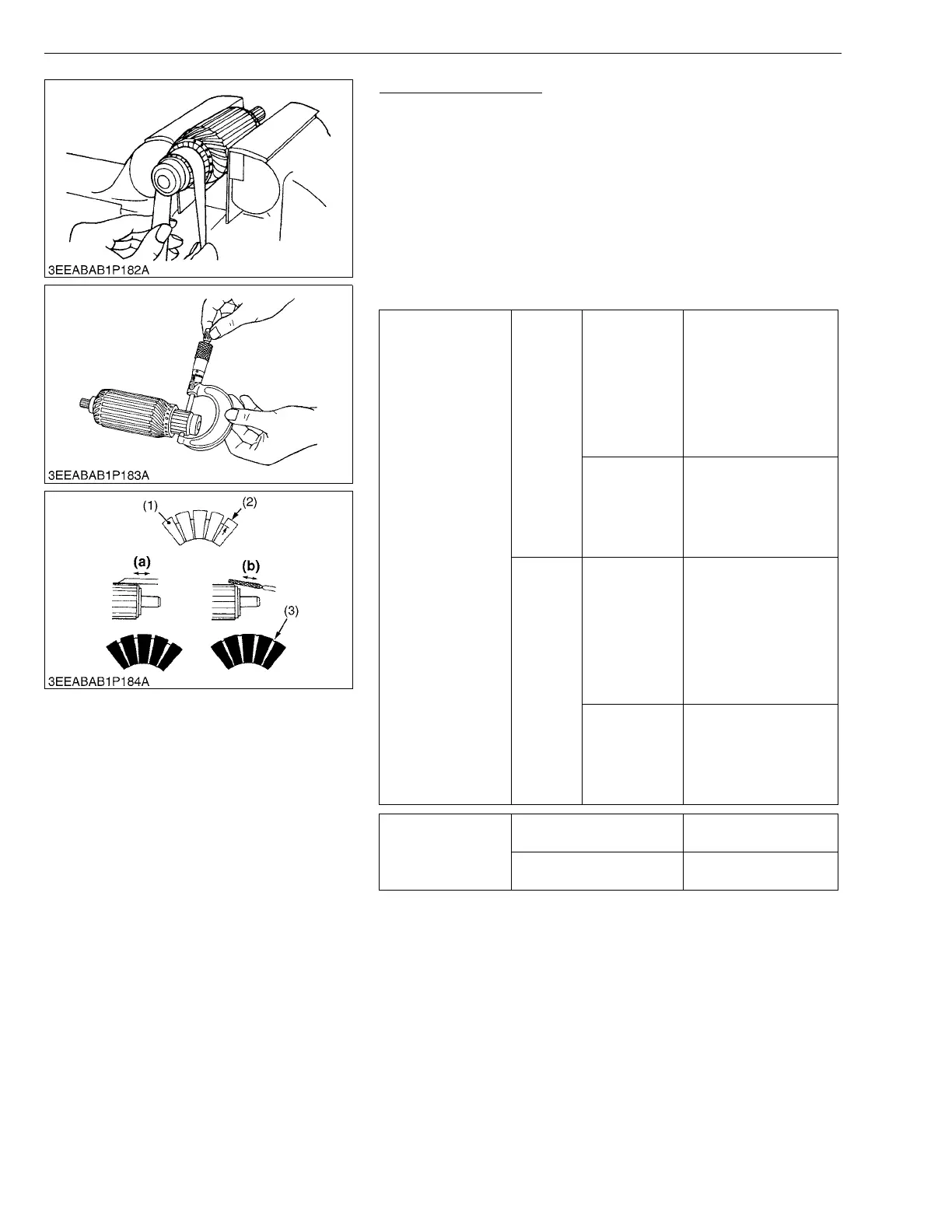

Commutator and Mica
1. Check the contact of the commutator for wear, and grind the
commutator with emery paper if it is slightly worn.
2. Measure the commutator O.D. with an outside micrometer at
several points.
3. If the minimum O.D. is less than the allowable limit, replace the
armature.
4. If the difference of the O.D.'s exceeds the allowable limit, correct
the commutator on a lathe to the factory specification.
5. Measure the mica undercut.
6. If the undercut is less than the allowable limit, correct it with a saw
blade and chamfer the segment edges.
W1112444
Commutator O.D.
Factory
spec.
D1503-M
D1703-M
V2003-M
V2203-M
D1803-M-DI
D1703-M-BG
V2003-M-BG
V2003-M-T-BG
V2203-M-BG
30.0 mm
1.18 in.
D1803-M
V2403-M
V2403-M-T
V2403-M-DI
V2403-M-DI-T
V2403-M-BG
35.0 mm
1.38 in.
Allowable
limit
D1503-M
D1703-M
V2003-M
V2203-M
D1803-M-DI
D1703-M-BG
V2003-M-BG
V2003-M-T-BG
V2203-M-BG
29.0 mm
1.14 in.
D1803-M
V2403-M
V2403-M-T
V2403-M-DI
V2403-M-DI-T
V2403-M-BG
34.0 mm
1.34 in.
Difference of O.D.’s
Factory spec.
Less than 0.02 mm
0.0008 in.
Allowable limit
0.05 mm
0.002 in.
(1) Segment
(2) Depth of Mica
(3) Mica
(a) Correct
(b) Incorrect
KiSC issued 07, 2008 A
