G-44
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
G GENERAL

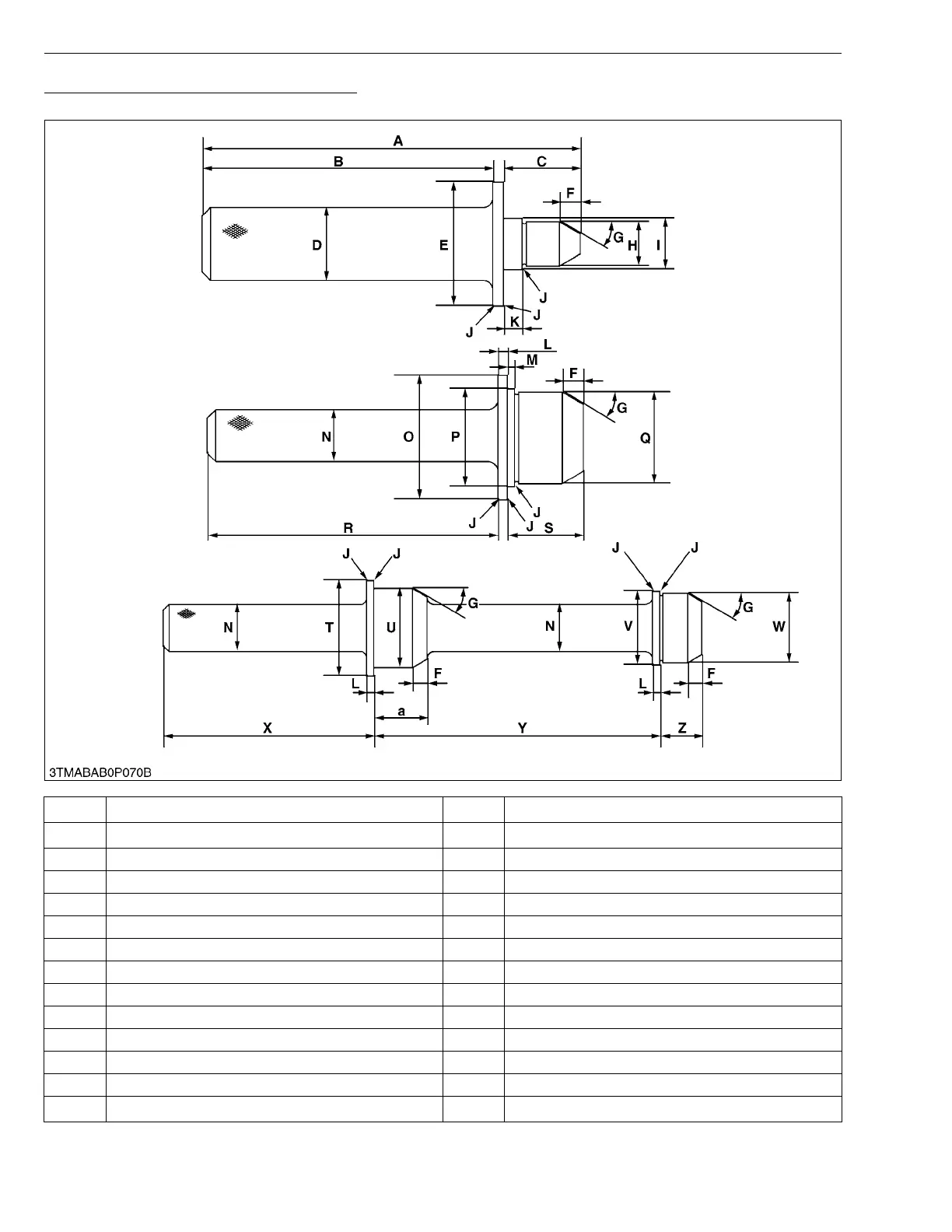

Balancer Metal Replacing Tool (for Fitting)
Application: Use to press fit the metal bearing.
A 182 mm (7.17 in.) O
60 mm dia. (2.4 in. dia.)
B 140 mm (5.51 in.) P
46.950 to 46.975 mm dia. (1.8485 to 1.8494 in. dia.)
C 37 mm (1.5 in.) Q 43.934 to 43.950 mm dia. (1.7297 to 1.7303 in. dia.)
D 35 mm dia. (1.4 in. dia.) R 140 mm (5.51 in.)
E 60 mm dia. (2.4 in. dia.) S 36 mm (1.4 in.)
F 10 mm (0.39 in.) T 60 mm dia. (2.4 in. dia.)
G 0.52 rad (30 °) U 46.950 to 46.975 mm dia. (1.8485 to 1.8494 in. dia.)
H 21.947 to 21.960 mm dia. (0.86406 to 0.86456 in. dia.) V 44.950 to 44.975 mm dia. (1.7697 to 1.7706 in. dia.)
I 24.959 to 24.980 mm dia. (0.98264 to 0.98346 in. dia.) W 41.934 to 41.950 mm dia. (1.6510 to 1.6515 in. dia.)
J Chamfer 0.3 mm (0.01 in.) X 145 mm (5.71 in.)
K 8.8 to 9.2 mm (0.35 to 0.36 in.) Y 195.25 to 195.75 mm (7.6870 to 7.7066 in.)
L 5 mm (0.2 in.) Z 29 mm (1.1 in.)
M 3.3 to 3.7 mm (0.13 to 0.14 in.) a 36 mm (1.4 in.)
N
25 mm dia. (0.98 in. dia.)
