4.4.1 Lights
Note 1:
Black and white wires must be connected together
on SAE type connectors for proper light operation.
Note 2:
The red wire should only be attached to the #4
terminal if the #4 terminal on the tractor is confirmed
to be a brake light terminal. If the tractor has no
brake terminal, the red wire of the implement should
be sealed off and not connected to any terminal.
4.4.2 Towing
Whenever towing the spreader on a public road,
always use the tractor and machine's lights as
required by local regulations.
4.4.3 Place the machine in parking position
Always park the spreader on level ground and chock
the tires.

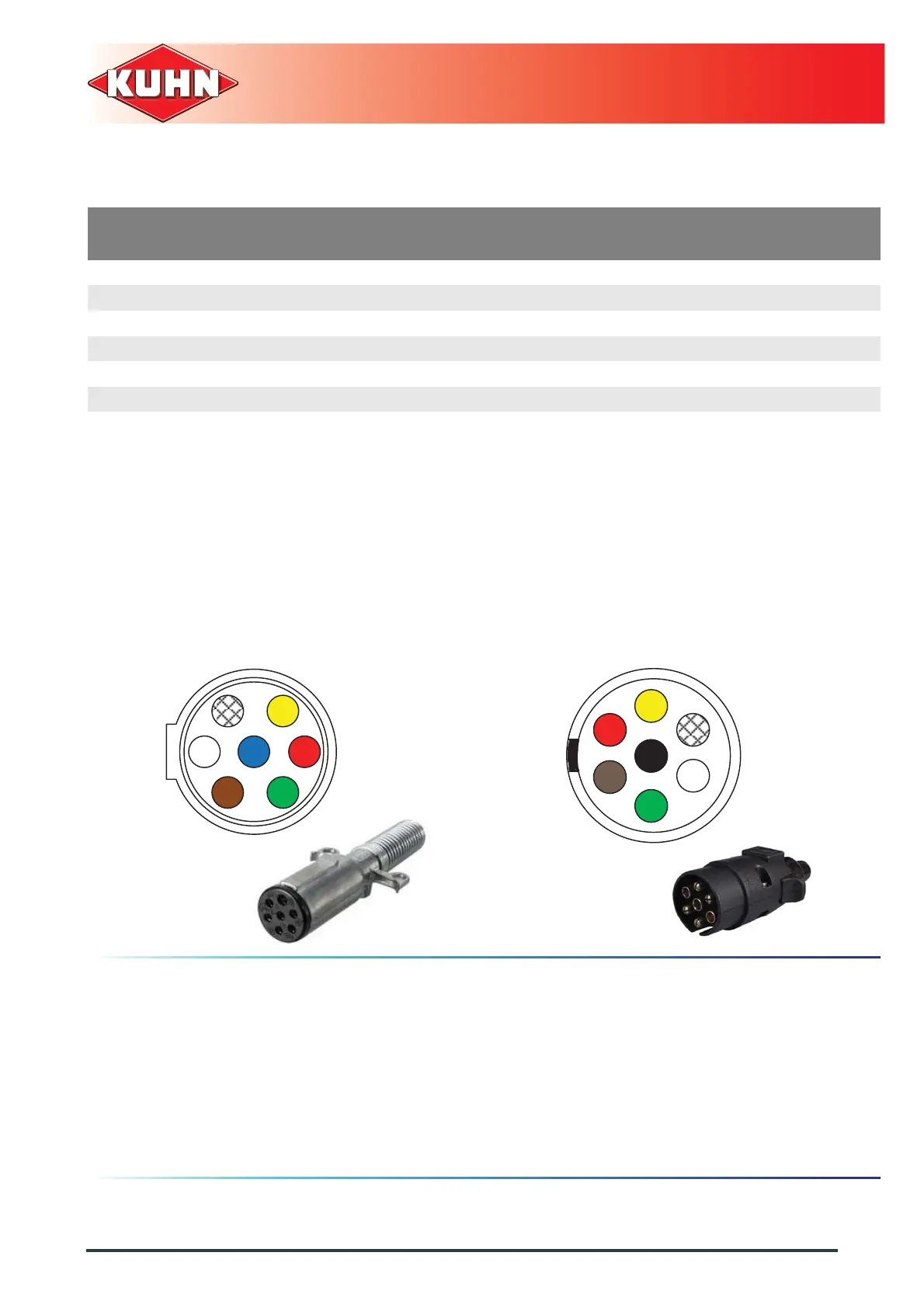

Colors Function SAE Terminal # ISO Terminal #
White Ground 1 - See note 1 3
Black Left running lights 1 - See note 1 7
Yellow Left turn & hazard 3 1
Red Stop lights 4 - See note 2 6
Green Right turn & hazard 5 4
Brown Right running lights 6 5
Blue Not used 7 2
SAE
17
65
4
32
ISO
1
7
6
5
4
3
2
