PROPUSH 2000 SERIES
38
7. - Instructions for work
7N018KUS_A
Box Spreader Trailer Type

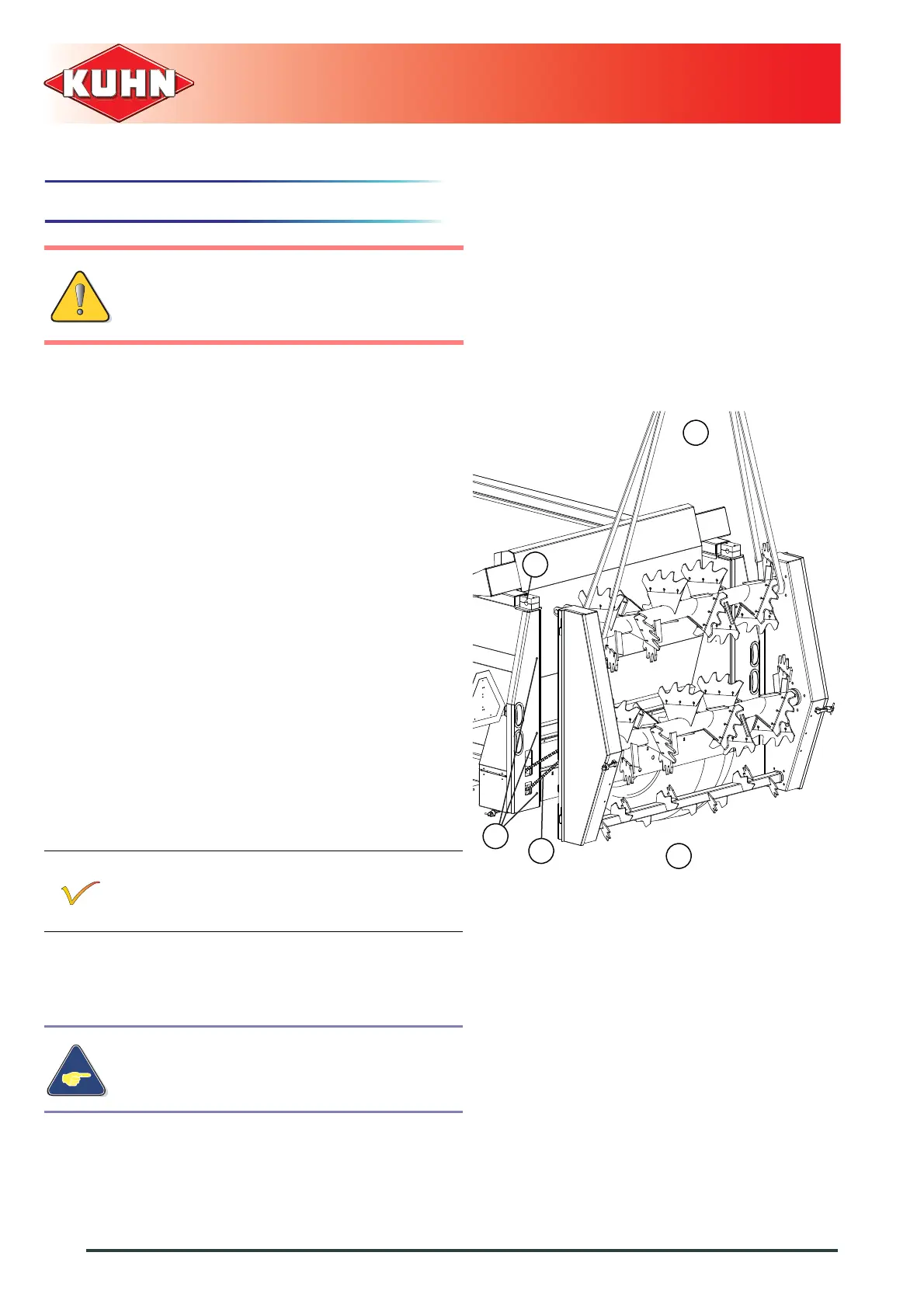

7.3 Horizontal beater removal
Use a lifting device that can support the weight
of the beater assembly. Make sure the chains or
lifting straps are secure and can support the
weight of the beater assembly when it is being
removed and transported to storage. STAND
CLEAR WHEN BEATER IS BEING MOVED.
1. Support beater assembly with a lifting strap or
chains around upper most beater tube, left and right
sides.
2. Lift beater assembly so the lifting device is
supporting the weight of the assembly. This will
ensure that the mounting bolts can be removed
without the beaters suddenly dropping.
3. Remove 2 bolts each side on 2044 panels and 3 on
each side on 2054 panels. Loosen, but do not
remove, 2 bolts each side on top.
4. Remove drive chain from gearbox to lower beater
drive sprocket.
5. Remove top hardware previously loosened and
caps.
6. Remove beater assembly.
7. Replace mounting hardware on beater assembly
and spreader for storage.
8. Remove PTO from unit and store with beaters.
9. Clean all decals on the back of machine.
Beater installation
Installation is opposite of removal. Beaters may
need to be rotated to help engage drive.
Always perform the safety shutdown
procedure before servicing, repairing,
cleaning, or removing beater assembly.
To prevent the spreader drive system from
turning with the beater assembly removed,
always remove the beater driveline from the
spreader and store with the beater assembly.
Check gearbox lubricant level and grease all
bearings.
