KÜSCHALL COMPACT

Service Manual

SEAT

Seat height front (SHv)

Options for changing the SHv:

• Replace front wheel with larger or smaller one or ﬁt it at

another position on the front wheel fork,

 Chap. Front wheels, Replacing the front wheel.

• Replace front wheel fork with a larger or a smaller one,

 Chap. Front wheels, Replacing the front wheel fork.

• Fit it high/low with the housing guide Hemi,

 Chap. Front wheels, Special housing guides.

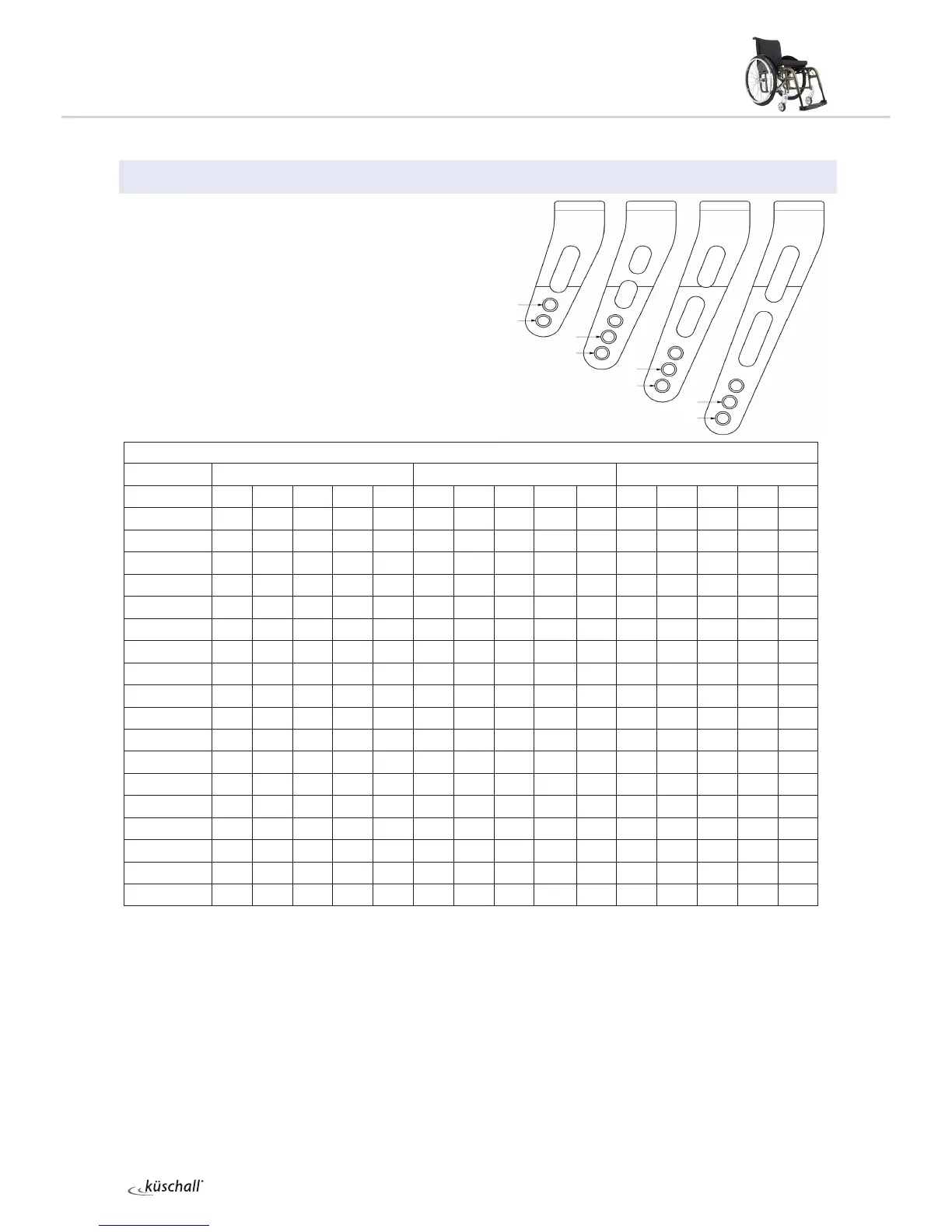

There are four front wheel fork sizes available.

Seat height front with respect to fork size, front wheel size and mounting situation

Frame high mounted standard mounted low mounted

Front wheel 3" 4" 5" 6" 7" 3" 4" 5" 6" 7" 3" 4" 5" 6" 7"

SHv 380 A         -     -

SHv 390 B         -     -

SHv 400 B         -     -

SHv 410 C B    A         -

SHv 420 D C    B         -

SHv 430 E C C   B         -

SHv 440 F D C   C B    A    

SHv 450 G E D   D C    B    

SHv 460 H F E D  E C C   B    

SHv 470  G F E  F D C   C B   

SHv 480  H G F E G E D   D C   

SHv 490   H G F H F E D  E C C  

SHv 500    H G  G F E  F D C  

SHv 510     H  H G F E G E D  

SHv 520     -   H G F H F E D 

SHv 530     -    H G  G F E 

SHv 540     -     H  H G F E

SHv 550     -     -   H G F

6’’ and 7’’ front wheels cannot be used on the Ultra-Light dynamic

frame (80°), if a 2-part angled footrest is ﬁtted.
