7
KÜSCHALL COMPACT
© Invacare Corporation | 2018-07
Service Manual

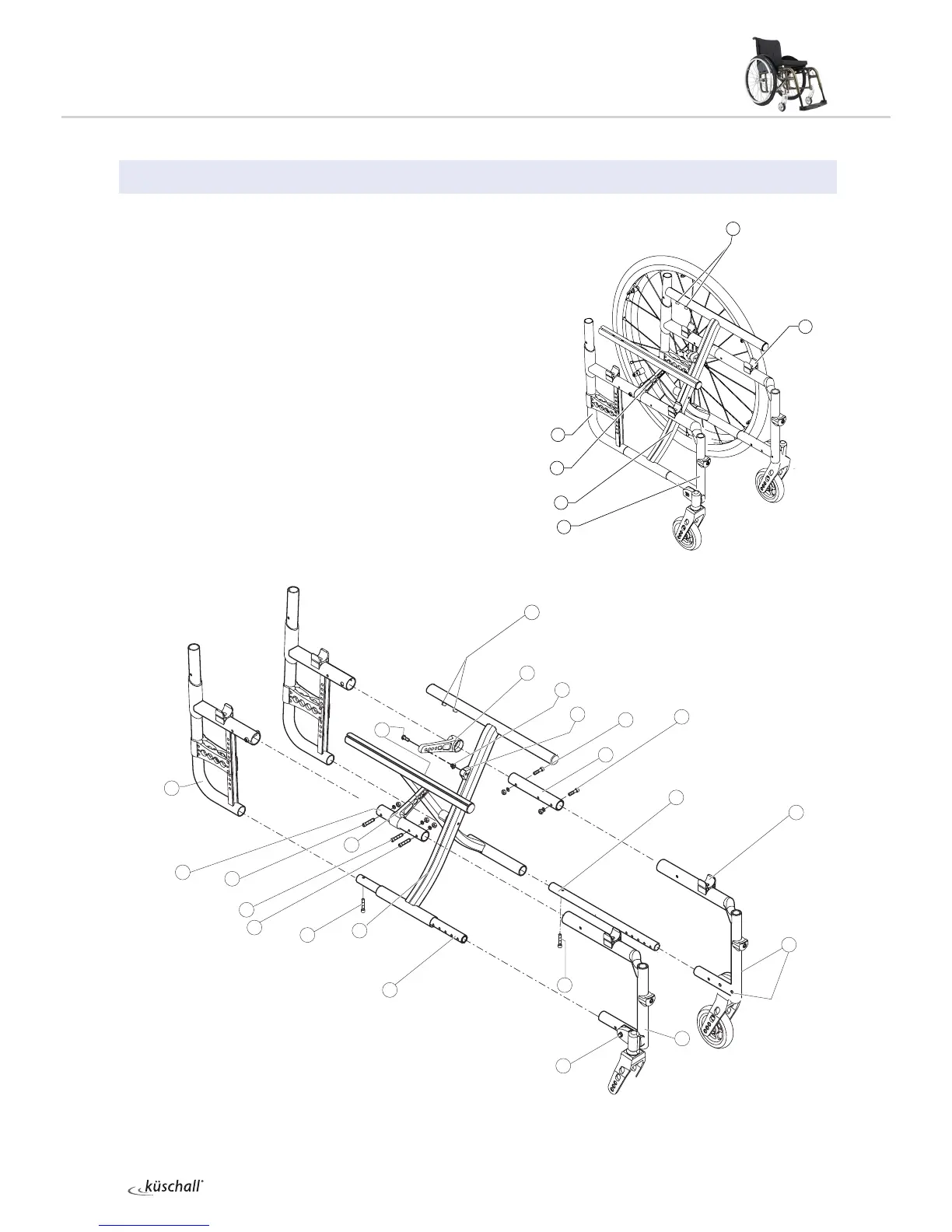

FRAME
FRAME
4
1
2
3
7
8
5
6
5
6
1
2
3
4
2
4a
4a
1a
1a
　　　　　　　
　　　　　　　　　　　　　　　　　　　　
2a
1b
1b
4b
4b
7
2b
2c
8
4c
Rear frame
a à 13 Nm
b à 7 Nm
Retaining lever
a à 4 Nm
Cross
Front frame
a à 13 Nm
b à 7 Nm
c à 7 Nm
Upper connecting tube
Lower connecting tube
Seat locking mechanism
Longitudinal stopping bolts
