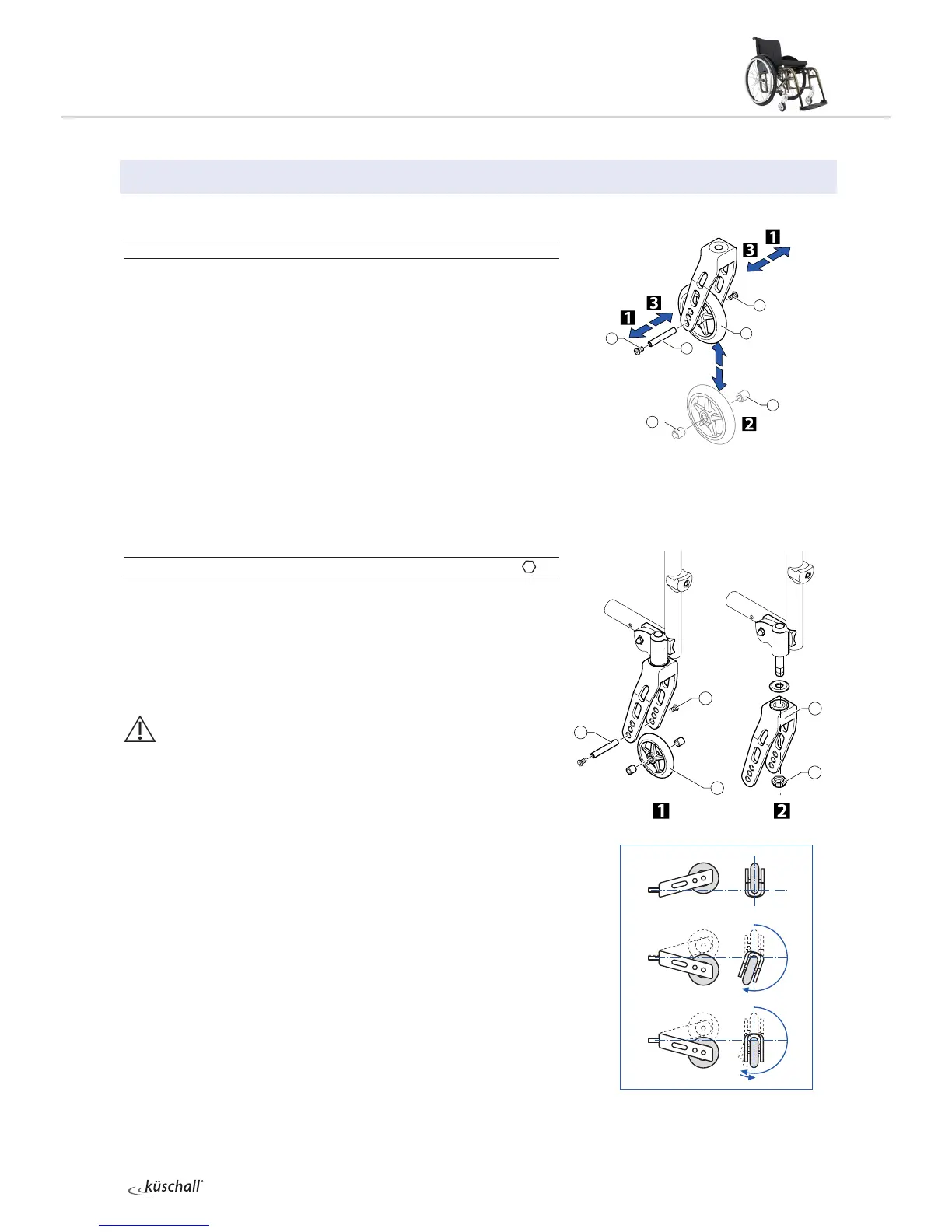

FRONT WHEELS
Replacing the front wheel
Diculty:
Tools:
à 3
1
Remove bolts , pull out wheel axle .
2
Remove front wheel and replace with a new one or move to a
new position.
(In the case of the Starec wheel, skater wheel, 3’’ sports wheel and
the 5’’ soft roll wheel, 2 sleeves must be pushed onto the axle.
These sleeves are already in place on the low-resistance wheel,
the sports wheels and the pneumatic wheels.)
3
Re-insert axle and tighten bolt .
Function check
There must be no play in the wheel but it must turn easily.
Front wheel fork
Replacing the front wheel fork
Diculty:
Tools:
à 3 19
1
Remove bolts , wheel axle and front wheel .
2
Remove nuts and pull the front wheel fork from the clevis
pin.
Replace front wheel fork and secure with nut such that the
fork has no play.
Re-insert the front wheel.
CAUTION!
Do not overtighten nut , as this can damage the fork bearing.
Function check
Tip the wheelchair backwards by 90° so that it is lying on the backrest
and the rear wheels. Make sure that the clevis pin is as horizontal as
possible. Turn the fork upwards (position A) and let it tip downwards.
The fork has been correctly adjusted if it easily turns to slightly
beyond the bottommost point (position B) and then maximally turns
back to the bottommost point (position C).
If the fork turns back over the bottommost point or even swings back
and forth, it has not been suciently tightened. There is a risk that the
front wheels will start to wobble at high speeds.
1
2
1
4
4
3
1
2
4
5
3
A
B
C
à 4 Nm
