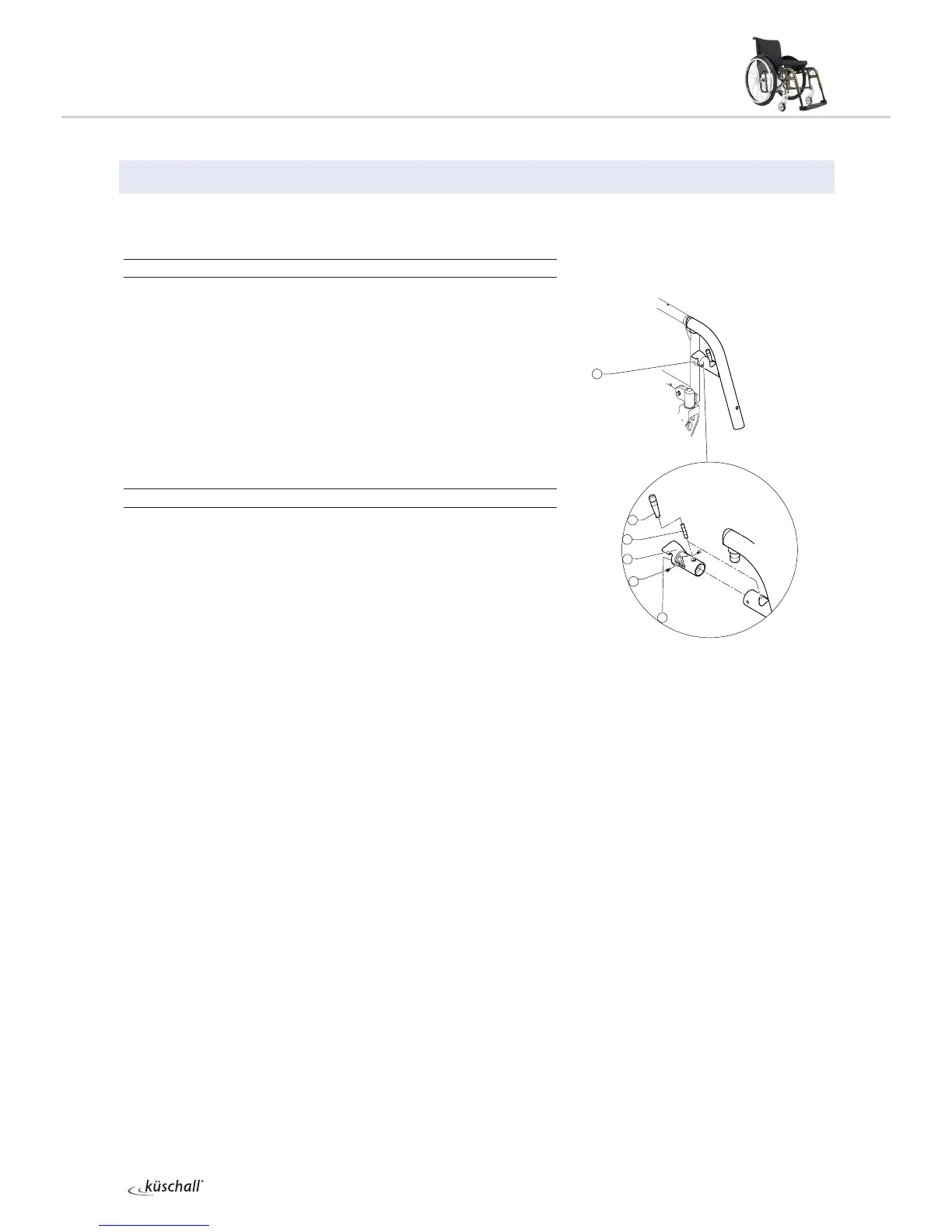

LEGRESTS
Legrests with angle measurements of 70, 80 and 90° are available.
Replacing the locking mechanism
Diculty:
Tools:
ß10
à 3
Screw o unlocking lever manually.
Remove hinge pin .
Loosen bolts .
Remove locking mechanism and replace with a new one.
Reinsert bolts and tighten.
Screw in the hinge pin again.
Screw the unlocking lever back on manually.
Setting the locking lever
Diculty:
Tools:
à 3, 5
It must be possible to move the unlocking lever 1-2 mm freely
forward and back, without having to move the bolt . This guaran-
tees that the bolt is sitting optimally in the counterpiece . If this free
mobility is greater or smaller than specified, the unlocking lever must
be reset:
Screw o the unlocking lever manually.
Loosen the hinge pin (do not remove).
Screw bolt in deeper to reduce movement or screw bolt
further out to increase movement.
Set it so that the pin can move freely by 1-2 mm.
Retighten the hinge pin again.
Screw the unlocking lever back on manually.
1
2
4
3
5
6
à 3 Nm
à 3 Nm
