OPTIONS & ACCESSORIES

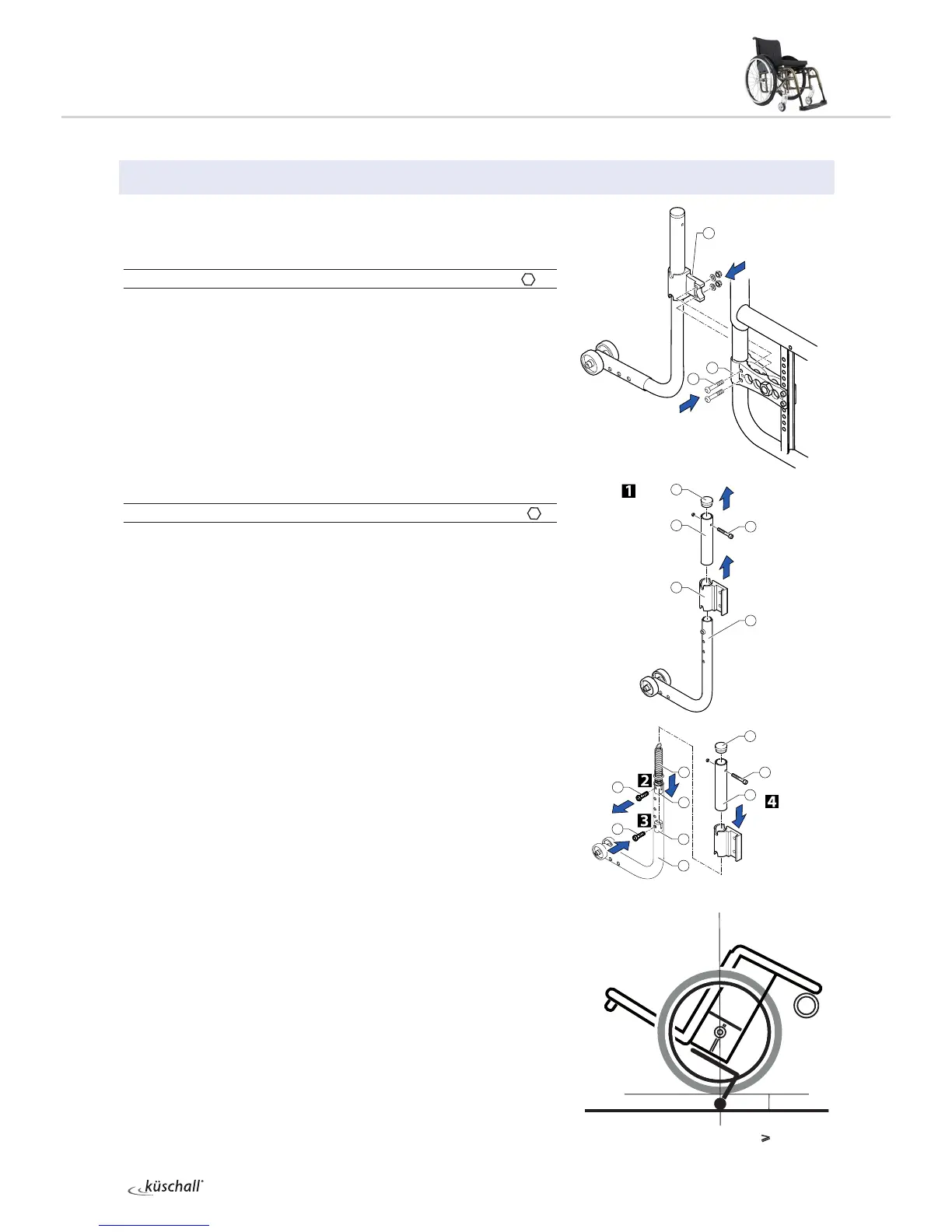

Antitipper
Fitting an antitipper
Diculty:
Tool:
à 5 10
Secure adaptation support with bolt onto the
adapter plate .
Height adjustment
Diculty:
Tool:
Ã4 8
1
Loosen bolt and remove the upper end of the antitipper and
the holder. Remove the sealing cap (e.g. push it out through
the tube using the screwdriver).
2
Loosen bolt of the antitipper tube and push sleeve into the
correct position.
3
Screw bolt in half way, position spring in sleeve and screw
bolt completely into the tube.
4
Put all the parts of the antitipper back together; in doing so pull
spring apart, e.g. using a wire hook, and secure it with
the top bolt .
Set the antitipper parallel to the wheel chair and tighten the bolts.
Function check:
The distance between the antitipper and the ground must be
50 - 70 mm. It must be easy to fold up the antitipper.
Tip the wheelchair backwards using the antitipper until the axle is
perpendicular to the antitipper’s point of contact with the ground. In
this position, the distance between the rear wheel and the ground
must be at least 50 mm.
2
3
1
1
3
4
2
5
2
7
6
1
3
8
5
7
6
x
x
50 mm
à 7 Nm
à 4 Nm
à 13 Nm
