KÜSCHALL COMPACT
© Invacare Corporation | 2018-07
Service Manual

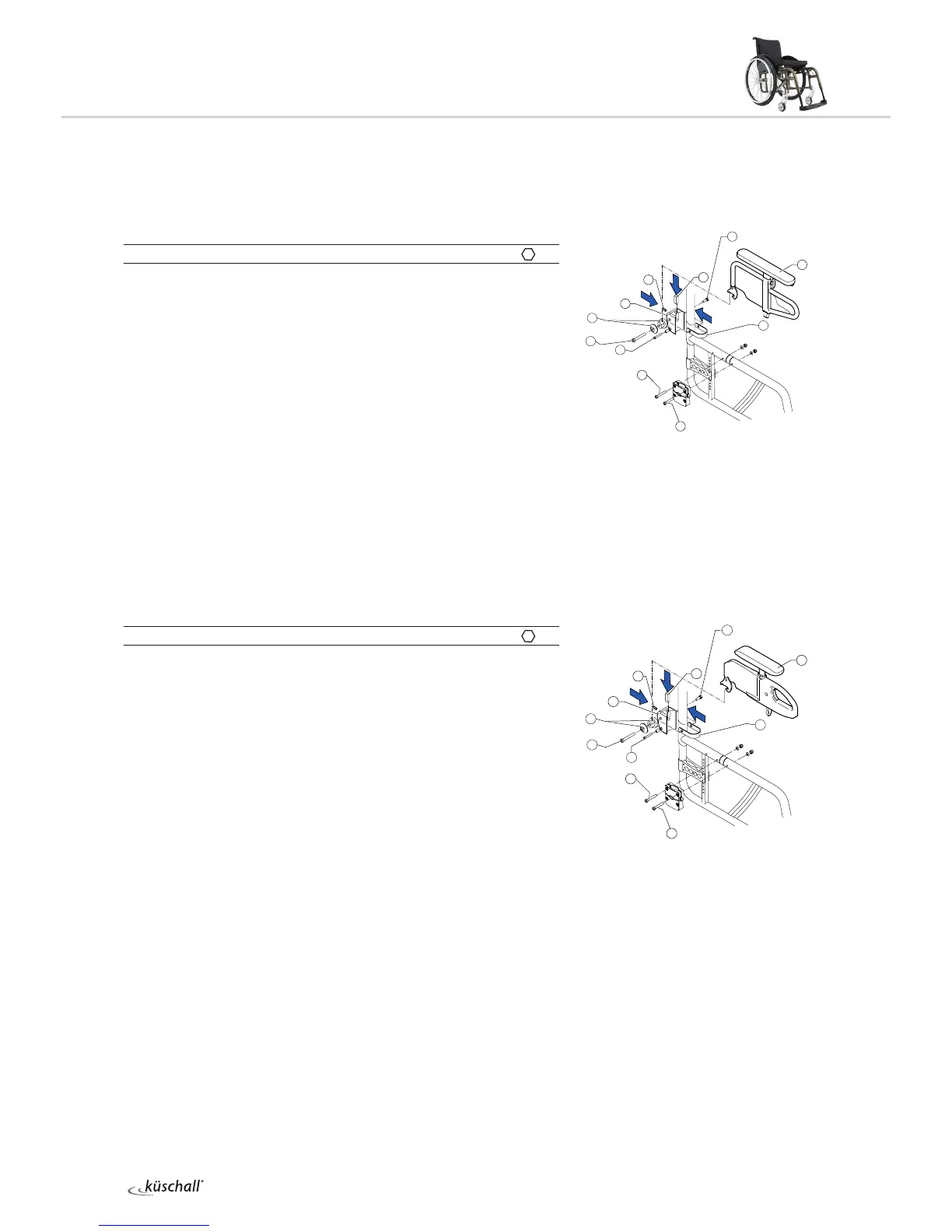

SIDE PARTS
Siderests
In general a torque of 7 Nm is used to fit the side rests.
Fitting a flip to back side rest in the frame colour
Diculty:

Tools:
à 3, 4, 5 10
Fit the side fastening element with bolt a .
For bolt b, bore a hole with a diameter of 6 mm through the
front frame (hole already made in the connecting tube) and fit bolt
b.
Screw the sleeve and bolt onto the rear fastening element .
Fit rear fastening element and clip loosely with bolts and
sleeves (normal rear frame: 17 mm beneath the upper edge of
the frame reinforcement, on a shortened rear frame, directly flush
with the upper edge of the frame reinforcement).
Mount the side rest , position rear fastening element precisely.
Attach the wedge and headless bolt .
i
The sleeves are dierent for flip to back side rest in frame colour
and flip to back side rest with engagement mechanism.
i
To enlarge the distance between the wheels additionally, a
dierent adapter sleeve, which is mounted from the inside, has to
be applied.
Fitting flip to back side rest with locking mechanism
Diculty:

Tools:
à 3, 4, 5 10
Fit the side fastening element with bolt a .
For bolt b, bore a hole with a diameter of 6 mm through the
front frame (hole already made in the connecting tube) and fit bolt
b.
Screw the sleeve and bolt onto the rear fastening element .
Fit rear fastening element and clip loosely with bolts and
sleeves (normal rear frame: 17 mm beneath the upper edge of
the frame reinforcement, on a shortened rear frame, directly flush
with the upper edge of the frame reinforcement).
Mount side rest , position rear fastening element precisely.
Attach the wedge and headless bolt .
i
The sleeves are dierent for flip to back side rest in frame colour
and flip to back side rest with engagement mechanism.
i
To enlarge the distance between the wheels additionally, a
dierent adapter sleeve, which is mounted from the inside, has to
be applied.
1a
2
3
4
5
6
8
8
7
9
1b
2
3
4
5
6
8
8
7
9
1a
1b
