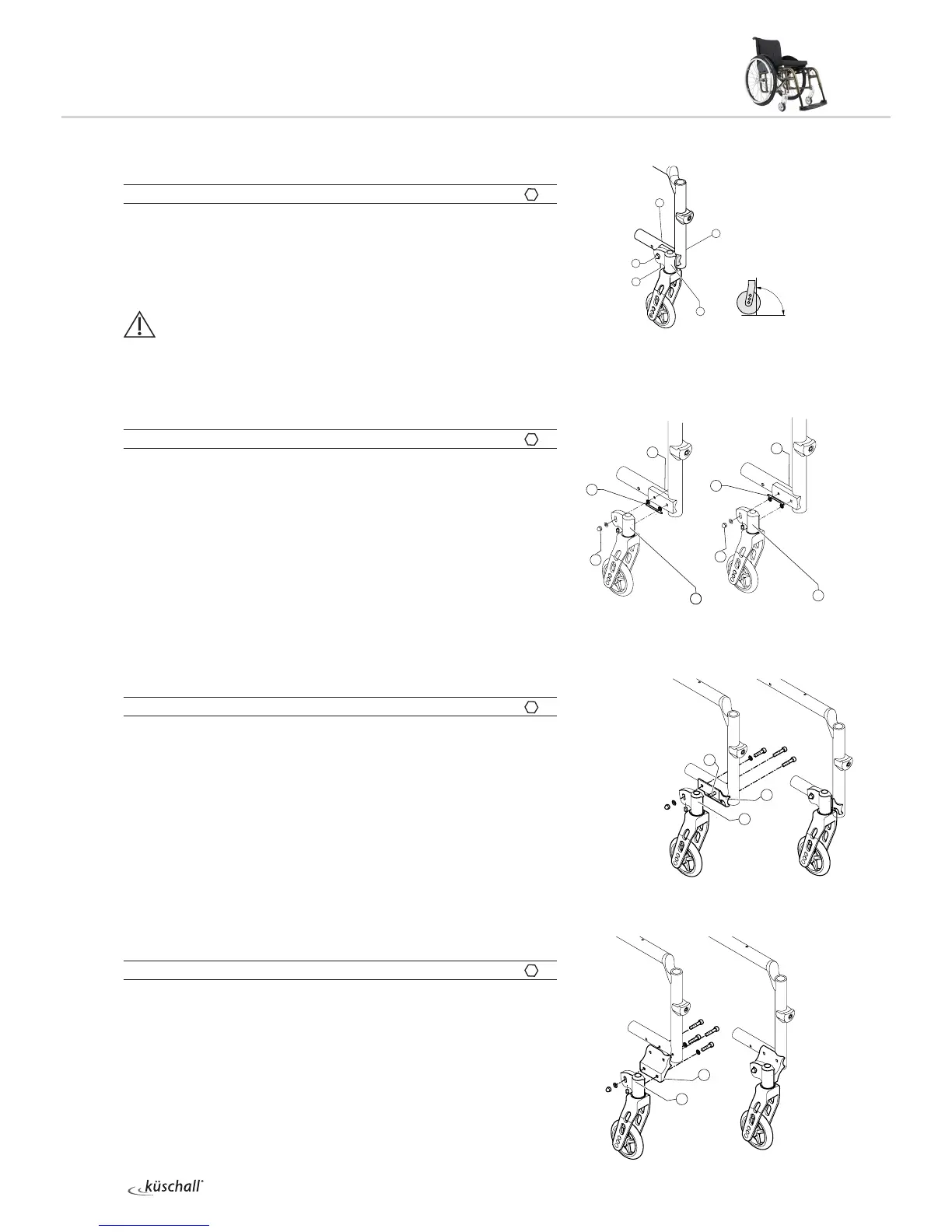

FRONT WHEELS
Setting the steering error angle
Diculty:

Tools:
Ã5 10

Loosen bolts  and nuts .

Hold spirit level against the clevis pin housing .

Turn the bolt  until the clevis pin housing is  vertical.

Retighten bolts  and nuts .
CAUTION!
It is important that the settings on the left and right are precisely
the same.
Correcting the trail angle
Diculty:

Tools:
Ã5 10

Loosen bolts  and nuts .

Remove clevis pin housing .

Attach adjustment template / (for toe-out: insert template at
the bottom , for toe-in: insert template at the top ).

Fit clevis pin housing .

Set the angle,  Chap. Front wheels; Setting the steering error
angel, Correcting the trial angel.
Special housing guides
Fitting special housing guide for smaller SHv (housing
guide, fitted high)
Diculty:

Tools:
Ã5 10

Remove clevis pin housing .

Remove standard housing guide.

Attach bolt .

Fit special housing guide  high.

Fit clevis pin housing .

Set the angle,  Chap. Front wheels; Setting the steering error
angel, Correcting the trial angel.
Fitting special housing guide for larger SHv
(housing guide, fitted low)
Diculty:

Tools:
Ã5 10

Remove clevis pin housing .

Remove standard housing guide.

Fit special housing guide  low.

Fit clevis pin housing .

Set the angle,  Chap. Front wheels; Setting the steering error
angel, Correcting the trial angel.
