Drum brake

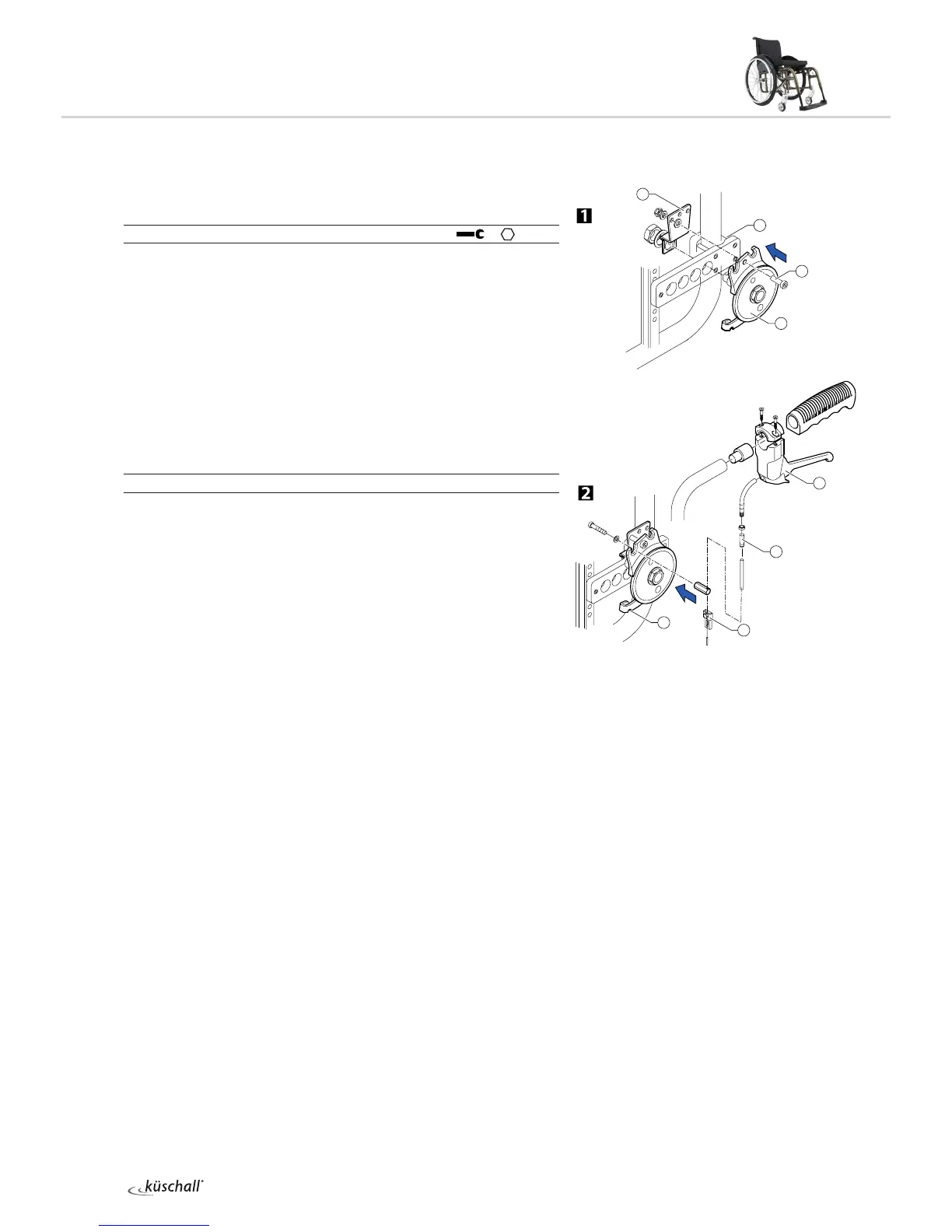

Fitting the drum brake
Diculty:
Tools:
à 4, Ò
9 10, 22
Remove standard adapter plate and replace with adapter plate
for drum brake, Chap. Rear wheels; Fitting adapter plate for drum
brake.
1
Fit the drum brake plate and rotary fixing to adapter plate .
Connect the drum brake plate and rotary fixing with bolt .
2
Fit brake lever on the push handle and secure Bowden cable
with fixing set.
Setting the drum brake
Diculty:
Tool:
Tighten or loosen the brake by turning the setting sleeve .
If the setting sleeve cannot be turned any further, demount
brake cable , loosen clamp bolt using the screwdriver and
retighten the cable.
1
4
3
2
5
6
7
8
à 7 Nm
