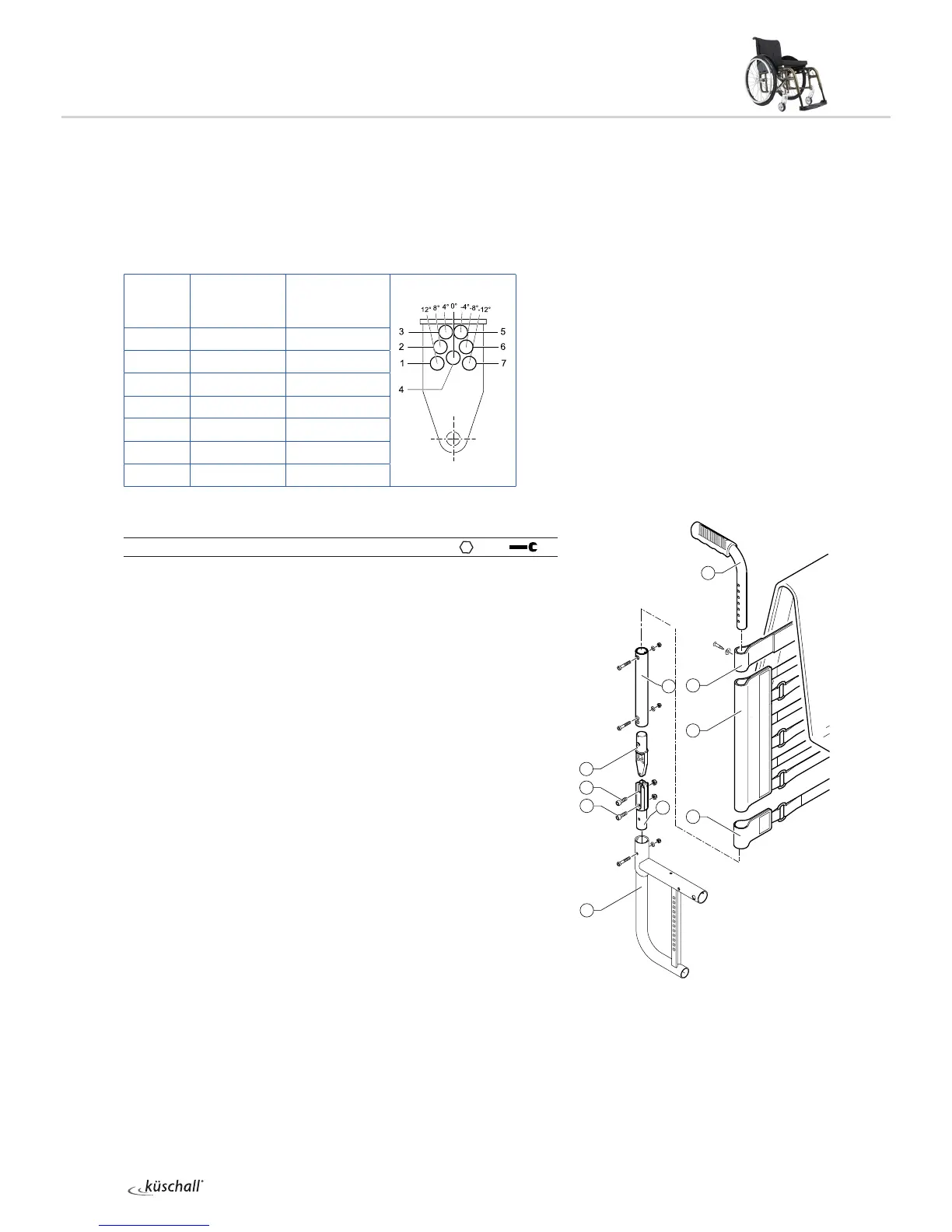

Angle-adjustable backrest
In order to make the backrest angle adjustable, an angle-adjustable
backrest can be fitted.
Backrest angle
Position
Deviation
from standard
backrests
Angle between
backrest and
seat
1 12° 102°
2 8° 98°
3 4° 94°
4 0° 90°
5 -4° 86°
6 -8° 82°
7 -12° 78°
Fitting an angle-adjustable backrest
Diculty:
Tools:
à 3, 4, 5 8, 10 10
Shorter rear frame (variant III) required.
Push the lower joint pin into the rear frame and fix it using a
bolt.
Secure backrest tube to the upper joint pin using a bolt.
Assemble the upper and lower joint pins and and secure
with bolt .
Retighten the bolt .
Set the desired backrest angle and secure in the nearest hole
using bolt .
Push the single hook and loop band and then the other hook
and loop bands and end band over the backrest tube .
Push the push handle into the telescopic tube and fix at the
required height.
Secure end band on the telescopic tube with a bolt.
1
2
3
6
4
5
9
10
7
8
à 13 Nm
à 13 Nm
