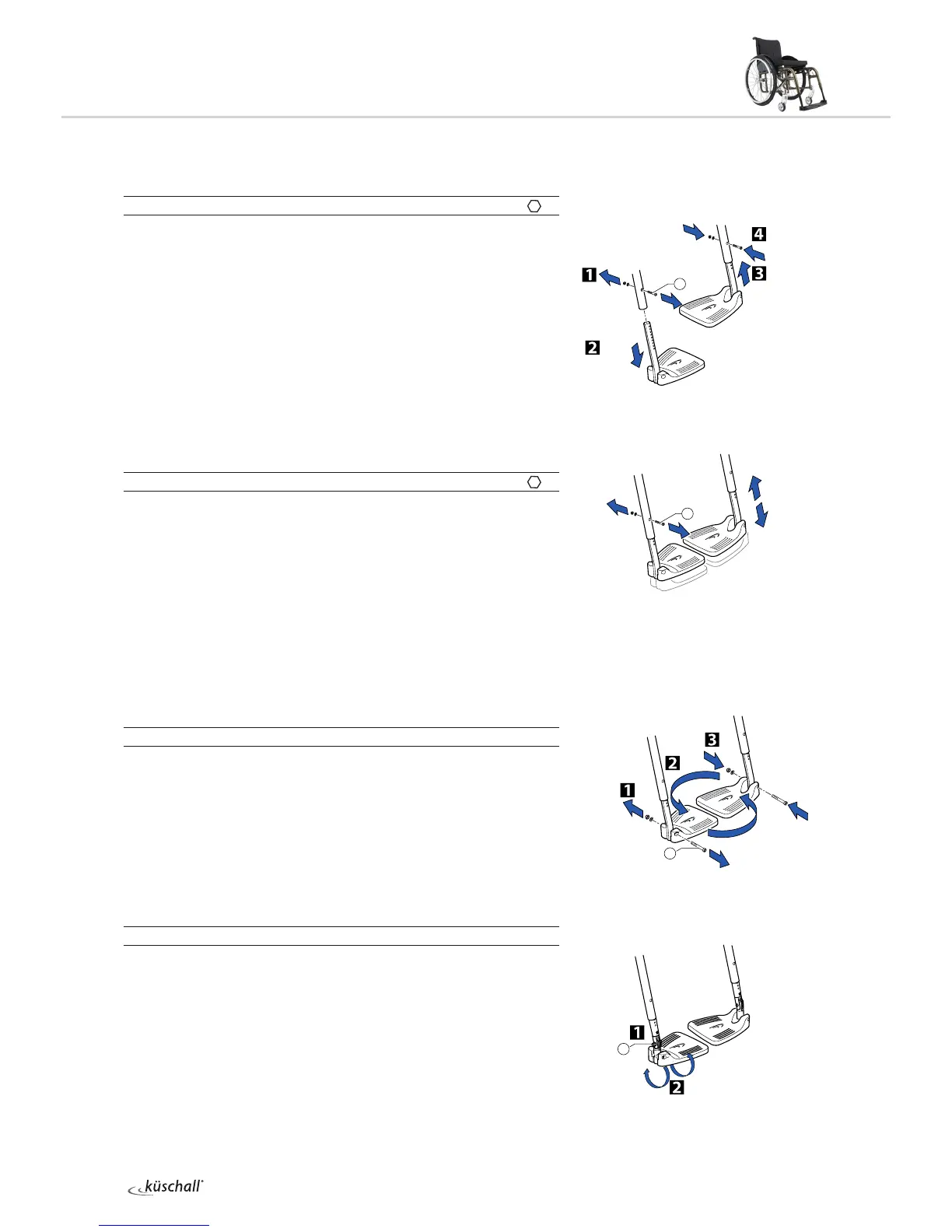

Two-piece footrest
Diculty:
Tools:
à 4 8
Disassembling/fitting footrests
1
Remove bolts on both sides.
2
Pull out footrests.
3
Push the new footplates into the frame and at the required
height.
4
Insert bolts into the nearest hole on both sides and at the
required height and tighten.
Adjusting the height of the footrests
Diculty:
Tools:
à 4, 8
Remove bolts .
Push the footplates into the required position.
Insert bolts into the nearest hole on both sides and at the
required height and tighten.
Changing the position of the footrests (set to rear –
set to front)
Diculty:
Tool:
à 5
1
Remove bolts .
2
Pull the footrests away downwards and replace.
3
Re-insert bolts and tighten.
Two-piece footrest, angle-adjustable
Adjusting the angle
Diculty:
Tool:
à 5
1
Loosen bolt .
2
Change the angle of the footrest until it reaches the required
position.
Retighten bolt .
1
1
1
1
à 4 Nm
à 4 Nm
à 7 Nm
à 13 Nm
