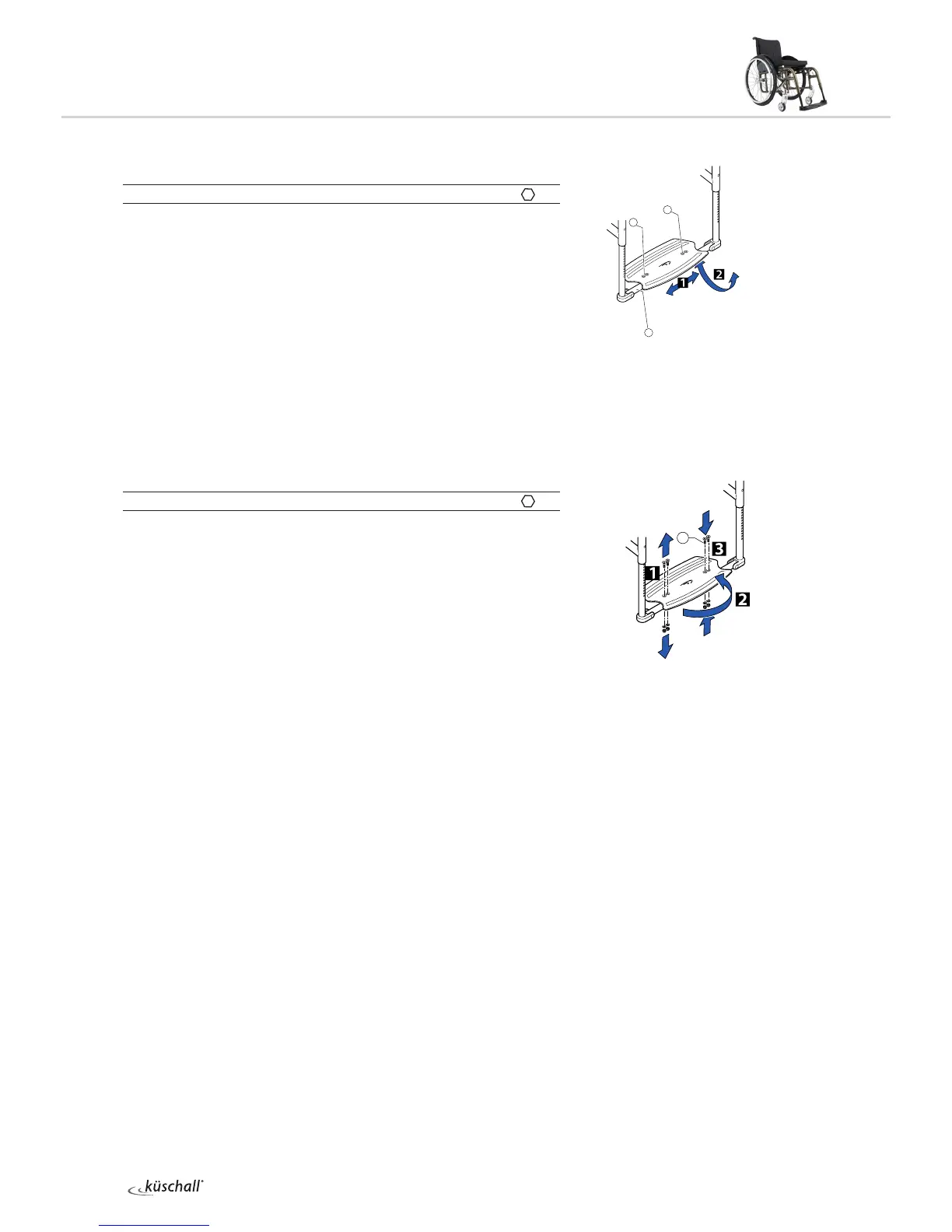

Centring and adjusting the angle
Diculty:
Tools:
à 4 10
Loosen bolts and slightly.
1
Set the same distance from the side tube to the footplate on both
sides.
2
Set the required footplate incline.
Re-tighten bolts (fixed side of the footplate).
Turn the little tube on the moving side of the footplate such that
it engages properly.
Tighten bolts .
Changing the position of the footrest (set to rear – set to
front)
Diculty:
Tools:
à 4 10
1
Loosen bolts on both sides and remove.
2
Turn the footplate with the clamp component.
3
Re-insert bolts and tighten.
1
2
3
1
à 13 Nm
à 13 Nm
à 13 Nm
