Replacing push handles / push handles and
backrest
If the push handles are replaced with a dierent type of push handles,
e.g. height-adjustable ones, it can happen that the rear frame must
also be replaced.
Changing the backrest height can also mean that the configuration of
the hook and loop bands must be changed.

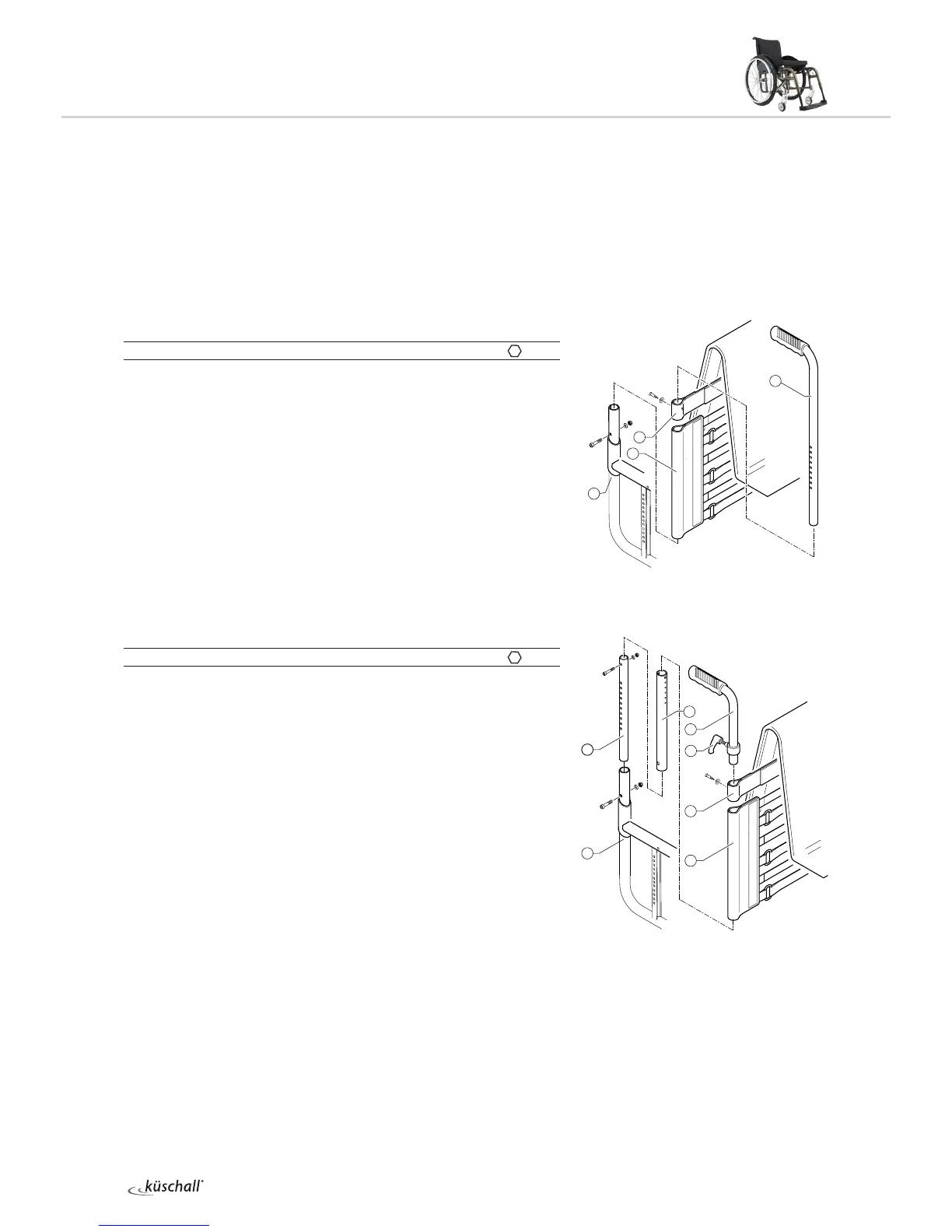

Fitting standard push handles
Diculty:
Tools:
Ò
à 3, 4, 5 8, 10
1
Secure the telescopic tube to the rear frame at the required
height.
2
Push the backrest bands and end band onto the telescopic
tube , end band first.
3
Secure end band on the telescopic tube with a bolt.
Fitting height adjustable integrated push handles
Diculty:
Tools:
Ò
à 3, 4, 5 8, 10
Special rear frame required for RH 300 – 465 (variant II)
Push lower telescopic tube and upper telescopic tube into
one another and insert bolt.
Secure pre-assembled element (telescopic tubes and ) at the
required height on the rear frame with a bolt (7 Nm).
Push the hook and loop bands and end band onto the
telescopic tubes.
Using the clamp bolt secure the height adjustable push
handles through the telescopic tube .
Push in push handle completely.
Secure end band on the telescopic tube with a bolt.
1
2
4
3
2
1
2
4
5
3
7
6
