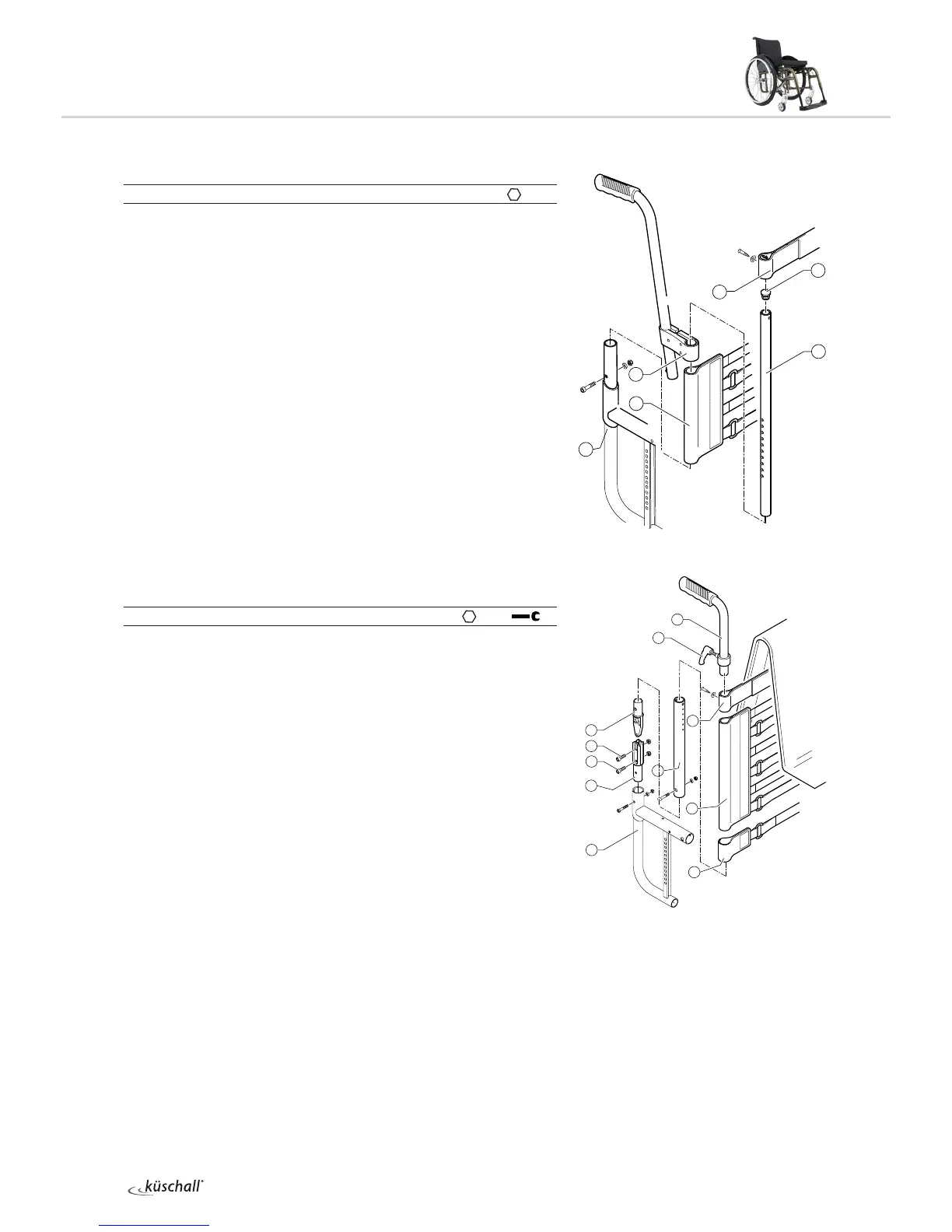

Fitting height adjustable, rear set push handles
Diculty:
Tools:
Ò
à 3, 4, 5 8, 10
The hook and loop bands may have to be replaced with narrower
ones, as space is required to secure the holder on the telescopic
tube.
Secure the telescopic tube to the rear frame at the required
height.
Press the cover cap onto the end of the telescopic tube.
Push the hook and loop bands onto the telescopic tube.
Push the holder onto the telescopic tube and fix in place by
tightening the clamp bolts.
Fit end band onto the telescopic tube and secure with a bolt.
Attach protective cushion.
Fitting angle-adjustable backrest with height-adjustable
push handles
Diculty:
Tools:
Ò
à 3, 4, 5 8, 10 10
Shorter rear frame (variant III) required.
Push the lower joint pin into the rear frame and fix it using
the bolts.
Fit backrest tube onto the upper joint pin using bolts.
Assemble the upper and lower joint pins and and secure
with a bolt .
Set the desired backrest angle and secure in the nearest hole
using a nut and bolt .
Retighten the bolt .
Push the single hook and loop band and then the other hook
and loop bands and end band over the backrest tube .
Push in push handle completely.
Using the clamp bolt a fit the height-adjustable push handles
through the telescopic tube .
Fit end band onto the telescopic tube with a bolt.
1
3
2
5
6
4
1
2
3
4
5
6
9
10
8
7
11
à 13 Nm
à 13 Nm
