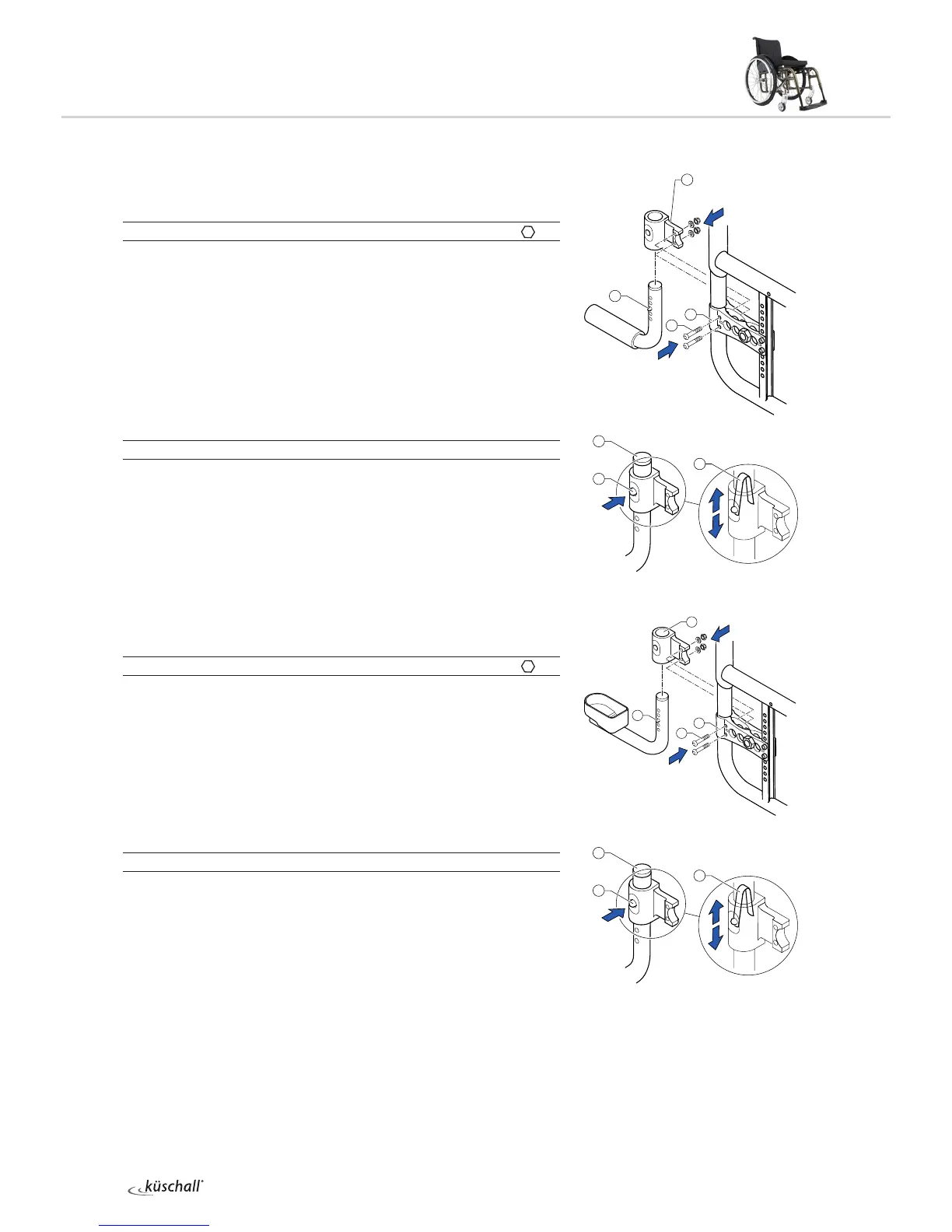

Tipper aid
Fitting the tipper aid
Diculty:
Tool:
à 5 10
Secure adaptation support with bolt onto adapter plate .
Push in spring clip and push the tipper aid into the adaptation
support.
Make sure that the spring clip is correctly engaged in the
adaptation support.
Height adjustment
Diculty:
To adjust the height, remove cap and, e.g. using a screwdriver,
compress the spring inside the tube and push into the required
position.
Cane holder
Fitting a cane holder
Diculty:
Tool:
à 5 10
Secure adaptation support with bolt onto adapter plate .
Push in spring clip and push the cane holder into the adaptation
support.
Make sure that the spring clip is correctly engaged in the
adaptation support.
Height adjustment
Diculty:
To adjust the height, remove cap and, e.g. using a screwdriver,
compress spring inside the tube and push into the required
position.
2
3
1
4
4
4
5
2
3
1
4
4
4
5
à 13 Nm
à 13 Nm
