42
KÜSCHALL COMPACT
© Invacare Corporation | 2018-07
Service Manual
OPTIONS & ACCESSORIES

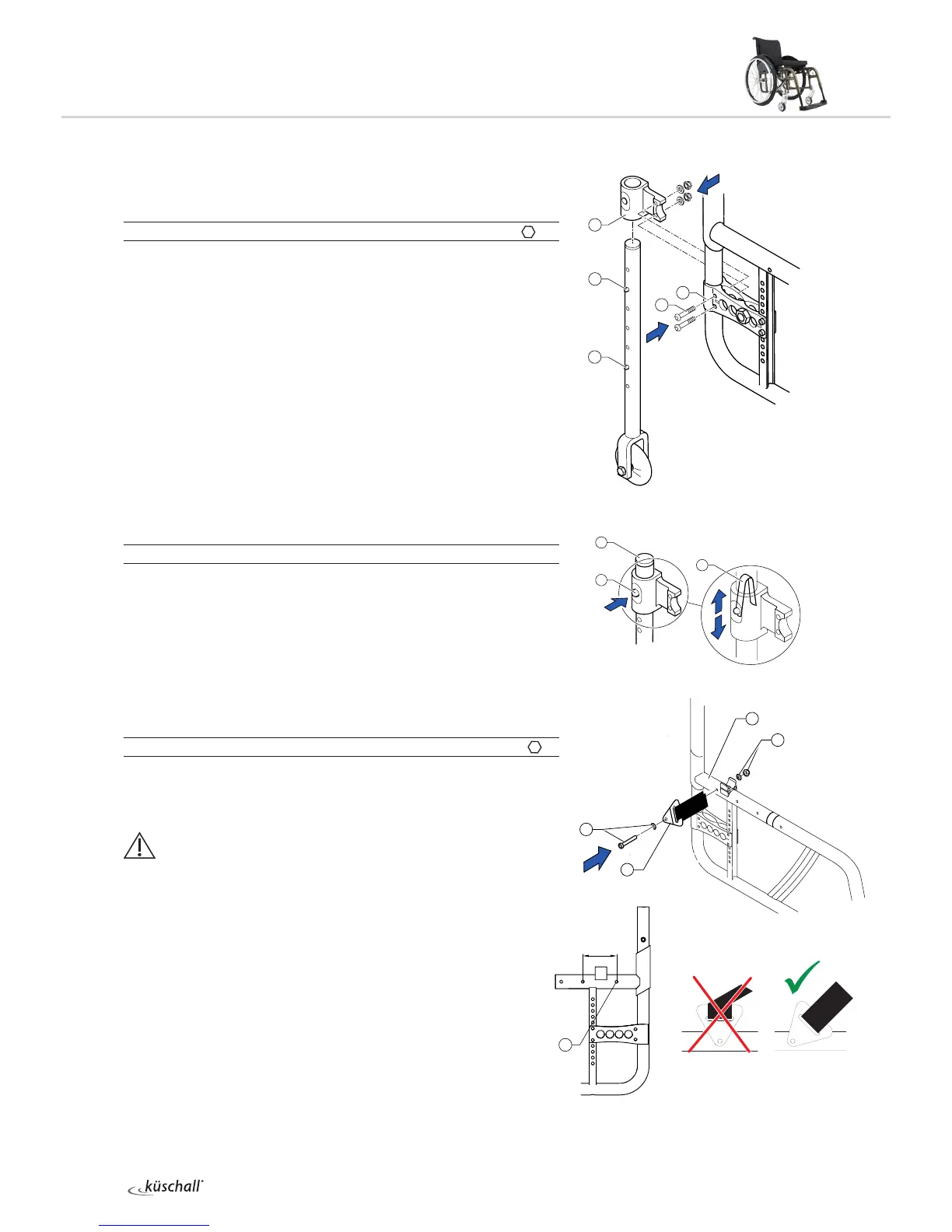

Transit wheels
Fitting transit wheels
Diculty:

Tool:
à 5, 10
Secure adaptation support with bolts onto adapter plate
. Push in spring clip and push the transit wheel into the
adaptation support.
Make sure that the spring clip is correctly engaged in the
adaptation support.
Height adjustment
Diculty:

To adjust the height, remove cap and, e.g. using a screwdriver,
compress spring inside the tube and push into the required
position..
i
To bring the transit wheels into the upper or lower position, the
spring clip must be pressed in.
Mounting the posture belt
Diculty: 
Tools: Drill, drill bit: 6 mm à 5 10
1. If not present, drill a hole on both sides through the frame .
2. Attach the steel strap using bolts through the holes on
both sides.
Ensure that the webbing of the posture belt is not twisted during
assembly and the locking mechanism shows towards the front.
2
3
4
1
4
4
4
5
à 13 Nm
1
3
3
2
4
60 mm
à 7 Nm
