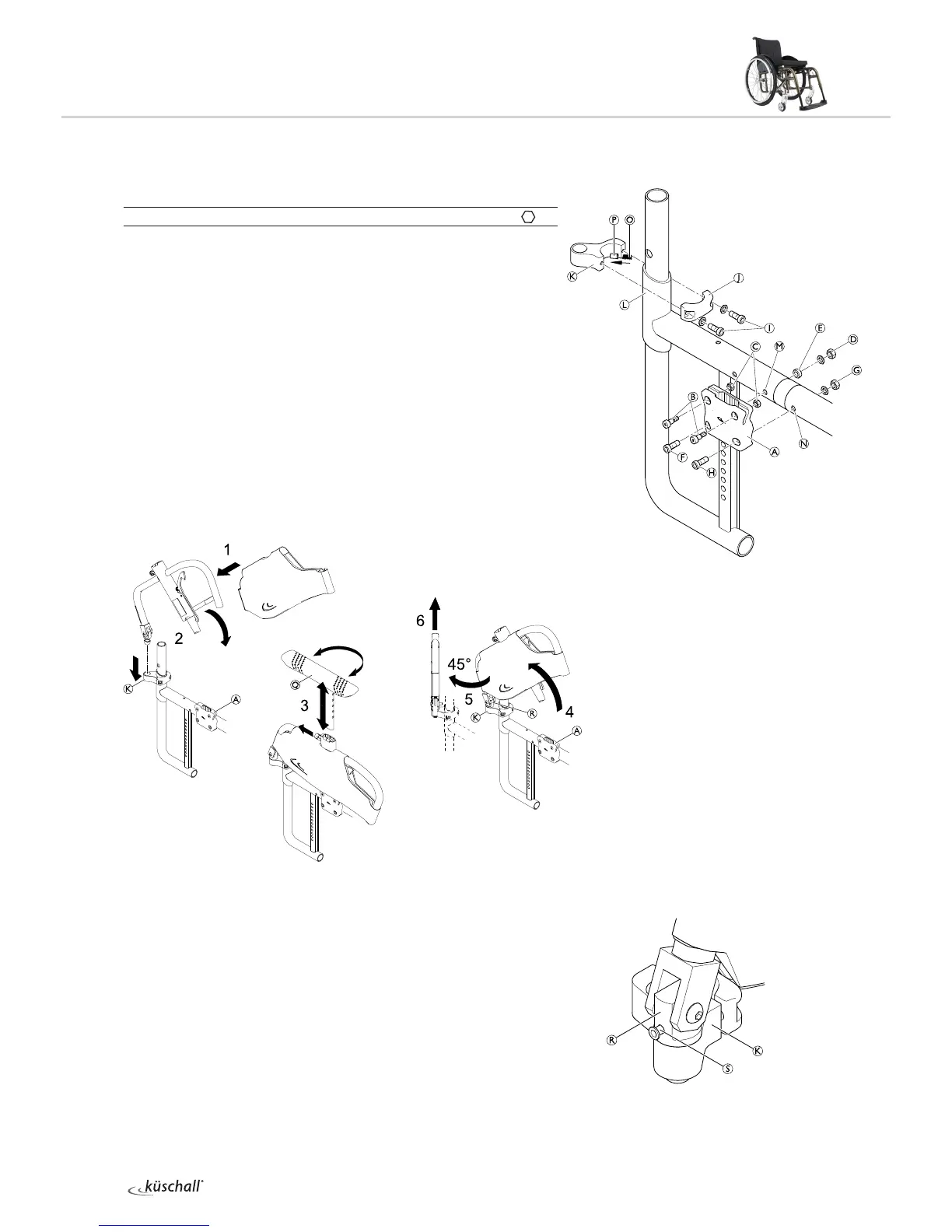

Fitting the küschall armrest
Mounting the armrest hardwear
Diculty:
Tools:
à 3, 4, 5 10
Insert nuts C and bolts B into the upper holes of the armrest
holder A and carefully tighten. Do not squeeze the holder.
Mount the armrest holder A to the rear frame hole M using bolt
F, sleeve E, washer and nut D.
Drill holes N with a diameter of 6 mm through the front frame
by inserting the drill bit through the free hole of the pre-mounted
armrest holder A.
Insert bolt H and tighten with washer and nut G.
Grease the pin P and Insert it with the spring O into the inner
hole of clamping part K and place it around the reinforced part L
of the rear frame.
Place the mating clamping part J around the rear frame and fix in
true alignement with washers and bolts I.
Installing/Removing the armrest, T-armrest pad and cover
Installing
1
Install the armrest cover to the armrest assembly.
2
Insert the armrest assembly into the joint K and swivel it
downwards so that it engages into the armrest holder A.
3
Install the T-armrest pad Q to the armrest assembly.
Removing
3
Remove the T-armrest pad from the armrest assembly.
4
Swivel the armrest assembly upwards out of the armrest holder A.
i
On the backside of the joint pin R there is a tapped hole with a
M5 stop screw S to define the stop of the armrest assembly when
swivelling backwards. Adjust the stop screw as required.
5
Swivel the armrest assembly 45° outwards.
6
Lift the armrest assembly out of joint K.
D à 7 Nm
G à 7 Nm
I à 4 Nm
