SIDE PARTS

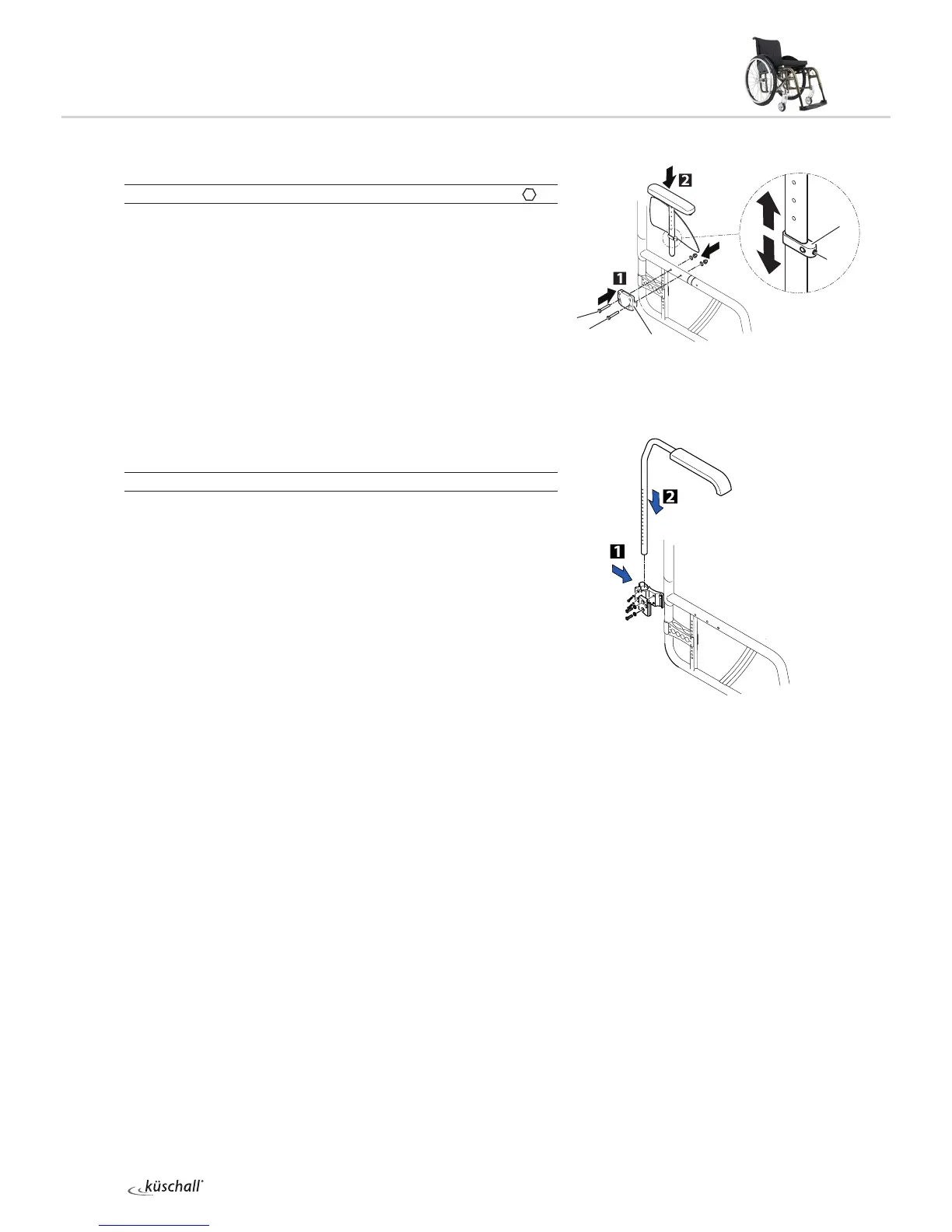

Fitting side rest insertable, continuously height-adjustable
Diculty:

Tools:
à 4, 5 10
1
Fit the side fastening element A with bolts B and C.
2
Insert side rest into the fastening element.
Adjusting the height

Slightly loosen the crub screw D on the adjustment plate E and
slide it along the armrest carrier until the armrest is at the desired
height.

Retighten the crub screw D.
Fitting a simple swivelling armrest
Diculty:

Tools:
à 4, 5
1
Fit the rear fastening element.
2
Insert the armrest.

Adjust height by adjusting the bolt in the tube of the armrest.
D
E
A
B
C
B à 4 Nm
C à 7 Nm
D à 4 Nm
