SIDE PARTS

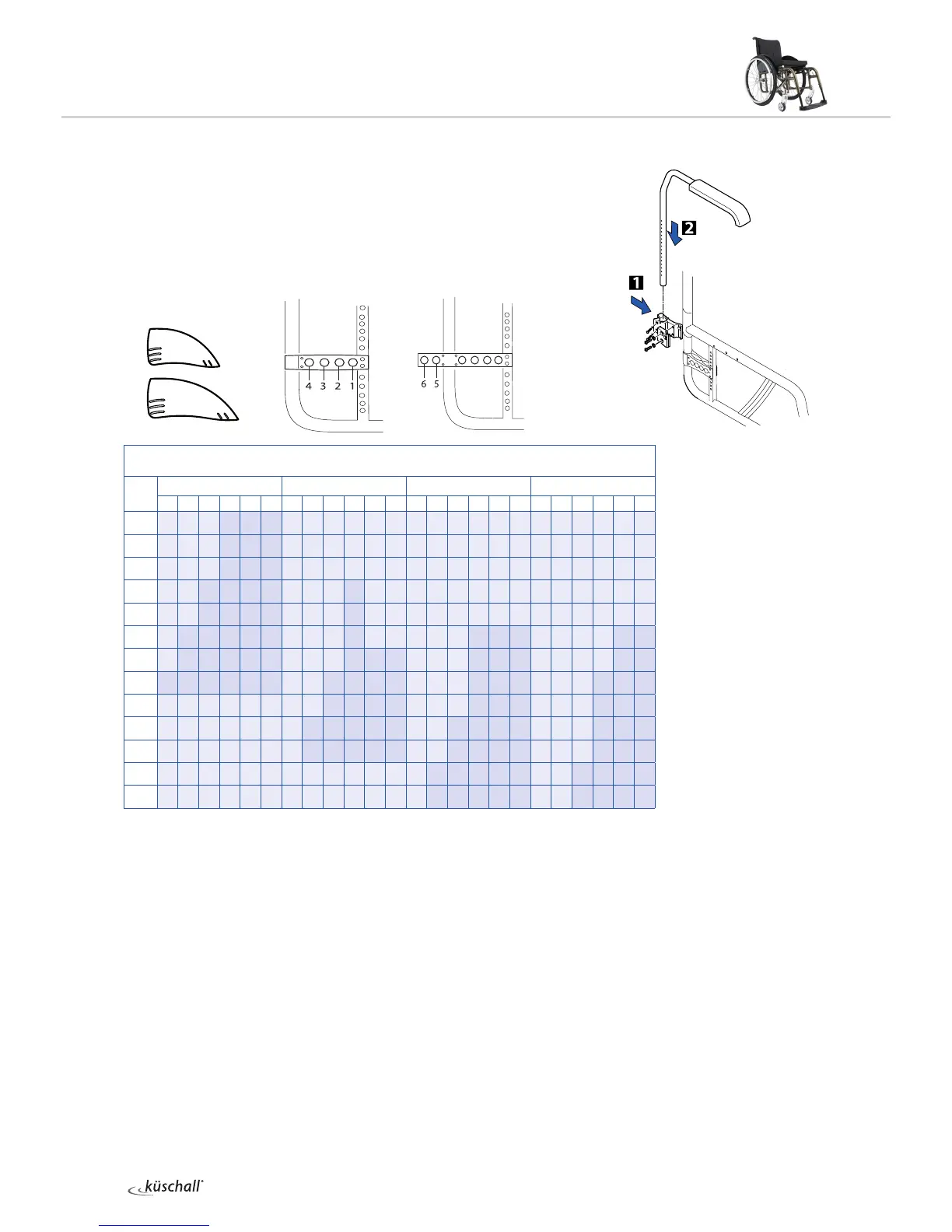

Fitting side rest insertable, continuously height-adjustable
Diculty:

Tools:
à 4, 5 10
1
Fit the side fastening element A with bolts B and C.
2
Insert side rest into the fastening element.
Adjusting the height

Slightly loosen the crub screw D on the adjustment plate E and
slide it along the armrest carrier until the armrest is at the desired
height.

Retighten the crub screw D.
Fitting a simple swivelling armrest
Diculty:

Tools:
à 4, 5
1
Fit the rear fastening element.
2
Insert the armrest.

Adjust height by adjusting the bolt in the tube of the armrest.
D
E
A
B
C
Size of the clothes guard/mudguard
The clothes guard and mudguard can be adjusted to suit the height
of the rear wheel exactly. Two sizes of each are available. For the re-
movable carbon mudguard there is an additional size (XL) for the two
smallest rear seat hights (SHh).
Clothes guard mounted fix:
Clothes guard with respect to the position of the rear wheels with standard adapter plate (Pos. 1
to 4) or rear wheel extension (Pos. 5 and 6)
SHh
[mm]
Rear wheel 22’’ Rear wheel 24’’ Rear wheel 25’’ Rear wheel 26’’
1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6
380 L L L S S S - - - - - - - - - - - - - - - - - -
390 L L L S S S L L L L L L - - - - - - - - - - - -
400 L L L S S S L L L L L L - - - - - - - - - - - -
410 L L S S S S L L L S L L L L L L L L - - - - - -
420 L L S S S S L L L S L L L L L L L L L L L L L L
430 L S S S S S L L L S L L L L L S S S L L L L S S
440 L S S S S S L L L S S S L L L S S S L L L L S S
450 S S S S S S L L S S S S L L L S S S L L L S S S
460 - - - - - - L L S S S S L L L S S S L L L S S S
470 - - - - - - L S S S S S L L S S S S L L L S S S
480 - - - - - - L S S S S S L L S S S S L L L S S S
490 - - - - - - - - - - - - L S S S S S L L S S S S
500 - - - - - - - - - - - - L S S S S S L L S S S S
123456
123456
L
S
