Service Manual

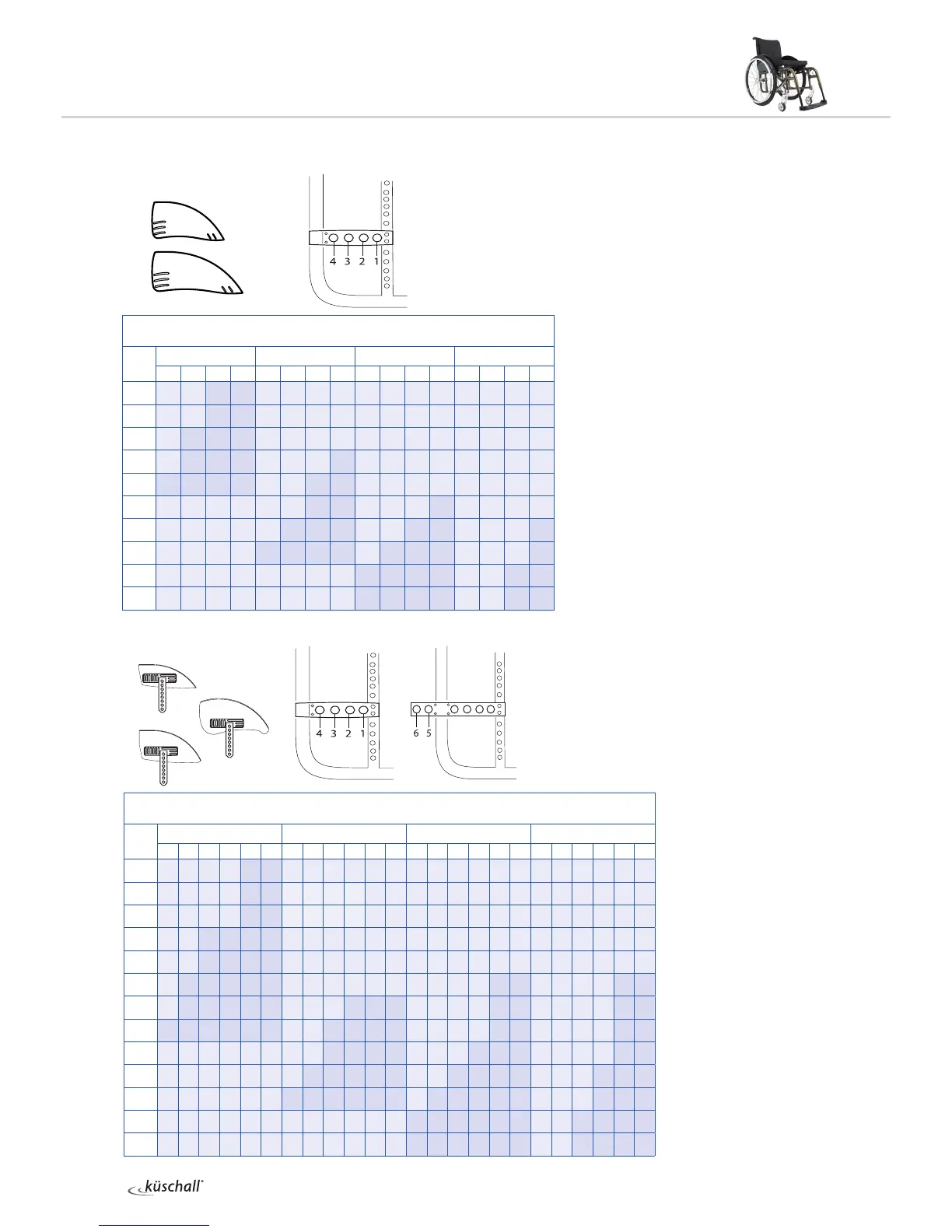

SIDE PARTS
Mudguard (removable) with respect to the position of the rear wheels with standard adapter
plate (Pos. 1 to 4) or rear wheel extension (Pos. 5 and 6)
SHh
[mm]
Rear wheel 22’’ Rear wheel 24’’ Rear wheel 25’’ Rear wheel 26’’
1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6
380 L L L L S S - - - - - - - - - - - - - - - - - -
390 L L L L S S XL XL XL XL L L - - - - - - - - - - - -
400 L L L L S S XL XL XL XL L L - - - - - - - - - - - -
410 L L S S S S XL L L L L L XL XL XL XL L L - - - - - -
420 L L S S S S L L L L L L XL XL XL XL L L XL XL XL XL L L
430 L S S S S S L L L L L L XL L L L S S XL XL XL XL S S
440 L S S S S S L L L S S S L L L L S S XL XL XL XL S S
450 S S S S S S L L S S S S L L L L S S XL XL XL L S S
460 - - - - - - L L S S S S L L L S S S XL XL XL L S S
470 - - - - - - L S S S S S L L S S S S L L L S S S
480 - - - - - - S S S S S S L S S S S S L L L S S S
490 - - - - - - - - - - - - S S S S S S L L L S S S
500 - - - - - - - - - - - - S S S S S S L L S S S S
L
S
123456
123456
123456
Mudguard (mounted fix) with respect to the position of the rear wheels with
standard adapter plate (Pos. 1 to 4)
SHh
[mm]
Rear wheel 22’’ Rear wheel 24’’ Rear wheel 25’’ Rear wheel 26’’
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
410 L L S S L L L L L L L L - - - -
420 L L S S L L L L L L L L L L L L
430 L S S S L L L L L L L L L L L L
440 L S S S L L L S L L L L L L L L
450 S S S S L L S S L L L L L L L L
460 - - - - L L S S L L L S L L L L
470 - - - - L S S S L L S S L L L S
480 - - - - S S S S L S S S L L L S
490 - - - - - - - - S S S S L L S S
500 - - - - - - - - S S S S L L S S
L
XL
S
Mudguard mounted fix:
Mudguard removable:
