22
KÜSCHALL COMPACT
© Invacare Corporation | 2018-07
Service Manual

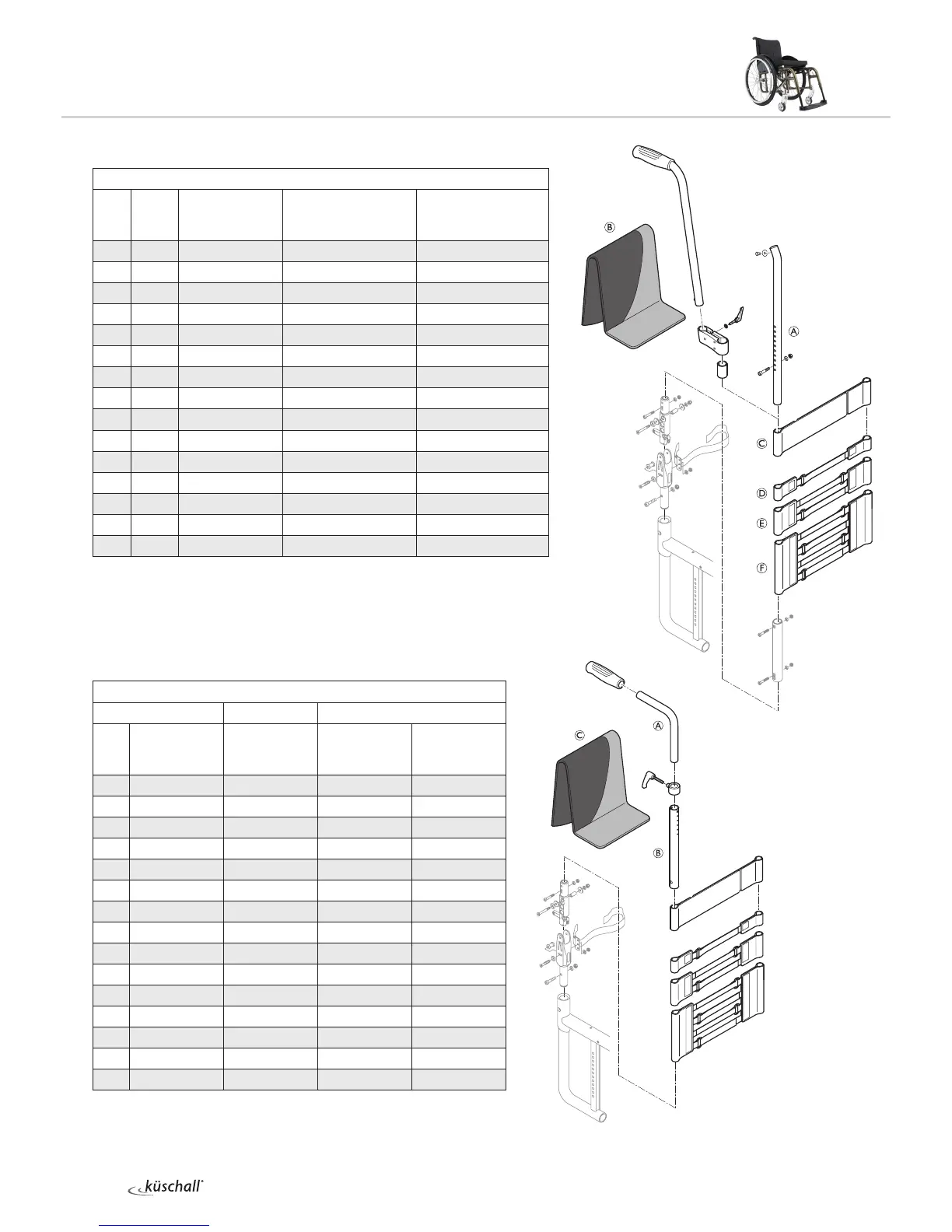

BACKREST
Foldable backrest with high adjustable push handles, rearset:
Backrest height (RH) with respect to cover, backrest tubes*, bands
RH
Cover
B
Telescopic
tube A
Bands (without
stabilizing bar,
endband C = 10cm)
Bands (with
stabilizing bar,
endband C = 5cm)
300 - -
-
-
315 - - - -
330 - - - -
345 M S 2x1-band D -
360 M S 2x1-band -
375 M S 2x1-band -
390 M S 2x1-band -
405 M S 1-band + 2-band E 1-band + 2-band
420 L S 1-band + 2-band 1-band + 2-band
435 L L 1-band + 2-band 1-band + 2-band
450 L L 2x2-band 2x2-band
465 L L 2x2-band 2x2-band
480 L L 2x2-band 2x2-band
495 L L 1-band + 2x2-band 1-band + 2x2-band
510 L L 1-band + 2x2-band 1-band + 2x2-band
*
Backrest tubes lumbar possible from RH360
Foldable backrest with high adjustable push handles, integrated:
Backrest height (RH) with respect to cover, backrest tubes, bands*
Push handle A
RH Cover C
Backrest tube
B
Telescopic
tube
(82°,86°,90°)
Telescopic
tube lumbar
(94°,98°)
300 - - - -
315 - - - -
330 - - - -
345 M S S S
360 M S S S
375 M S S S
390 M M L S
405 M M L S
420 L M L S
435 L M L S
450 L M L L
465 L L L L
480 L L L L
495 L L L L
510 L L L L
* For bands configuration, see table „Foldable backrest with
standard push handles“.
For foldable backrests additionally a band is fixed close to the backrest joint. The band is of dierent length according
to the seat width (SB): SB 280 - 360 short / SB 380 - 440 medium / SB 460 - 500 long
