12
KÜSCHALL COMPACT
© Invacare Corporation | 2018-07
Service Manual
SEAT

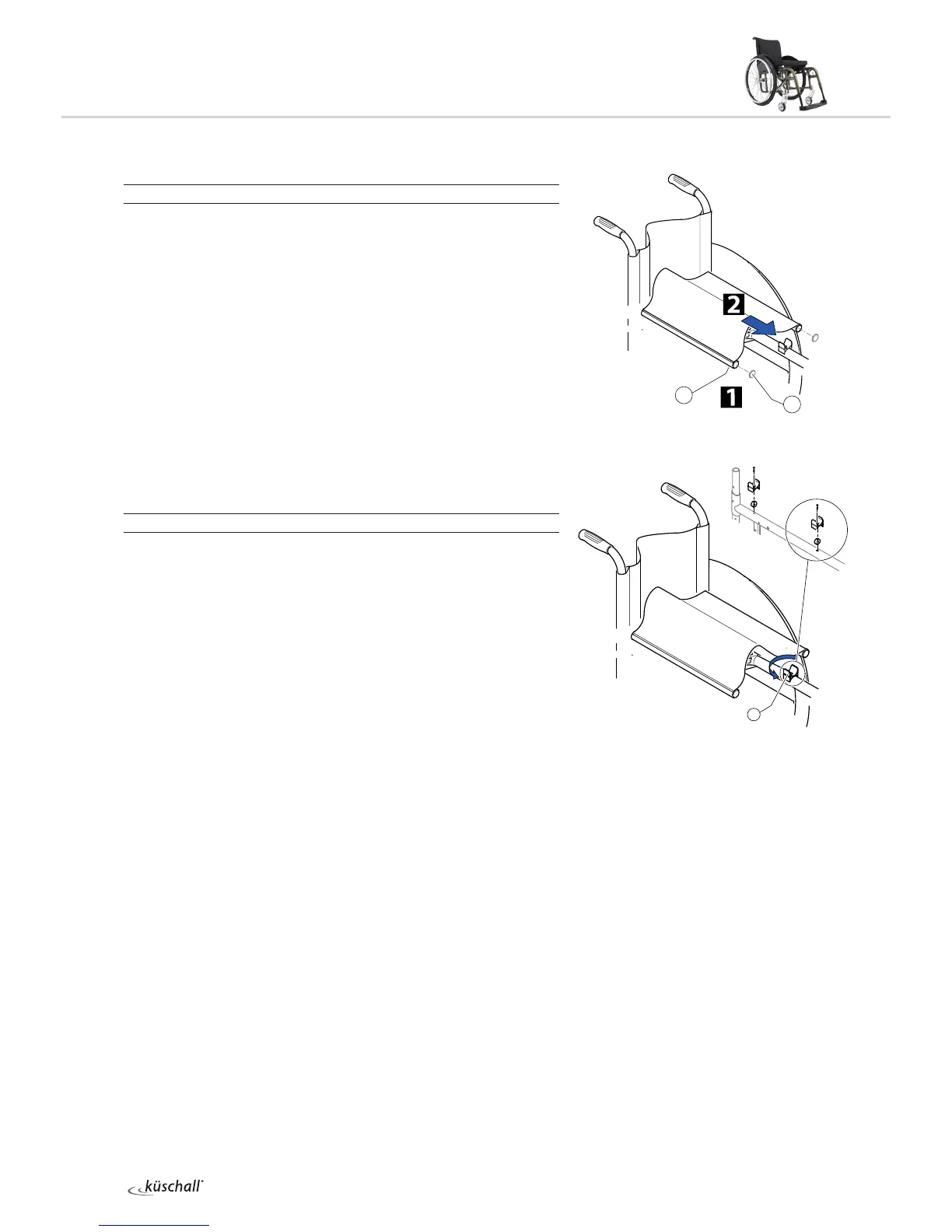

Replacing the seat cover
Diculty:

Tool:
ß 10
1
Loosen bolts and remove plug .
2
Remove seat cover including plastic rods.
Position new seat cover. Adjust seat cover to width SB + 25 mm.
Retighten bolts and plug .
Turning the seat locking mechanism
If the seat edge can be too easily removed from the seat locking
mechanisms, either the front two or all four seat locking mechanisms
can be rotated by 180°:
Diculty:

Tool:
à 3
Loosen bolt in seat locking mechanism .
Turn seat locking mechanism by 180°.
Secure bolt with adhesive (low-strength).
Retighten the bolt.
i
Screw out the bolt only to the extent that the seat locking
mechanism can be turned as otherwise the threaded insert can
move and is then dicult to re-position.
1
2
1
à 4 Nm
à 4 Nm
