20
KÜSCHALL COMPACT
© Invacare Corporation | 2018-07
Service Manual

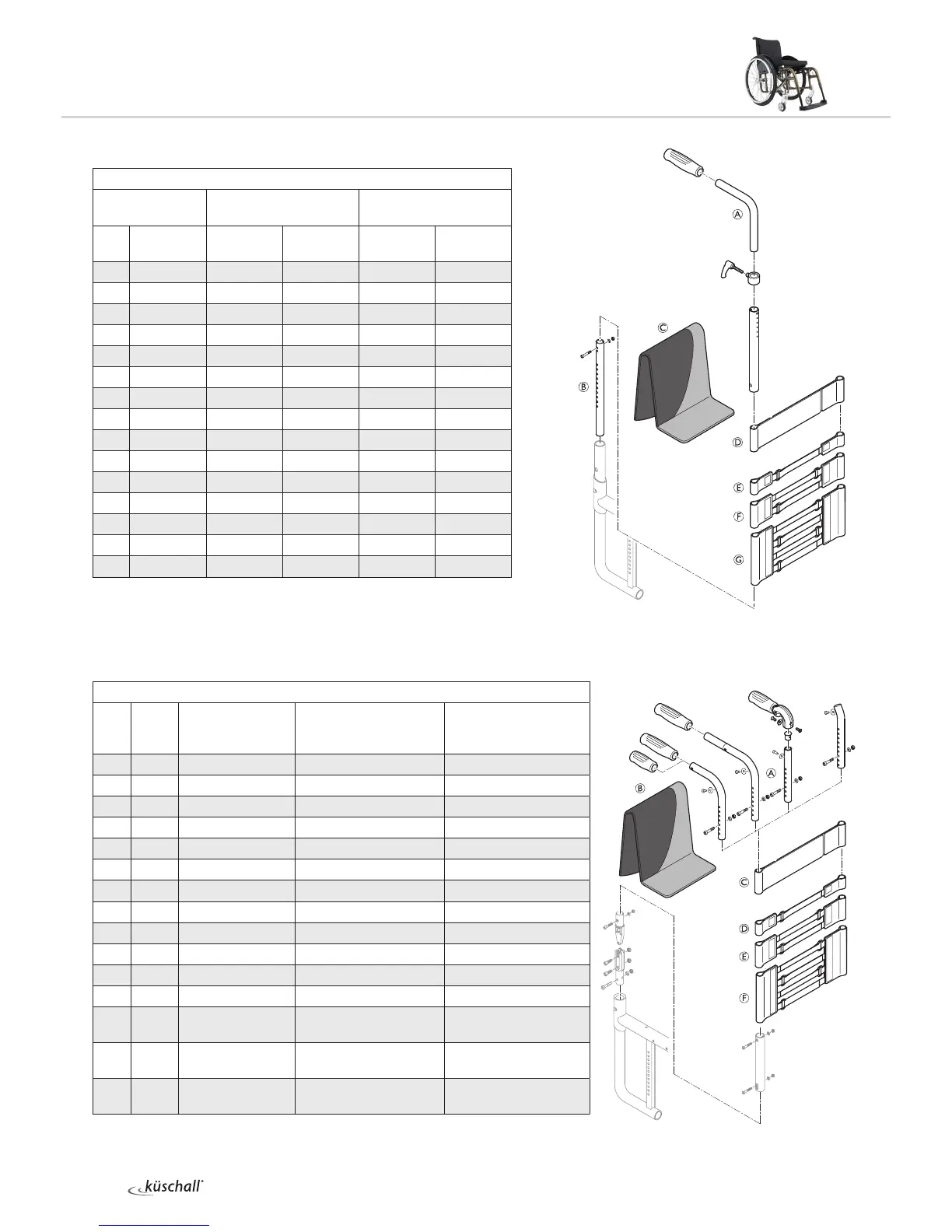

BACKREST
Fixed backrest with high adjustable push handles, integrated:
Backrest height (RH) with respect to cover, backrest tubes, bands*
Telescopic tube
(straight)
Telescopic tube (lumbar)
RH Cover C
Backrest
tube B
Push
handle A
Backrest
tube B
Push
handle A
300 S S S S S
315 S S S S S
330 S S S S S
345 M S S S S
360 M S S S S
375 M S L S S
390 M S L S S
405 M S L M S
420 L S L M S
435 L S L M L
450 L S L M L
465 L S L M L
480 L S L M L
495 L M L M L
510 L M L M L
*For bands configuration, see table „Fixed backrest with standard push handles“.
Angle adjustable backrest with standard/mini pushandles, foldable push handles* or without pushandles:
Backrest height (RH) with respect to cover, backrest tubes, bands
RH
Cover
B
Telescopic tube A
Bands (without
stabilizing bar,
endband C = 10cm)
Bands (with stabilizing
bar, endband C = 5cm)
300 S S
1-band D + 2-band E
-
315 S S 1-band + 2-band -
330 S S 2 x 2-band -
345 M S 2 x 2-band -
360 M S 2 x 2-band -
375 M S 1-band + 2x2-band -
390 M L 1-band + 2x2-band -
405 M L 1-band + 4-band F 1-band + 4-band
420 L L 1-band + 4-band 2-band + 4-band
435 L L 1-band + 4-band 2-band + 4-band
450 L L 2-band + 4-band 2-band + 4-band
465 L L 2-band + 4-band 2-band + 4-band
480 L L 2-band + 4-band
1-band + 2-band
+ 4-band
495 L L 2-band + 4-band
1-band + 2-band
+ 4-band
510 L L
1-band + 2-band
+ 4-band
1-band + 2-band
+ 4-band
* Stabilization bar not possible for foldable push handles
