16
DIRECTV – SWM Wiring
Follow these steps to connect DIRECTV receivers
to the TracVision system.
Connecting 1 SWM Receiver/DVR
Connect an RF cable from the “Signal to IRD”
connector on the SWM power inserter to the
“Satellite In” jack on the receiver (see Figure 25).
Connecting Up to 8 SWM Receivers (13 Tuners Max)
a. Connect an RF cable from the “Signal to IRD”
connector on the SWM power inserter to the
“SWM” input on an 8-way SWM splitter (see
Figure 26).
b. Connect the SWM splitter’s outputs to the
“Satellite In” jack on the receivers/DVRs (or
“Network” jack when connecting a Genie
client). You can connect up to 8 SWM devices
that add up to 13 or fewer tuners. Refer to
Figure 26 to determine the tuners consumed by
each type of device.
NOTE: HR34 and HR44 Genies both reserve 5 tuners.
The HR54 Genie reserves 7 tuners.
c. Terminate any unused outputs on the splitter
with 75terminators and tighten with a
7/16" torque wrench set to 20 in.-lbs.

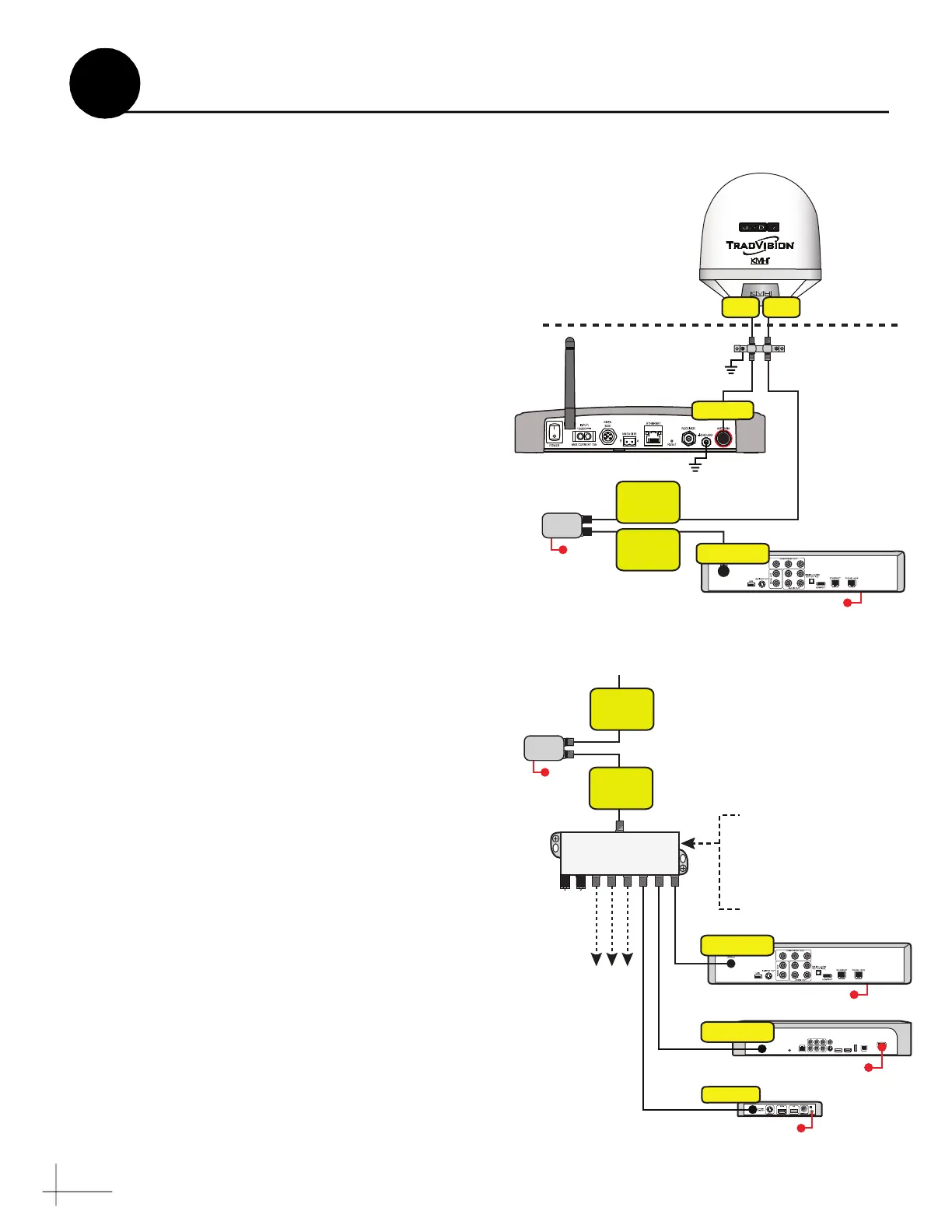

Figure 25: Wiring 1 DIRECTV Receiver
AC Power
SWM Receiver
Deck
TV-Hub
Satellite In
RF1
Antenna
AC Power
SWM Power
Inserter
SIGNAL
TO IRD
POWER
TO SWM
Grounding
Block
RF2
Antenna
Figure 26: Wiring Up to 8 DIRECTV Receivers
AC Power
SWM Receiver/DVR
Satellite In
SWM Splitter
AC Power
SWM Power
Inserter
SIGNAL
TO IRD
POWER
TO SWM
Note: Connect any combination of receivers, DVRs, and
Genie clients that add up to 13 or fewer tuners on the
RF2 cable. Only 3 Genie clients can be active at one time.
Terminate
unused
outputs
Supports up to 13 tuners:
Each SWM receiver = 1 tuner
Each SWM DVR = 2 tuners
Each Genie DVR = 5 or 7 tuners
Each Genie client = 0 tuners
Genie DVR
Genie Client
Network
R
AUDIO OUT
L
PrPbY
VIDEO OUT S-VIDEO OUT
DIGITAL
AUDIO OUT
ETHERNET
SATELLITE IN 1
IR RECEIVE SATA HDMI PHONE JACK
POWER INPUT
USB
COMPONENT VIDEO OUT
AC Power
AC Power
Satellite In
Continued Wire the Receivers
12
To Next Page
