17
Connecting 9 -13 SWM Receivers (13 Tuners Max)
a. Connect an RF cable from the “Signal to IRD”
connector on the SWM power inserter to the
“SWM” input on a 2-way SWM splitter (see
Figure 27).
b. Connect the 2-way SWM splitter’s outputs to
the “SWM” inputs on two 8-way SWM splitters.
c. Connect the 8-way SWM splitter’s outputs to
the “Satellite In” jacks on the receivers/DVRs
(or “Network” jack when connecting a Genie
client). Connect any combination of SWM
devices that add up to 13 or fewer tuners. Refer
to Figure 27 to determine the tuners consumed
by each type of device.
NOTE: HR34 and HR44 both reserve 5 tuners. The
HR54 reserves 7 tuners.
d. Terminate any unused outputs on the splitters
with 75terminators and tighten with a
7/16" torque wrench set to 20 in.-lbs.
When wiring the receivers, be sure to keep the
number of splits to no more than two per path.
IMPORTANT!

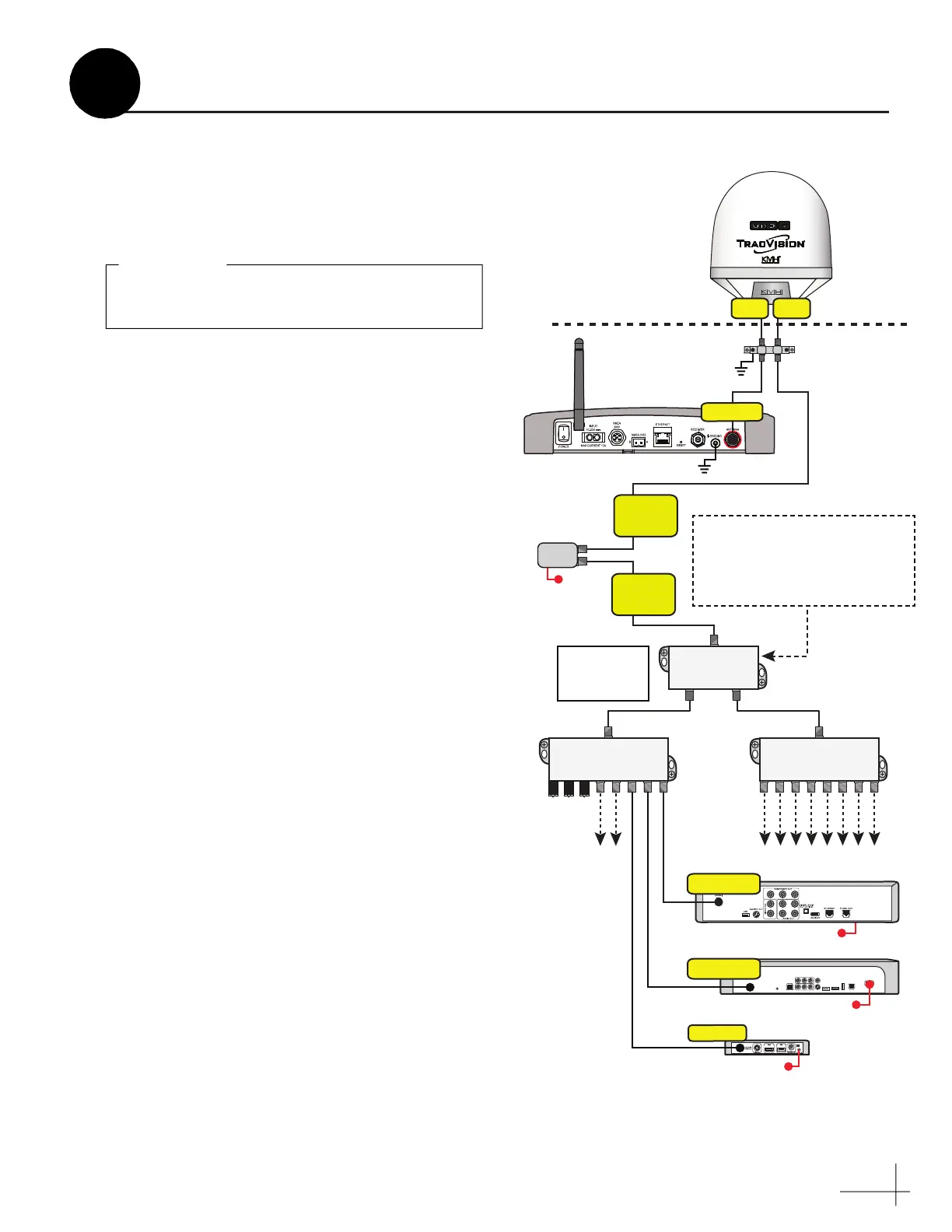

Figure 27: Wiring Up to 13 DIRECTV Receivers
Terminate
unused
outputs
SWM 8-way
Splitter
SWM 8-way
Splitter
SWM 2-way
Splitter
Maximum of
two splitters
per path
Deck
TV-Hub
Supports up to 13 tuners:
Each SWM receiver = 1 tuner
Each SWM DVR = 2 tuners
Each Genie DVR = 5 or 7 tuners
Each Genie client = 0 tuners
AC Power
SWM Receiver/DVR
Satellite In
Note: Connect any combination of receivers, DVRs, and
Genie clients that add up to 13 or fewer tuners on the
RF2 cable. Only 3 Genie clients can be active at one time.
Genie DVR
Genie Client
Network
R
AUDIO OUT
L
PrPbY
VIDEO OUT S-VIDEO OUT
DIGITAL
AUDIO OUT
ETHERNET
SATELLITE IN 1
IR RECEIVE SATA HDMI PHONE JACK
POWER INPUT
USB
COMPONENT VIDEO OUT
AC Power
AC Power
Satellite In
Antenna
AC Power
SWM Power
Inserter
SIGNAL
TO IRD
POWER
TO SWM
RF2
Grounding
Block
RF1
Antenna
Continued Wire the Receivers
12
To Next Page
