KVH Industries TracVision UHD7 Installation Guide

18
Connecting 14-26 SWM Receivers (26 Tuners Max)
a. First connect up to 13 receivers to the antenna’s
RF2 cable, as explained in “Connecting 9 -13
SWM Receivers (13 Tuners Max)” on page 17.
NOTE: Only use DIRECTV-approved SWM splitters.
Additional 2-way (KVH part no. 19-1016), 4-way
(19-1017), and 8-way (19-0618) SWM splitters are
available.
b. Connect the RF3 cable to any combination of
2-, 4-, and/or 8-way SWM splitters, as
necessary. Do not exceed two splitters per
path.
c. Connect the SWM splitter’s outputs to the
“Satellite In” jacks on the receivers/DVRs (or
“Network” jack when connecting a Genie
client). You can connect any combination of
SWM devices that add up to 13 or fewer tuners
on RF2 and up to 13 or fewer tuners on RF3
(26 total). Refer to Figure 28 to determine the
tuners consumed by each type of device.
d. Terminate any unused outputs on the splitters
with 75terminators and tighten with a
7/16" torque wrench set to 20 in.-lbs.
When wiring the receivers, be sure to keep the
number of splits to no more than two per path.
IMPORTANT!

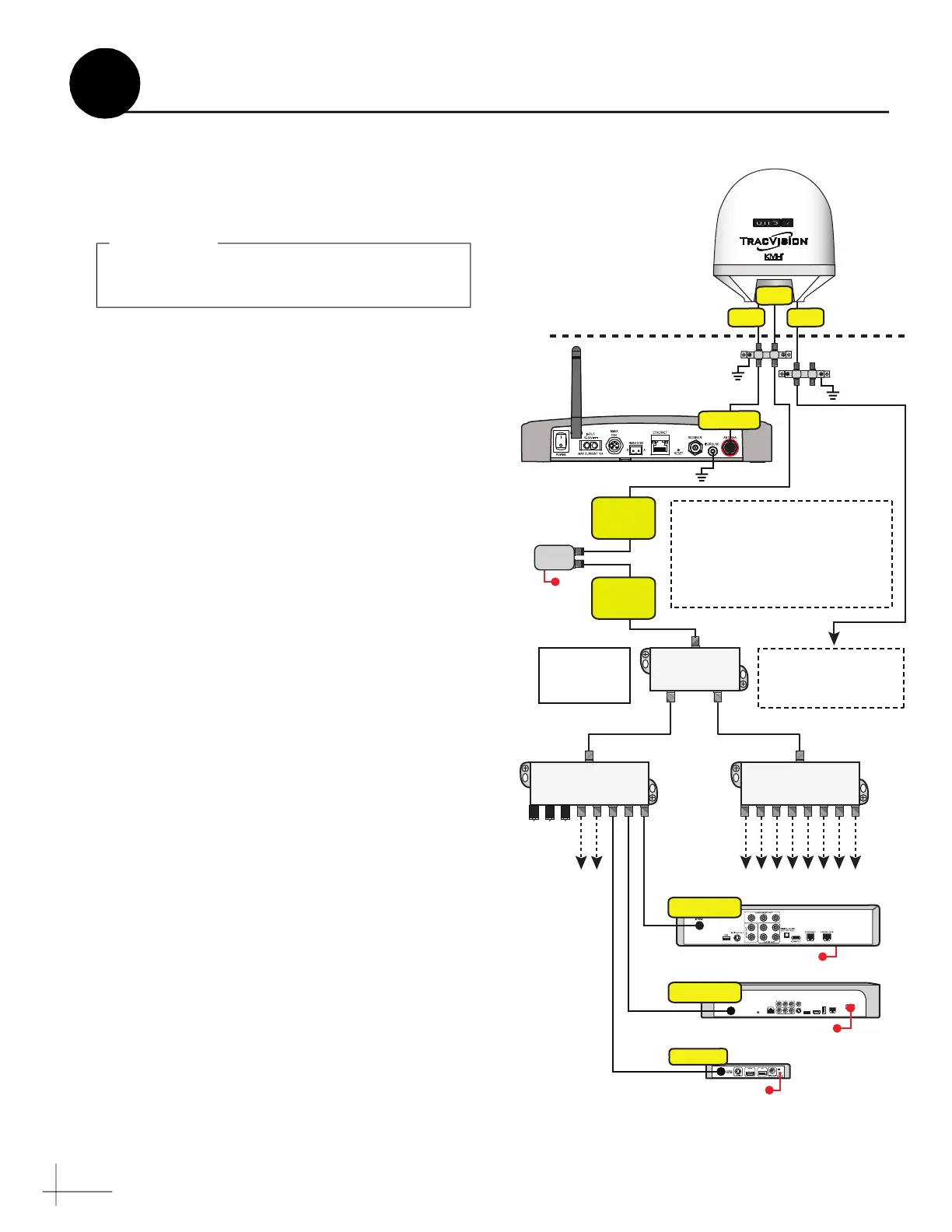

Figure 28: Wiring Up to 26 DIRECTV Receivers
SWM 2-way
Splitter
Maximum of
two splitters
per path
Deck
AC Power
SWM
Power
Inserter
TV-Hub
RF1
RF2
RF3
Terminate
unused
outputs
SWM 8-way
Splitter
SWM 8-way
Splitter
AC Power
SWM Receiver/DVR
Satellite In
Note: Connect any combination of receivers, DVRs, and Genie
clients that add up to 13 or fewer tuners on each RF cable
(RF2 and RF3). Only 3 Genie clients can be active at one time.
Genie DVR
Genie Client
Network
R
AUDIO OUT
L
PrPbY
VIDEO OUT S-VIDEO OUT
DIGITAL
AUDIO OUT
ETHERNET
SATELLITE IN 1
IR RECEIVE SATA HDMI PHONE JACK
POWER INPUT
USB
COMPONENT VIDEO OUT
AC Power
AC Power
Satellite In
Antenna
up to 13 tuners (26 total):
Each SWM receiver = 1 tuner
Each SWM DVR = 2 tuners
Each Genie DVR = 5 or 7 tuners
Each Genie client = 0 tuners
RF2 and RF3 each support
Antenna
Grounding
Block
POWER
TO SWM
SIGNAL
TO IRD
Connect SWM 2-,
4-, or 8-way splitters
to RF3, as necessary
Continued Wire the Receivers
