DISH Network and Bell TV Wiring
Follow these steps to connect most DISH
Network (non-Wally) or Bell TV receivers to the
TracVision system. (To connect Wally receivers,
refer to “Using Wally Receivers” on page 32
.)
Connecting 1 Receiver
Connect an RF cable from the “Receiver” jack on
the TV-Hub to the “Satellite In” jack on the
receiver (see Figure 29).
Connecting 2 Receivers
a. Connect an RF cable from the “Receiver” jack
on the TV-Hub to the “Antenna” jack on the
DC block splitter (supplied in kit).
b. Connect the “Primary” jack on the DC block
splitter to the “Satellite In” jack on the first
receiver.
c. Connect the “Secondary” jack on the splitter to
the “Satellite In” jack on the second receiver
(see Figure 30).
Connecting 3 or More Receivers
a. Connect an RF cable from the TV-Hub to the
DC block splitter and connect the DC block
splitter to the first receiver, as explained in
“Connecting 2 Receivers”.
b. Connect the “Secondary” jack on the splitter to
the “18V” port on a multiswitch (see
Figure 31). KVH offers a 4-output passive
multiswitch (KVH part no. 72-0676) and an
8-output active multiswitch (KVH part no.
72-0310).
c. Connect the multiswitch outputs to the
“Satellite In” jacks on the additional receivers.
Receivers must be DISH
Pro-compatible. Look for the
DISH Pro logo on the box.
IMPORTANT!
You must connect the SWM power inserter to
the antenna’s RF2 cable for all DISH/Bell
configurations. The SWM power inserter
supplies power to the antenna’s LNB.
IMPORTANT!

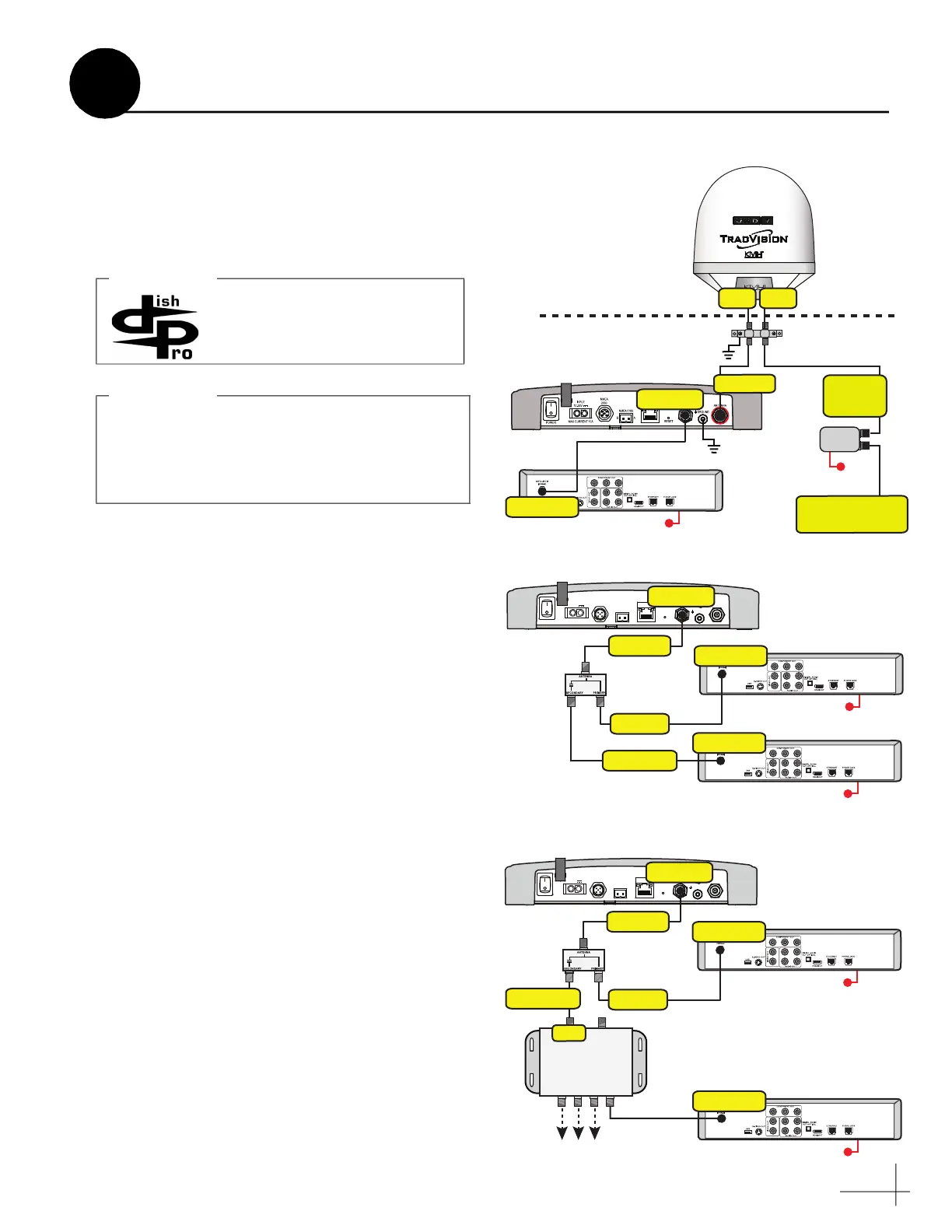

Figure 29: Wiring 1 DISH/Bell Receiver
DIRECTV U.S.
SWM Receivers
Deck
TV-Hub
Grounding
Block
RF1
Antenna
Antenna
AC Power
SWM
Power
Inserter
POWER
TO SWM
RF2
Receiver
AC Power
Satellite In
Receiver
Figure 30: Wiring 2 DISH/Bell Receivers
WI-FI
BA
LEN=1
DSWM
NMEA 0183
NMEA 2000
POWER
DC IN
MAX CURRENT 10A
10-30V
RESET
ETHERNET
RECEIVER
GROUND
ANTENNA
Receiver
AC Power
Satellite In
TV-Hub
Receiver
AC Power
Satellite In
Receiver
DC Block
Splitter
Antenna
Secondary
Primary
Figure 31: Wiring 3+ DISH/Bell Receivers
Receiver
AC Power
Satellite In
Connect up to 4 receivers
Terminate
unused
outputs
13V18V
Multiswitch
18V
WI-FI
BA
LEN=1
DSWM
NMEA 0183
NMEA 2000
POWER
DC IN
MAX CURRENT 10A
10-30V
RESET
ETHERNET
RECEIVER
GROUND
ANTENNA
Receiver
AC Power
Satellite In
TV-Hub
Receiver
DC Block
Splitter
Antenna
Secondary
Primary
Continued Wire the Receivers
12
