6. CYLINDER HEAD/CYLINDER/PISTON
6-7
Cylinder Head Bolts Installation
Install and tighten the cylinder head bolts
diagonally in 2 or 3 times.
Torque: 1.5_ 1.7kg-m
Install the spark plug.
Torque: 1.1_ 1.7kg-m
Engine Hood Installation
〈 SH10BA〉
Install the engine hood. (

6-5)
Install the spark plug cap. (

6-5)
Perform the following inspections after
installation:
• Compression test
• Abnormal engine noise
• Cylinder air leaks

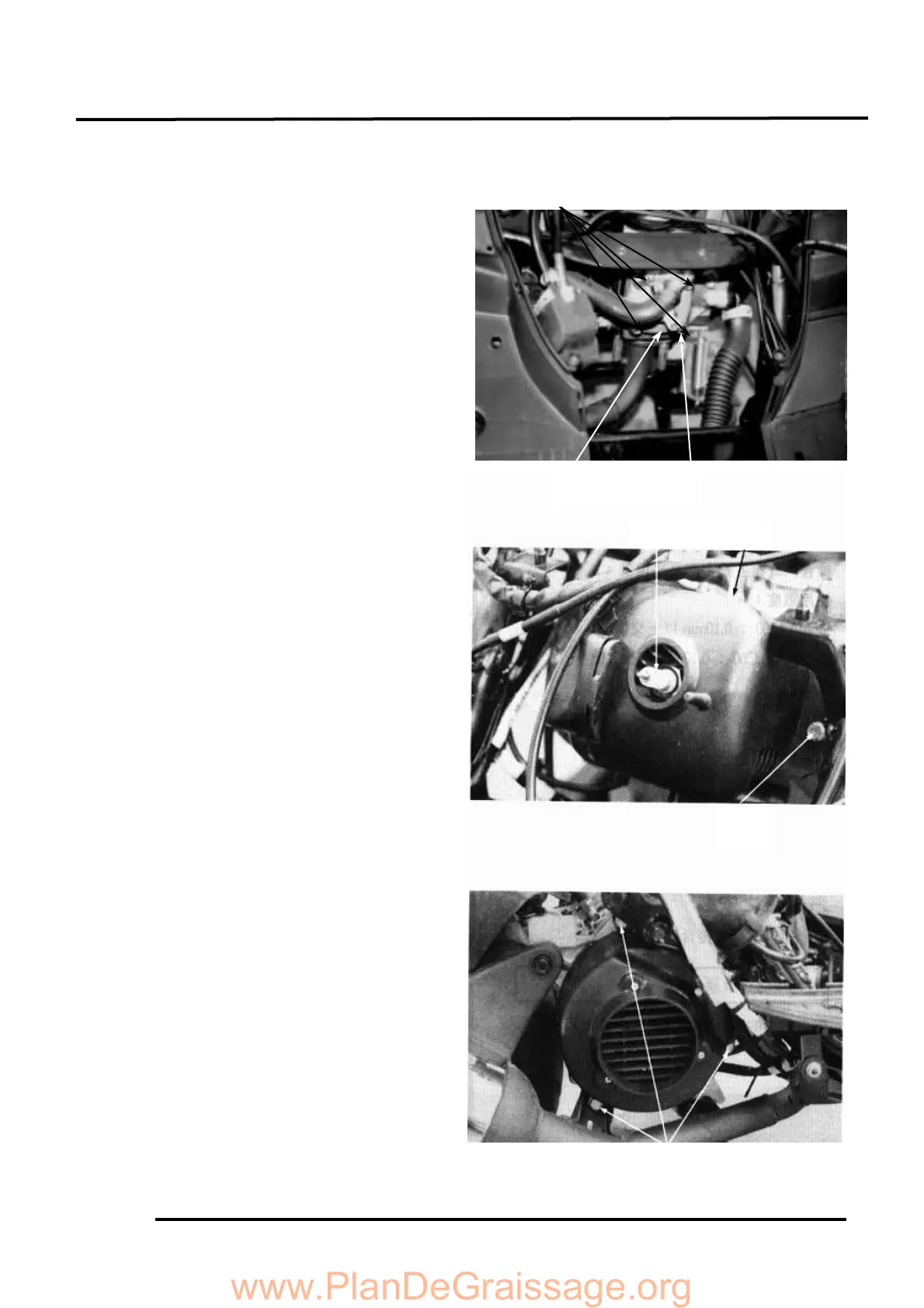

Cylinder head Bolts
Cylinder Head
Spark Plug
Spark Plug
Bolts
Bolts
Engine Hood
