6. CYLINDER HEAD/CYLINDER/PISTON
6-6

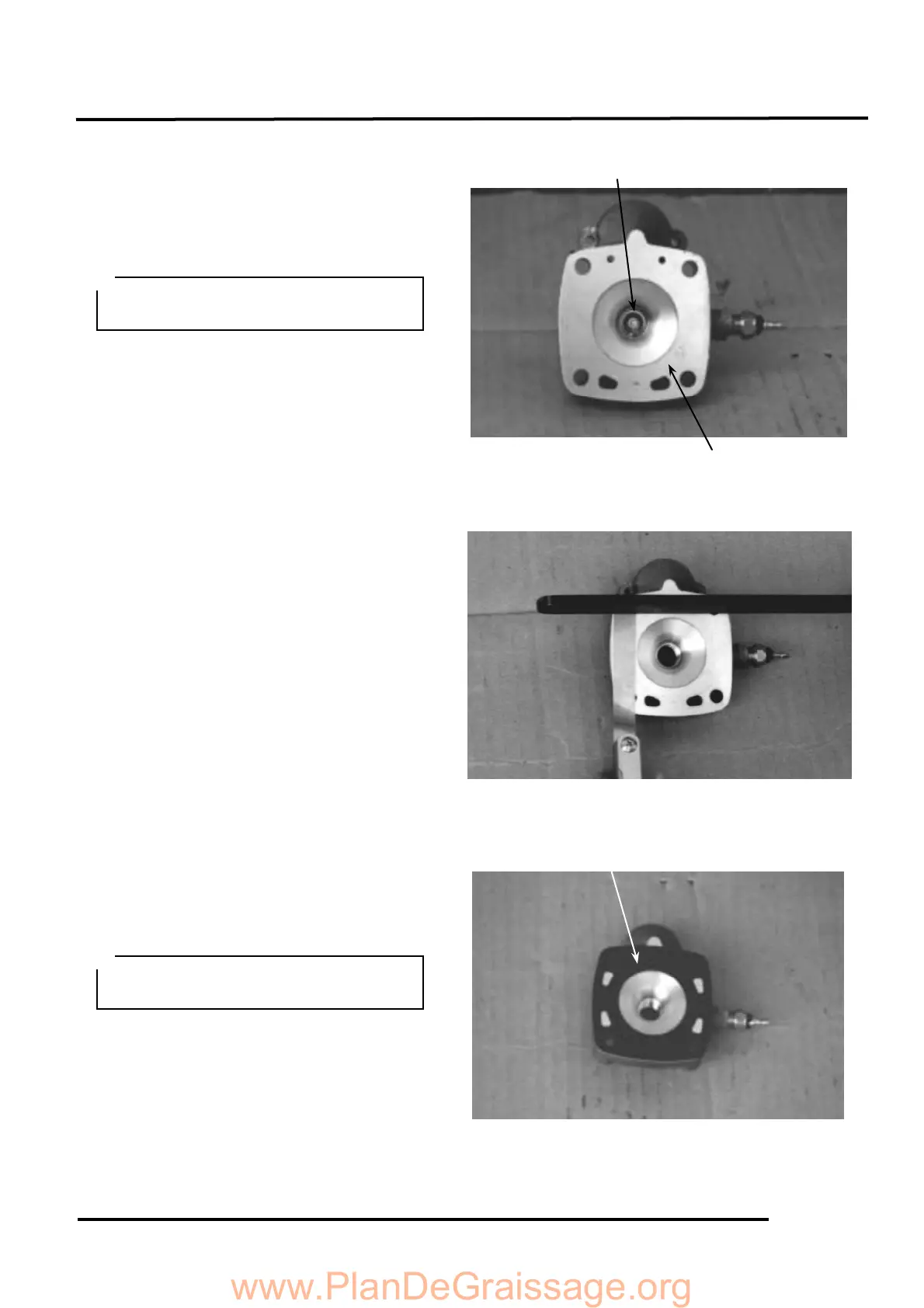

COMBUSTION CHAMBER
DECABONIZING
Remove the carbon deposits from the
combustion chamber
CYLINDER HEAD INSPECTION
Check the cylinder head for warpage with a
straight edge and feeler gauge.
Service Limit:
SH10BA: 0.10mm replace if over
SH10AA: 0.10mm replace if over
CYLINDER HEAD INSTALLATION
Install the cylinder head on the cylinder
properly.
Install a new cylinder head gasket onto the
cylinder.
Avoid damaging the combustion cham-
ber wall and cylinder mating surface.
＊
Be careful not to damage the mating
surfaces.
＊
Cylinder head Gasket
Combustion Chamber
Mating Surface
