10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-20
MXU 300/250

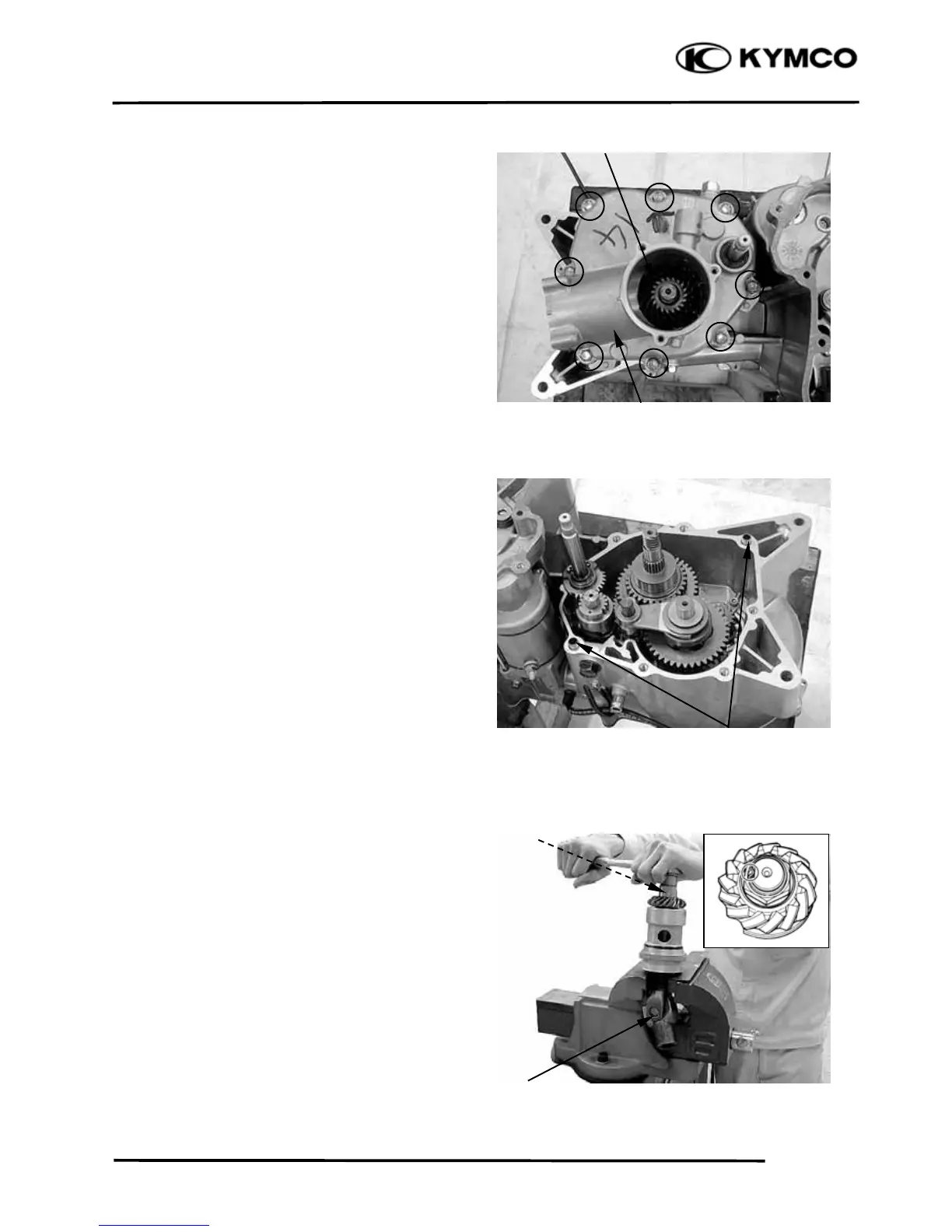

Remove the eight bolts, then remove the
transmission case cover, gasket and
secondary drive bevel gear/shim.
Remove the two dowel pins.
SECONDARY DRIVEN BEVEL GEAR
CASE DISASSEMBLY
Using a chisel, unlock the nut.
Fit the universal joint onto the driven bevel
gear shaft.
Remove the driven bevel gear shaft nut by
holding the universal joint with a vise.
Transmission Case Cover/Gaske
t
Secondary Drive Bevel Gear/Shi
m
Universal Join
t
Driven Bevel Gear Shaft Nu
t
Dowel Pins
