10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-23
MXU 300/250

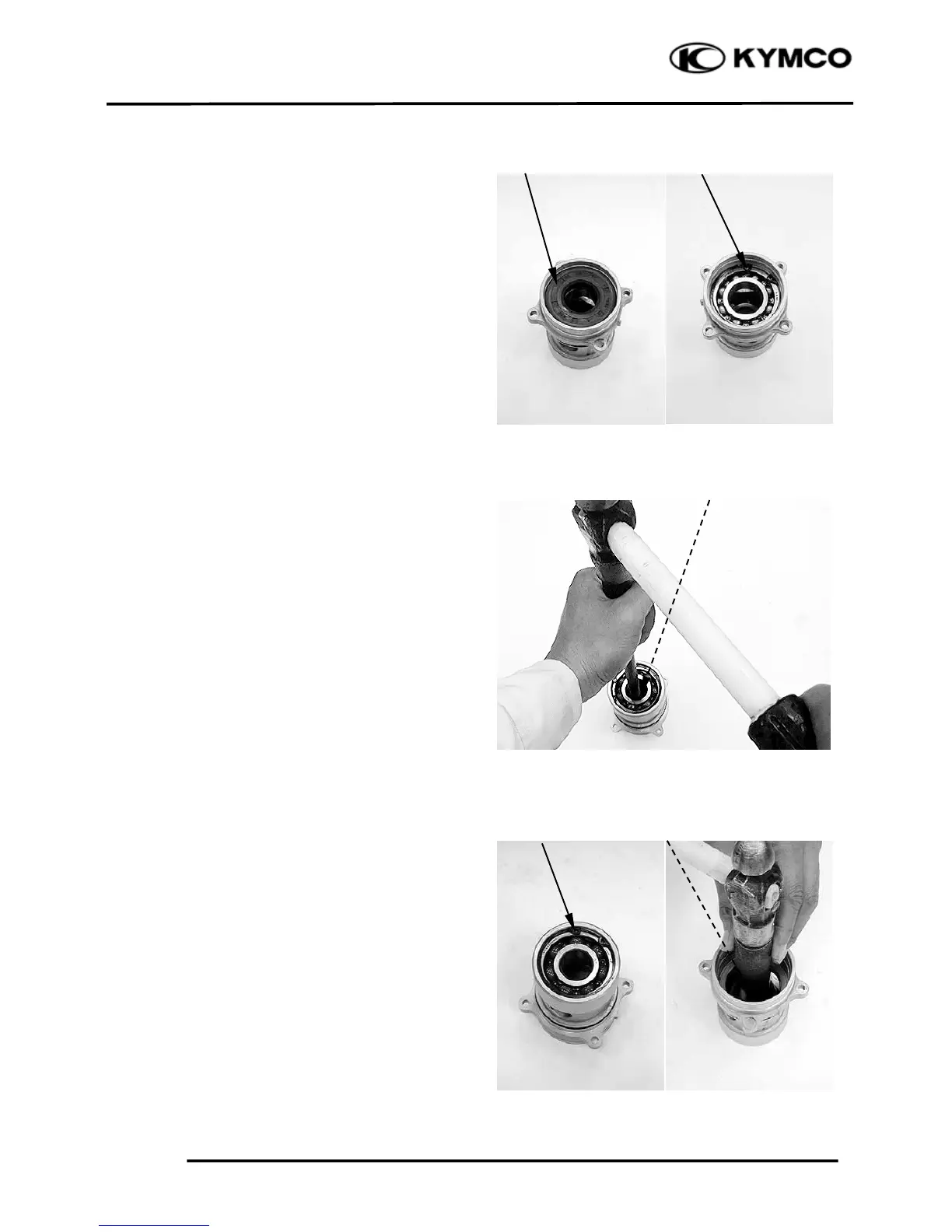

SECONDARY DRIVEN BEVEL GEAR
SHAFT CASE BEARING/OIL SEAL
REPLACEMENT
Remove the secondary driven bevel gear
shaft oil seal.
Remove the snap ring.
Remove the outer bearing.
Remove the snap ring.
Remove the inner bearing.
Oil Seal Snap Ring
Outer Bearing
Snap Ring Inner Bearing
